3 - 6 inch 304 316L Stainless Steel Sight Glass sanitary grade
3 - 6 inch 304 316L Stainless Steel Sight Glass sanitary grade
Brief
Sight Glass
Size: DN65 - DN150
Type: DC24V, NO.5 Battery
Gasket: EPDM, PTFE
Working Pressure: 10Bar
Specition
|
Product Name: |
3 to 6 INCH stainless steel 304 316L union type sight glass with lighting of no cable with sanitary grade |
|
Valve Body Material: |
SS304 / SS316L / 1.4301 / 1.4404 |
|
Seal Material: |
EPDM,PTFE,SILICON,etc |
|
Sight glass: |
Tempered glass |
|
Working Temperature: |
-10℃ to 150℃(with lighting: -10℃ to 80℃) |
|
Battery: |
#5 battery A/A 1.5V |
|
Available connection: |
Clamp, Thread, weld, Flange |
|
Available standard: |
DIN, SMS, 3A, ISO |
|
Certification: |
3A, PED, FDA, ISO |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
|
Structure: |
Without cable, portable |
|
Feature: |
With lighter |

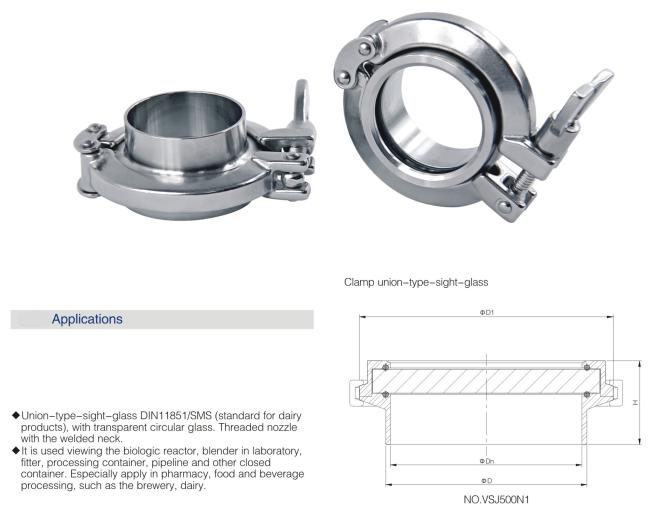

Applied range
A tubular sight-glass is comprised of stainless steel frame and glass.
Through it, operator canobserve the flowing of the liquid substance clearly and precisely in the fields of flood,cosmetic, pharmaceutical and fine chemicals industries
Design
Full bore Design
360degree viewing angle
Can be used in vertical or horizontal position
Call with light and wipper.
Instruction

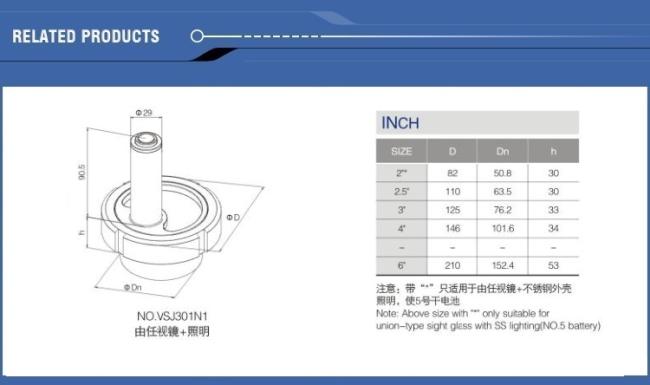

Drawing
Tag : Sight glass, Union type sight glass, Donjoy Sight Glass
