DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying
DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying
Specification
|
Product Name: |
DN25 - DN150 basic union type sight glass with tempered glass for medium conveying and observing |
|
Valve Body Material: |
SS304/SS316L/1.4301/1.4404 |
|
Seal Material: |
EPDM,PTFE,SILICON,etc |
|
Sight glass: |
tempered glass |
|
Max.temperature: |
120 degree |
|
Battery: |
use high light flashlight,rechargeable lithium battery(220V Battery for 18650); can use AC220V/110V power supply lighting. |
|
Availably connection: |
Clamp, Thread, weld, Flange |
|
Availably standard: |
DIN, SMS, 3A, ISO |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
|
Type: |
Basic model |
|
Function: |
For medium conveying and observing |
Quick Details
Sight Glass
Size:DN25-DN150,1"-6"
Type: DC24V,NO.5 Battery
Gasket: EPDM,PTFE
Working Pressure:10Bar
Application
A tubular sight-glass is comprised of stainless steel frame and glass.
Through it, operator canobserve the flowing of the liquid substance clearly and precisely in the fields of flood,cosmetic, pharmaceutical and fine chemicals industries
Function
For medium conveying and observing
Structure
Basic structure (lighter is optional)
Feature
Full bore Design
360degree viewing angle
Can be used in vertical or horizontal position
Call with light and wipper

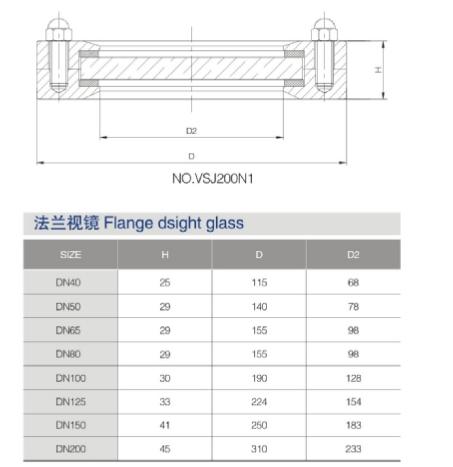

Drawing

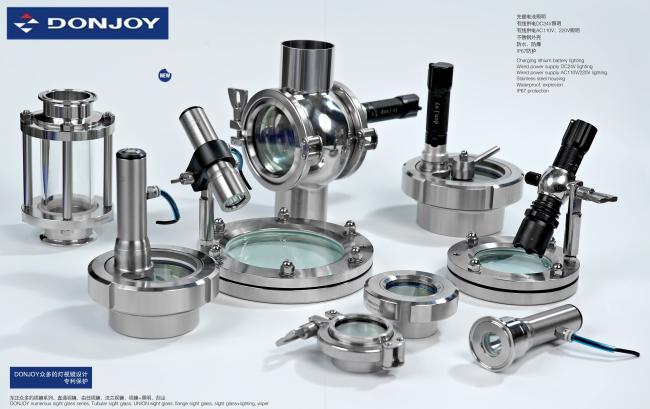

Display
