Sanitary Sight Glass Aseptic Zero Dead Conner Stainless Steel Sight Glass With Protective Sleeve
Sanitary sight glass aseptic zero dead conner with protective sleeve
Quick Detail
Aseptic no dead conner Sight Glass
Size:1" - 4", DN25 - DN100
Gasket: EPDM,PTFE
Working Pressure: 10 Bar
Specification
|
Product Name: |
Sanitary level aseptic zero dead conner sight glass with protective sleeve for 360° observation |
|
Valve Body Material: |
SS304/SS316L/1.4301/1.4404 |
|
Seal Material: |
EPDM,PTFE,SILICON,etc |
|
Sight glass: |
tempered glass |
|
Max.temperature: |
120 degree |
|
Working pressure |
5 to 10 bar depending on sight glass |
|
Available connection: |
Clamp, Thread, weld, Flange |
|
Available standard: |
DIN, SMS, 3A, ISO |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
|
Outer design: |
With protective cover |
|
Installation: |
Could be installed on any side |
|
Packaging Details: |
Plywood case or customerized. Or as per the request of customers |
|
Delivery details: |
10-20 days |
Application
The tempered tubular sight-glass is comprised of stainless steel frame and glass.Through it, operator canobserve the flowing of the liquid substance clearly and precisely in the fields of flood,cosmetic, pharmaceutical and fine chemicals industries
Design and feature
Full bore Design
360 degree viewing angle
Can be used in vertical or horizontal position
Gasket material is in accordance with FDA 177.2600
Could be with light and wipper.

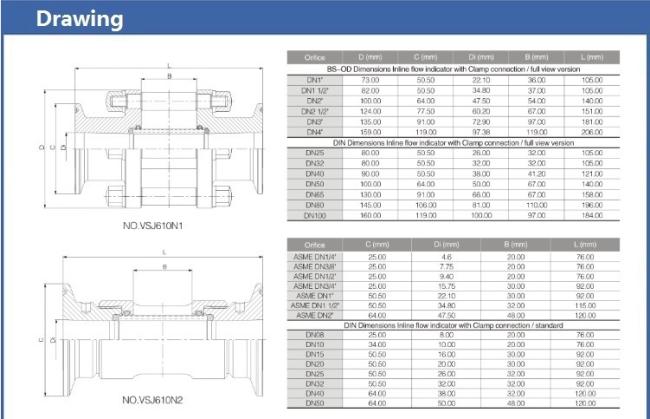

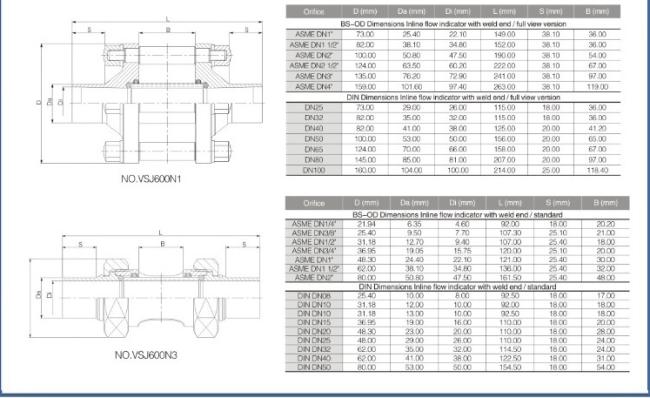

Drawing

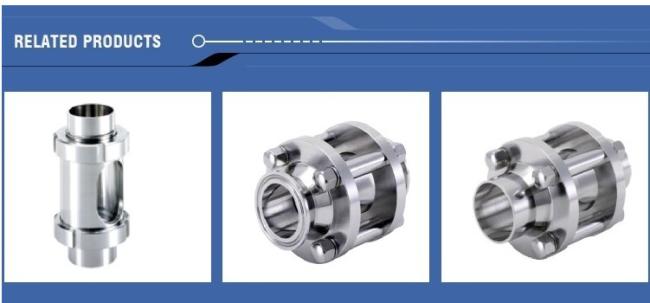

Display
