Sanitary Grade 12 inch double acting Stainless steel 316 Pneumatic Butterfly Valve For Powder

Sanitary Grade 12 inch double acting Stainless steel 316 Pneumatic Butterfly Valve For Powder

Specifications

Description

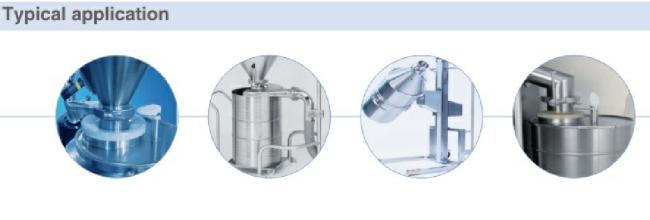

The butterfly valve is mainly designed and used for all kinds of container equipment for powder,

granule, capsule etc.

This butterfly valve have characteristics, which the normal butterfly valve doesn't have, like small

torque,no much friction.when seal open and close,long life,no seal powder fall off,short valve

body,bear pressure can be adjusted

Working principle

To open valve, the seal will lose efficacy. But there will be no leaking.

The gas in the valve will be sealed once valve is closed, remaining no friction in sealing parts.

Technical advantages

To open and close valve, there won't be friction occurred in the sealing part.

Thus, there's no fear of contamination generated by friction of sealing part.

Material

The material connected with others: AISI 316L / 1.4404

The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600

Internal surface finish: Ra ≤ 0.8μm

External surface finish: CNC fine machining

Options

Gasket: NBR / MVQ / FPM

Pneumatic actuator of double acting

Inductive position sensor

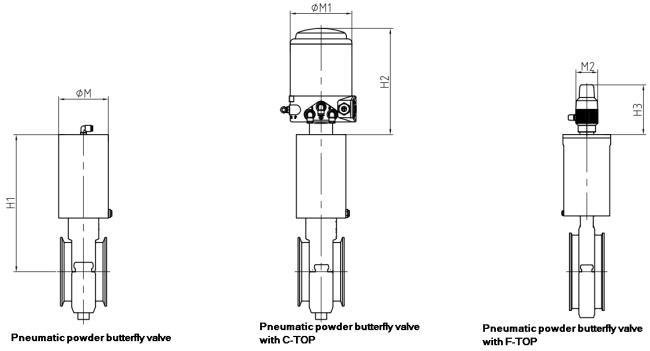

C - TOP control head

Position sensor

Handle selection

Two-position handle;

three-position handle;

four-position pull handle;

multi-position plastic handle;

multi-position stainless steel handle;

Connection
SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.

Packaging Details

Bubble pack for each valve.

Outside packing are carton or plywood cases.

Or as per the request of customers.

Delivery details

Usually within 20 days after receiving T/T down payment.

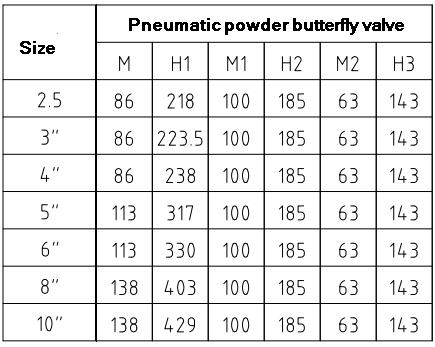

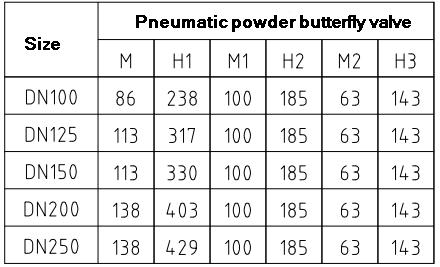

Product display
