Filling Sanitary Diaphragm Valve with Stainless steel actuator
Filling Sanitary Diaphragm Valve with Stainless steel actuator
Specifications
|
|

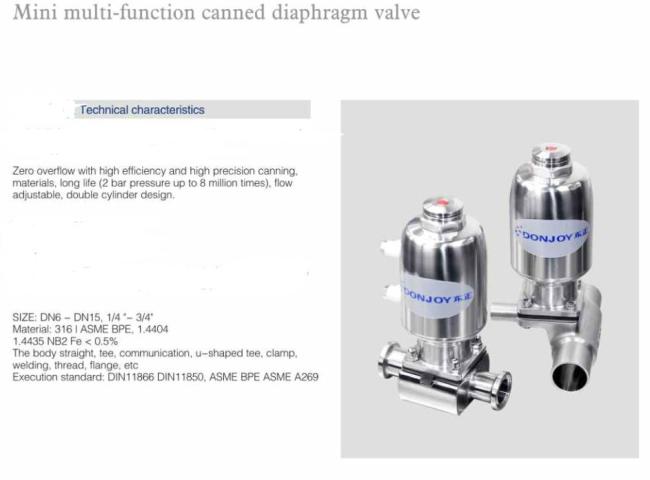

Mini multi-function canned Diaphragm Valve with Stainless steel actuator |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
Single silicone gasket/ Adhesive PTFE+EPDM/Two pieces |
|
MaxWorking Pressure: |
8 Bar |
|
Max.WorkingTemperature: |
150 degree C |
|
Availably size: |
1''-4'', DN20-DN100 |
|
Availably connection: |
Clamp/weld/thread/special connection |
|
Availably standard: |
3A/BPE/DIN/ISO/IDF |
|
Operated: |
Manual,Pneumatic |
|
Availably structure: |
Straight, tee, U-type, tank bottom |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Structure of valve body: |
Vertical or horizontal |
|
Configuration: |
Flexible with various valve seat |
Description
Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner/Process Controller (IL-TOP)
2. Diaphragm valve with Control Unit (C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
10. Body: Casting / Forging
Operation mode
Manual and Pneumatic operation
Available connection
Clamp / weld / thread / special connection
Control
Smart valve positioner / C-TOP control / position sensor
Material of seal ring
Single silicone gasket / Adhesive PTFE + EPDM / Two pieces PTFE + EPDM
Packaging
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery
Usually within 20 days after receiving T/T down payment.
Product display
Tag : filling diaphragm valves, Pneumatic diaphragm valve, Filling valve
