316L Plastic manual 2 way Sanitary Diaphragm Valve with EPDM PTFE

Applications
Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.

The valve is excellent for flow control as well as open/close control.
The diaphragm valves are better in feature of flow in comparison with other valves.
It is eaiser to clean up and better to process the substance with particles.
The phenomenon of air pocket is rare during application of flow control.

Specifications


Valve Body:
Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the hightemperature forging provide, through extrusion blank shape change, through the forging after bodydendity higher, the structure is more uniform, no sand hole and other impurities. Then through theprocessing center carry on the high precision machining.

Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to let thewhole body wax mold surface form a layer of strong ceramic. Melt wax modl,then into the melting of thestainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up.Casting size is very accurate, the outward apperance is smmoth, clean and tidy.

SS and Plastic Actuator




Product drawing (hand wheel)





Product drawing (pneumatic actuator)

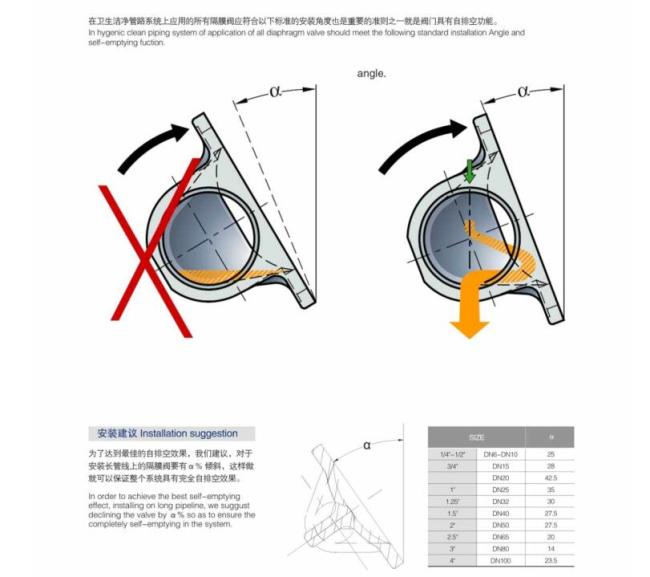

Self emptying installation angle

Working principles


Product display
