316L Stainless Steel Hygienic Tank Diaphragm Valve For Pharmacy

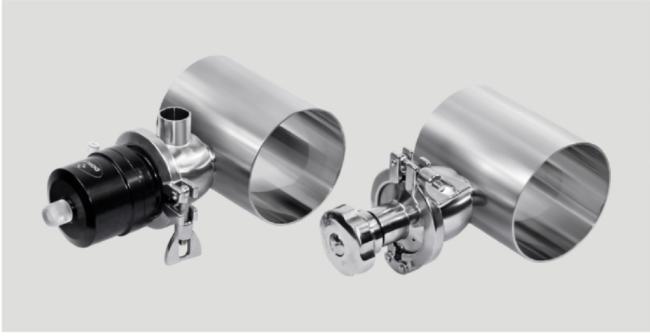

SS316L stainless steel hygienic tank bottom diaphragm valve

Radial diaphragm valve are mainly manual and pneumatic operations, Inside body finished Ra≤ 0.5μm, in order to meet the requirement of biophamaceutical industry.


Specifications


●Mainly used in pharmaceutical, biotechnology, health care, cosmetics and food industry etc.
●In the pharmaceutical industry, the valve can be used as process control valves, dosing valves, sampling valves and sterile drain valve, etc.
●In the food industry, the valve is often used as the guiding device, such as sampling valve, dosing valve (such as adding CO2/Nitrogen to beer, add seasoning to drink). Radial diaphragm valves, mainly manual and pneumatic valve body, internal polished finish Ra is less than or equal to 0.5um, to meet the requirements of bio pharmaceutical industry.
●Size:3/4"-2.5",DN20-DN65
●Working temperature:-10℃-120℃(EPDM/Silcon)
●Max.Pressure:6bar

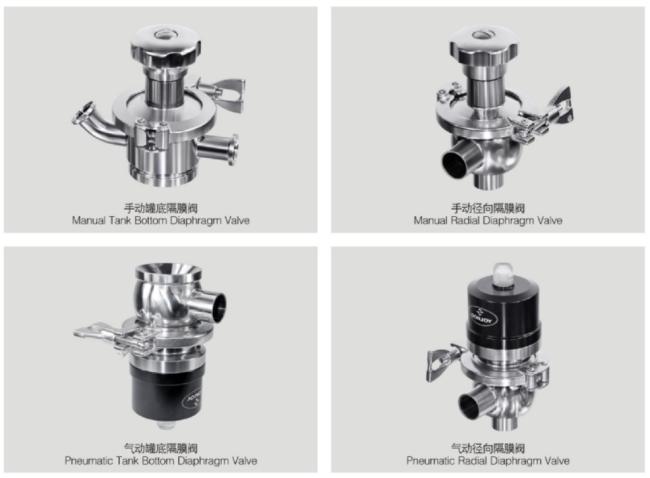

●operation:Manual / pneumatic interchangeable
●Operating Pressure:5bar-6bar
●Outlet connection: Clamp, weld,Special interface
●New diaphragm design
●Maintenance is simple, safe, easy to operate
●Self emptying function
●Dead angle minimization
●Excellent value KV
●CIP/SIP Sterilizing and cleaning

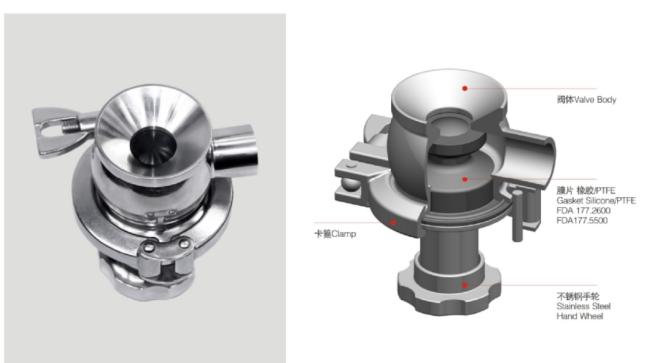

Product drawing
