DN125 Tank Union Type Stainless Steel Sight Glass With Light And Wipper

Price Negotiable

Price: Negotiable

MOQ: Negotiation

Delivery Time: 10-30 working days

Brand: DONJOY

Product Description

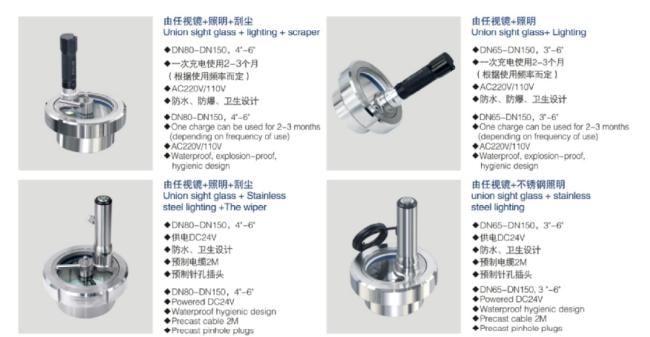

DN125 Tank Union type Stainless Steel Sight Glass with light and wipper

Quick Detail

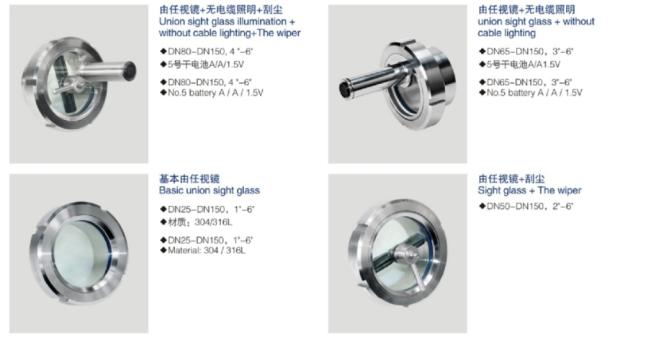

Basic union sight glass

Long type union sight glass

Size:1.5"-12" ,DN40- DN300

Type: Manual operation

Gasket: EPDM / PTFE according FDA 177.1600

Max pressure :10bar

Max Temperature:-10°C to 120°C

Assemble flange with glass by using hexagon socket boltes

Glass: Tempered glass

LIght : Hight light, White cold light source/ waterproof, explosion-proof design

Cabel power supply AC110V-220V, DC24V

Wireless power supply, one charging can use 2-3 months(Depending on the frequency )

Specification

Product Name:	6" Flanged stainless steel sight glass for phamaceutical tank with SS316L
Valve Body Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	EPDM,PTFE,SILICON,etc
Sight glass:	tempered glass
Max.temperature:	-10 to 120 degree
Gasket	NBR, EPDM, FPM in accordance with FDA 177.2600
Available connection:	Clamp, Thread, weld, Flange
Available standard:	DIN, SMS, 3A, ISO
Certification:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Feature:	For full angle observation
Advantage:	Precise observation on flow
Packaging Details:	Plywood case or customerized. Or as per the request of customers
Delivery details:	10-20 days

Application
sight glass is comprised of stainless steel fram and glass, Through it, operator can observe the flowing of the liquid substance clearly and precisely in the field of foods, cosmetic, pharmaceutical and fine chemicals industries.

Sight Glass selection
