1.5" Tri Clamp Tubular Stainless Steel Sight Glass

Price Negotiable

Price: Negotiable

MOQ: Negotiation

Delivery Time: 10-30 working days

Brand: DONJOY

Product Description

1.5" Tri clamp Tubular stainless steel sight glass

Quick Detail

Sight glass, Tube sight glass

Size:1/2"-6" ,DN10- DN150

Type: Manual operation

Gasket: EPDM /NBR, FPME according FDA 177.1600

Max pressure :10bar

Max Temperature:-10°C to 120°C

Assemble flange with glass by using hexagon socket boltes

Glass: Tempered glass

Protective sleeve: AISI304

Surface Treatment: CNS Lathe

Specification

Product Name:	1.5" Tri clamp Tubular stainless steel sight glass
Valve Body Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	EPDM,FPM,SILICON,etc
Sight glass:	tempered glass
Max.temperature:	-10 to 120 degree
Gasket	NBR, EPDM, FPM in accordance with FDA 177.2600
Available connection:	Clamp, Thread, weld, Flange
Available standard:	DIN, SMS, 3A, ISO
Certification:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Feature:	For full angle observation
Advantage:	Precise observation on flow
Packaging Details:	Plywood case or customerized. Or as per the request of customers
Delivery details:	10-20 days

Application
A tubular sight glass is comprised of stianless steel fram and glass, through it, operator can observe the flowing of the liquid substance clearly and precisely in the fields of foods, comestic, pharmaceutical and fine chemicals industries.

Features
Full bore Design
360degree viewing angle
Can be used in vertical or horizontal position

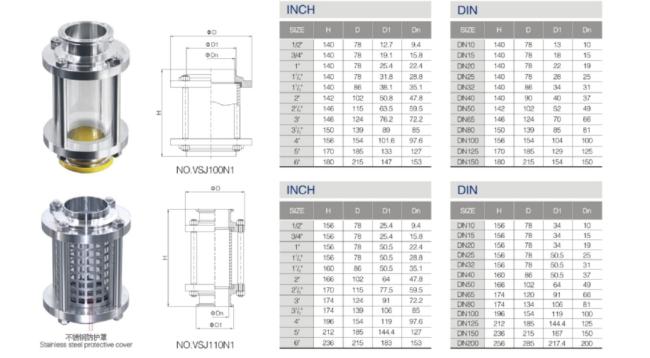

Drawing of sight glass
