High Capacity Electric Truck Battery For 6 Meter Business Bus , 367.2V 200ah Deep Cycle Battery
High Capacity 367.2V 200Ah Electric Bus Batteries For 6 meters Business Purpose
| Item | Tech Data | Remark | |
| Rated voltage/Capacity | 367.2V/200Ah | ||
| Voltage Working Range | 306V---428.4V | ||
| Total energy | 77.41KWh | ||
| Configuration | 16P 102S | ||
|
Charge
|
Standard Charge Current | 100A | |
| Max Instantaneous Current | 200A | 10S | |
| Continuous Current | 150A | 10min | |
|
Discharge
|
Standard Discharge Current | 100A | |
| Max Instantaneous Current | 300A | 10S | |
| Continuous Current | 200A | 10min | |
| Working Temp. Range | Discharge: -20℃~45℃ | ||
| Charge: 0℃~45℃ | |||
| Storage Temperature | -20～45℃ | ||
| Relative Humidity | 5%~95% | ||
| Resistance | >20MΩ | ||
| Protection Level | IP56 | ||
| Cooling Method | Natural cooling | ||
Features:
1. Stable charge & discharge performance at different temperatures.
2.NCM cells can provide higher energy density, higher capacity and better rate performance.
3. Environmentally-friendly, without any hazardous and noxious substances.
4. Small in volume and light in weight
5.No memory effect
6. Wide temperature range
7. With a BMS, voltage of each cell can be detected, each cell can be protected against overcharge, overvoltage, short circuit and overheat, so the battery can be charged in balance.

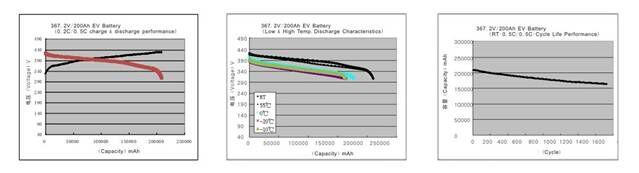

Battery pack performance :

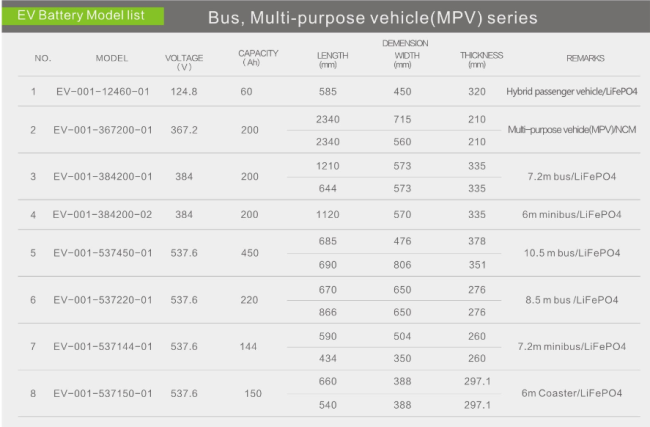

Relative application product list:
