3-8V8 Duct Collector Remote Pilot Valve Enclosures Controller

Price Negotiable

Price: Negotiation

MOQ: 1 pc

Delivery Time: 4-7 working days

Brand: BRANDO

Product Description

3-8V8 Duct Collector Remote Pilot Valve Enclosures Controller

Diecast aluminum enclosures for Goyen RCA3D pilot valves. The enclosures for non-hazardous locations offer reliable protection for your pilot valves and remote actuators. The enclosures were specifically designed for convenient piloting of dust collector cleaning system pulse jet valves. Ensure device is disconnected from power before opening the enclosure. For reliable operation, ensure supply voltage is within -10% and +15% of rated solenoid voltage.

Ordering Code of RCA3D Pilot Valve Enclosure:

Video of 3-8V8 Pilot Valve Enclosure:

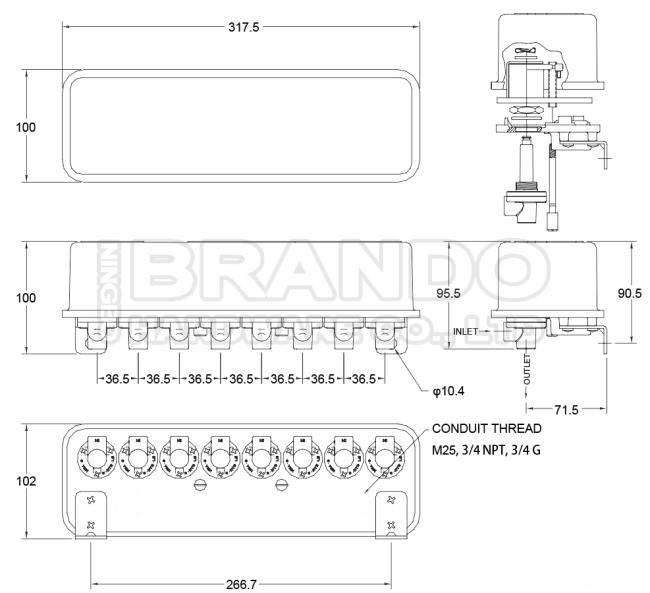

Main Dimension of 3-8V Pilot Valve Enclosure:

Technical Data of RCA3D Solenoid Pilot Valve:

Model	Port Size	Coil Type	Voltage	Power
RCA3D0-330 (Old RCA3D2-T-QT/1392B)	1/8'' NPT	Screw / Spade	200/240V 50/60Hz	17.4/22.6VA
RCA3D0-331 (Old RCA3D2-T-QT/1004B)			100/120V 50/60Hz	15.2/149.7VA
RCA3D0-332			24V 50/60Hz	23.1/17.2VA
RCA3D0-333			240V DC	24W
RCA3D0-334			110V DC	24W
RCA3D0-335			48V DC	20W
RCA3D0-336 (Old RCA3D2-T-QT/764B)			24V DC	20W
RCA3D0-337 (Old RCA3D2-T-QT/1295B)			12V DC	20W
RCA3D1-330 (Old RCA3D2-T-QT/880B)	1/8'' BSPP		200/240V 50/60Hz	17.4/22.6VA
RCA3D1-331 (Old RCA3D2-T-QT/869B)			100/120V 50/60Hz	15.2/149.7VA
RCA3D1-332 (Old RCA3D2-T-QT/1117B)			24V 50/60Hz	23.1/17.2VA
RCA3D1-333			240V DC	24W
RCA3D1-334			110V DC	24W
RCA3D1-335			48V DC	20W
RCA3D1-336 (Old RCA3D2-T-QT/1051B)			24V DC	20W
RCA3D1-337			12V DC	20W
