1.6 MPa Stainless Steel 316 Solenoid Valve For Air Water Gas 220V 110V 24V 3/8'' to 2''

1.6 MPa Stainless Steel 316 Solenoid Valve For Air Water Gas 220V 110V 24V 3/8'' to 2''

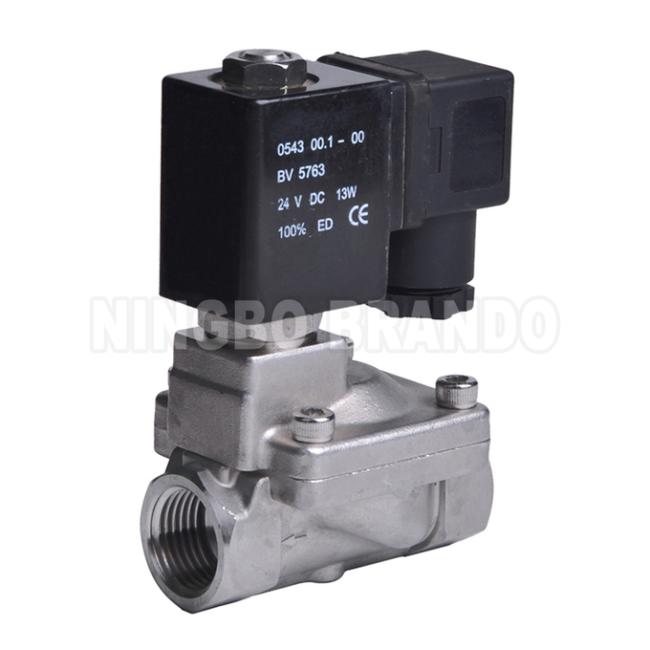

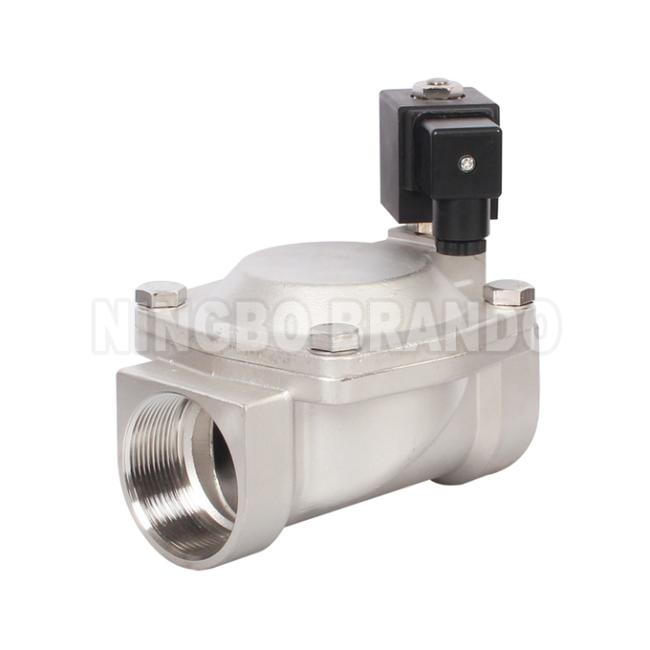

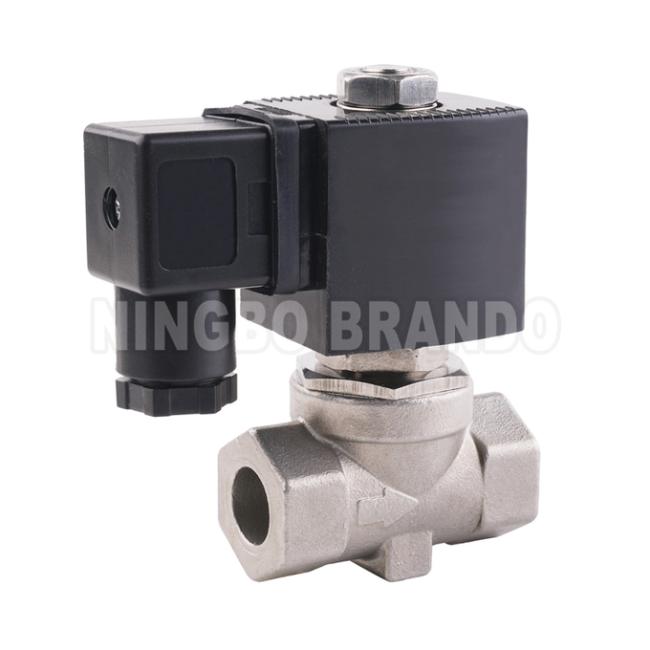

This is a 316 stainless steel solenoid valve, 1/4'' to 2'' female threaded port size, 10 to 50mm orifice size, 2 way normally closed, diaphragm pilot operated, 0.3 to 16 bar working pressure, standard NBR diaphragm, can be customized as EPDM or FKM diaphragm to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.

Technical Data:

Main Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of
applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.

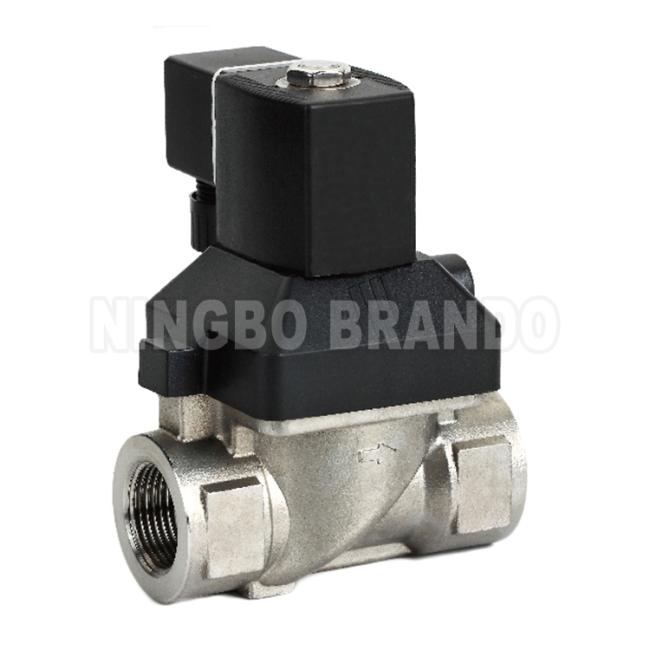

Similar Valves:

Max 16 bar	Max 16 bar	Max 16 bar	Max 10 bar
