3/4'' 2 Way Normally Open PA66 Nylon Plastic Solenoid Valve 12V 24V 220V

These plastic solenoid valves are an affortable but amazingly robust and dependable choice for a variety of water, air, and other general purpose liquid applications. Media being controlled must be compatible with PA66 Nylon plastic, NBR rubber, and Stainless Steel. These plastic solenoid valves are semi-direct acting, making them suitable for many low differential pressure applications where traditional, pilot operated, solenoid valves may not perform reliably.

Product Features:

1. Valve Type: 2 Way Normally Open
2. Service Media: Air, Gas, Liquid, Water, Vacuum
3. Operation Model: Direct Lift Diaphragm
4. Body Material: PA66 Nylon Plastic
5. Seal Material: NBR (Buna) Diaphragm & Plunger Tip
6. Coil Power: DC: 20W, 32W, 38W ; AC: 20VA, 30VA
7. Coil Class: H Class IP 65
8. Coil Duty: 100% ED (Continuous Duty)
9. Operating Pressure: Vacuum 0 PSI to 90 PSI
10. Operating Temperature: 0 to 50 °C or 32 to 122 °F
11. Port Size: 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2''; Thread Port (G, NPT).
12. Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC
13. Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%
14.Electrical Connection: DIN 43650A Connector

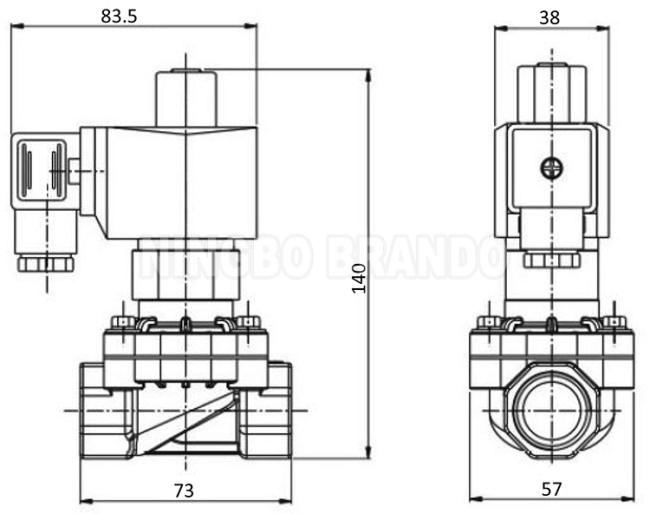

Dimension & Data of PA66 Nylon Plastic Solenoid Valve:

Brando Factory Production of Solenoid Valves:

More Plastic Solenoid Valves for you to choose:

1. According to Body Material: Brass Solenoid Valve, Stainless Steel Solenoid Valve, Plastic Solenoid Valve

2. According to Valve Operation: Direct Acting Solenoid Valve, Semi Direct Acting Solenoid Valve, Pilot Operated Diaphragm Valve, Pilot Operated Piston Valve.
