Dual Head DIN43650A Solenoid Valve Connector With Molded Cable
Dual Head DIN43650A Solenoid Valve Connector With Molded Cable
BRANDO produces DIN 43650 connectors and other special style connectors. DIN 43650 connectors are commonly used to supply power to solenoid valves, which widely used in Hydraulic, Pneumatic, Electrical Appliance industry, etc.
Features:
1. Wide range of DIN43650 industry standard form A, B, C types, special on request
2. Protection class: IP65, IP67
3. Multiple connector circuits specifications for optional, LED; LED/VDR; Rectifier
4. A variety shell color: black, brown and transparent
Technical Data:
|
DIN Type
|
DIN43650A
|
|
Contact Distance
|
18mm
|
|
First Head Pole Number
|
2 Poles + Ground
|
|
Second Head Pole Number
|
3 Poles + Ground
|
|
Max Current
|
10A
|
|
Contact Resistance
|
≤5mΩ
|
|
Screw
|
M3x30mm
|
|
Max Conductor Size
|
3x1.5mm²
|
|
Protection Class
|
IP67
|
|
Working Voltage
|
AC, DC
|
|
Head Distance
|
15cm (can be customized)
|
|
Cable Jacket Material
|
PVC (Standard), PUR (Optional)
|
|
Main Cable Length
|
100cm (can be customized)
|

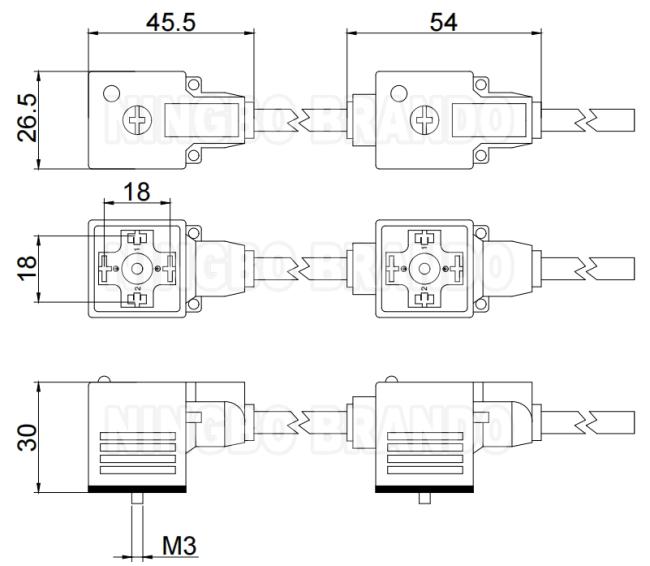

Main Dimension:
Our Production:
