FDF3A08 5/16'' Sanhua Type Refrigeration Solenoid Valve For Air Conditioner
FDF3A08 5/16'' Sanhua Type Refrigeration Solenoid Valve For Air Conditioner
FDF series solenoid valves are direct operated or pilot operated solenoid valves, mainly used in refrigerant control of various devices such as refrigerating and freezing systems, air conditioners and heat pumps.
* Applicable for all common HCFC, HFC refrigerants such as: R22, R134a, R404A, R407C, R410A, R507, R407A/F, R448A/R449A, R452A, R450A/R513A)
* Applicable medium temperature: -30ºC to +120ºC;
* Applicable ambient temperature: -30ºC to +50ºC;
* Relative humidity: below 95%
* Installation position:
1. Liquid, suction and discharge line
2. Coil upwards, coil axis ± 15º tolerance versus vertical axis
3. Flow direction corresponds to the arrow
Technical Data of FDF NC Series Solenoid Valve:
|
Model
|
FDF2A94
|
FDF2.5A06
|
FDF3A08
|
FDF4A10
|
FDF6A58
|
FDF8A21
|
FDF11A05
|
FDF13A07
|
|
Actuation
|
Direct
|
Pilot
|
||||||
|
Kv(m³/h)
|
0.08
|
0.2
|
0.26
|
0.3
|
0.56
|
1.29
|
2.4
|
3.44
|
|
Max. OPD
(MPa)
|
3.4
|
3.4
|
3.4
|
3.4
|
3.4
|
2.8
|
2.8
|
2.8
|
|
Min. OPD (MPa)
|
0
|
0.01
|
0.01
|
0.01
|
0.01
|
0.01
|
0.02
|
0.02
|
|
MOP (MPa)
|
4.5
|
|||||||
|
Normal Position
|
NC
|
|||||||
|
Tube OD (inch)
|
1/4''
|
1/4''
|
5/16''
|
1/4''
|
5/16''
|
3/8''
|
1/2''
|
5/8''
|
|
Tube OD (mm)
|
6.35
|
6.34
|
7.94
|
6.35
|
7.94
|
9.52
|
12.7
|
15.88
|

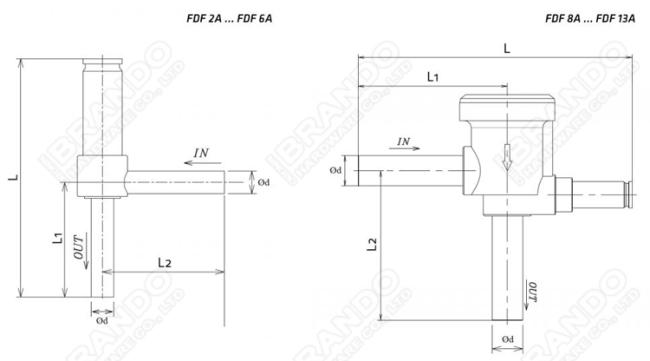

Main Dimension of FDF NC Series Solenoid Valve:
|
Model
|
Measurement (mm)
|
||
|
L
|
L1
|
L2
|
|
|
FDF 2A 94
|
67
|
32
|
34
|
|
FDF 2.5A 08
|
85
|
38
|
38
|
|
FDF 3A 08
|
81
|
35
|
36
|
|
FDF 4A 10
|
81
|
35
|
38
|
|
FDF 6A 58
|
81
|
35
|
36
|
|
FDF 8A 21
|
114
|
62
|
62
|
|
FDF 11A 16
|
113
|
61
|
61
|
|
FDF 13A 12
|
114
|
62
|
62
|

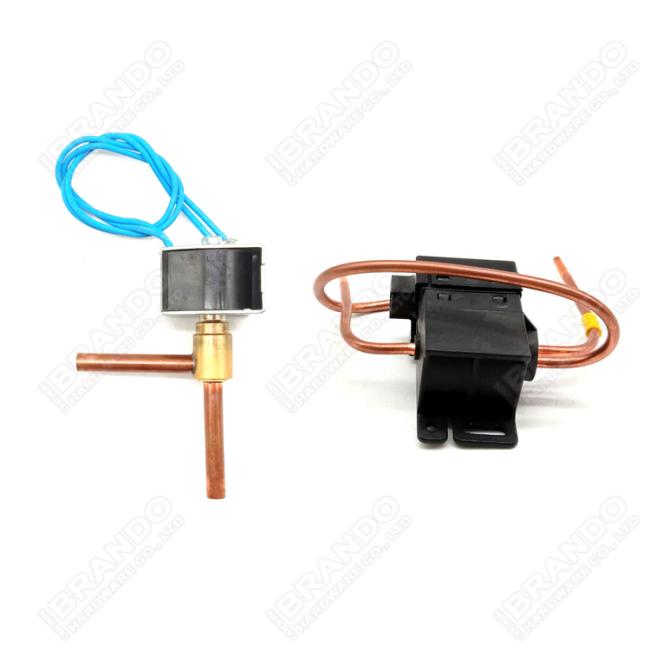

More Refrigeration Solenoid Valves for you to choose:
 |
 |
 |
| Danfoss Type Solenoid Valve | Castel Type Solenoid Valve | Sanhua Type Solenoid Valve |

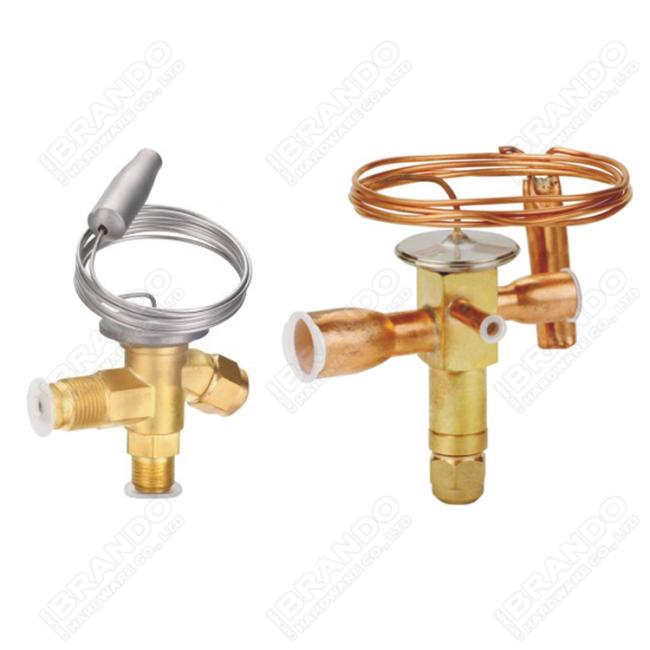

More Expansion Valves for you to choose:
 |
 |
 |
