Danfoss Type TGE Thermostatic Expansion Valve TGE 10 TGE 20 TGE 40

Name: Danfoss Type TGE Thermostatic Expansion Valve TGE 10 TGE 20 TGE 40
Brand: Ningbo Brando Hardware Co., Ltd

Price Negotiable

Price: Negotiation

MOQ: 50pcs

Delivery Time: 10 working days

Brand: BRANDO

Product Description

Danfoss Type TGE Thermostatic Expansion Valve TGE 10 TGE 20 TGE 40

TGE is a dedicated designed series of thermostatic expansion valves for all standard refrigerants. The tight design meets the environmental demands for today and future.

Applications
1. Water chillers
2. Bus A/C
3. Rooftop units
4. Heat pumps
5. Refrigerated containers
6. Others A/C and refrigeration system

Technical Data:

Valve Type	Equalization	Capillary Tube	Orifice No	Connection (inlet x outlet)	Equalization Connection

TGE 10	External	1.5m	3	3/8'' x 5/8'' ODF	1/4'' ODF
			3, 6	1/2'' x 5/8'' ODF
			4, 6	1/2'' x 7/8'' ODF
			6, 8, 11	5/8'' x 7/8'' ODF
			11	5/8'' x 1-1/8'' ODF
TGE 20			12.5	5/8'' x 7/8'' ODF
			12.5, 16	5/8'' x 1-1/8'' ODF
			16, 20	7/8'' x 1-1/8'' ODF
			20	7/8'' x 1-3/8'' ODF

Rated Capacity:

Valve Type	Orifice no	Rated capacity in tons (TR)				Rated capacity in kW
		TGEX/TGEZ	TGEN	TGES	TGEL	TGEX/TGEZ	TGEN	TGES	TGEL
		R22/R407C	R134a	R404A/R507	R410A	R22/R407C	R134a	R404A/R507	R410A
TGE 10	3	3	1.5	2	3.5	10	6	7	12
	4	4	2.5	2.5	4.5	14	8	8	17
	6	6	3.5	4	6.5	20	12	14	23
	8	7.5	4.5	5	9	27	17	18	31
	11	11	7	7.5	13	38	24	27	45
TGE 20	12.5	12	8	9	15	43	29	31	54
	16	15	10	11	19	54	37	38	68
	20	18	12	13	23	63	43	45	79

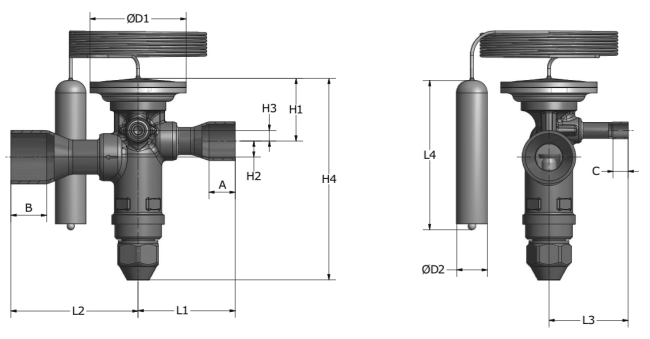

Main Dimension:

Valve Type	Connection inlet x outlet x equalization	H1	H2	H3	H4	L1	L2	L3	L4
TGE 10	3/8''x5/8''x1/4''	28.5	7.5	5	93	41.5	45.5	37	70
	1/2''x5/8''x1/4''						45.5
	1/2''x7/8''x1/4''						59.5
	5/8''x5/8''x1/4''					45.5	45.5
	5/8''x7/8''x1/4''						59.5
	5/8''x1-1/8''x1/4''						59.5
	7/8''x7/8''x1/4''						59.5
	7/8''x1-1/8''x1/4''						59.5
TGE 20	5/8''x5/8''x1/4''	32	9	8	121	48	62	40.5	78
	5/8''x7/8''x1/4''						62
	5/8''x1-1/8''x1/4''						66
	7/8''x7/8''x1/4''					62	62
	7/8''x1-1/8''x1/4''						66
	7/8''x1-3/8''x1/4''						66
	1-1/8''x1-1/8''x1/4''						66
	1-1/8''x1-3/8''x1/4''						66
