VXF2160 SMC Type Solenoid Pulse Jet Valve for Dust Collector 1'' VXF2160-10

Name: VXF2160 SMC Type Solenoid Pulse Jet Valve for Dust Collector 1'' VXF2160-10
Brand: Ningbo Brando Hardware Co., Ltd

Price Negotiable

Price: Negotiation

MOQ: 8pcs

Delivery Time: about 4 to 7 working days after payment landed

Brand: BRANDO

Product Description

VXF2160 SMC Type Solenoid Pulse Jet Valve for Dust Collector 1'' VXF2160-10

This is a 1'' threaded port pulse valve, called VXF2160 (VXF2160-10). The supply voltage can be 24VDC, 24VAC, 110VAC or 220VAC. Pulse jet valve, also called diaphragm valve acts as a "switch" for compressed air in dust collector, controlled by the electric signals from a pulse controller.

Technical Data:

Solenoid Type	VXF2150	VXF2160	VXF2280
Air Operated Type	VXFA2150	VXFA2160	VXFA2280
Port Size	3/4''	1''	1-1/2''
Orifice Size	20mm	27mm	40mm
Diaphragm Material	NBR
Body Material	Aluminum (diecast)
Pressure Range	0.03 to 1 MPa
Voltage	24VDC, 24VAC, 110VAC, 220VAC

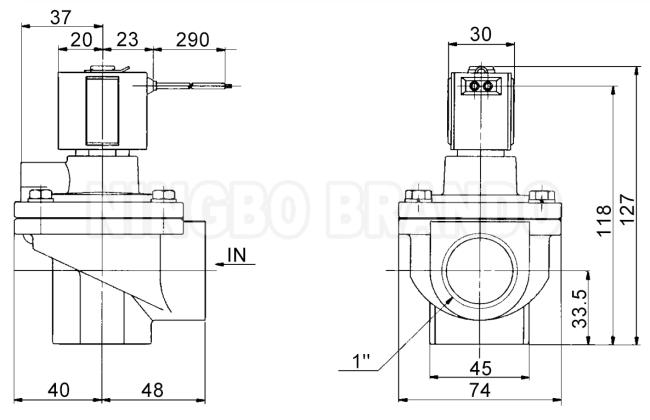

VXF2160 Dimension:
