Airtac Type 4A130C-06 1/8'' Pneumatic Air Pilot Valve 5/3 Way

Price Negotiable

Price: Negotiation

MOQ: 100 pcs

Delivery Time: Negotiation

Brand: Brando

Product Description

Airtac Type 4A130C-06 1/8'' Pneumatic Air Pilot Valve 5/3 Way

Pneumatic air pilot valves are used to direct or stop the flow of compressed air to their appliances. They can be used for example to actuate a cylinder, a larger industrial valve or air tools. Directional control valves are generally classified by two numbers, the first digit indicates the number of ports, the second digit the number of states. The most common types are 3/2-way, 5/2-way and 5/3-way. The valves can be single or double acting. Several models are prepared for manifold mounting, please note the platform size when selecting a valve and manifold.

Technical Data of 4A100 Series Pneumatic Air Pilot Valve:

Model	4A110-M5	4A120-M5	4A130C-M5 4A130E-M5 4A130P-M5	4A110-06	4A120-06	4A130C-06 4A130E-06 4A130P-06
Fluid	Air (to be filtered by 40 μm filter element)
Acting	exterior control
Port Size	in=out=M5			in=out=1/8''
Orifice Size	4A110-06, 4A120-06: 17.0mm² (Cv=0.6) 4A130C-06: 8.6mm² (Cv=0.51)
Vlave Type	5 way 2 position		5 way 3 postion	5 way 2 position		5 way 3 position
Operating Pressure	0.15 to 0.8 MPa (21 to 114 psi)
Proof Pressure	1.2MPa (175psi)
Temperature	-20 to +70℃
Body Material	Aluminum Alloy
Max Frequency	5 cycle/sec		3 cycle/sec	5 cycle/sec		3 cycle/sec

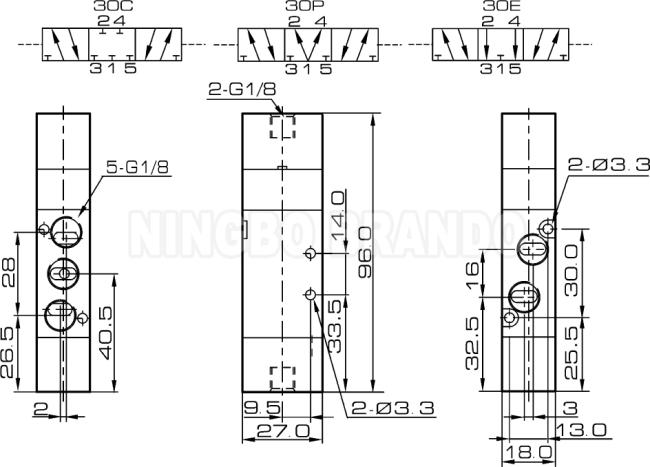

Dimension of 4A130C-06 Pneumatic Air Pilot Valve:
