CAC25T4 GOYEN Type Pulse Jet Valve CAC25T4012 CAC25T4022 CAC25T4002
CAC25T4 GOYEN Type Pulse Jet Valve
Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different designs of pulse jet valves:
1. Right Angle Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type
Technical Data:
| Integral Pilot | CA15T | CA20T | CA25T | CA35T | CA45T | CA50T | CA62T | CA76T | CAC20T4 | CAC25T4 |
| Remote Pilot | RCA15T | RCA20T | RCA25T | RCA35T | RCA45T | RCA50T | RCA62T | RCA76T | RCAC20T4 | RCAC25T4 |
| Orifice Size (mm) | 15 | 20 | 25 | 35 | 45 | 50 | 62 | 76 | 20 | 25 |
| Port Size (Inch) | 1/2'' | 3/4'' | 1'' | 1-1/2'' | 1-1/2'' | 2'' | 2-1/2'' | 3'' | 3/4'' | 1'' |
| Pilot Size | 1/8'' | 1/4'' | 1/8'' | |||||||
| Diaphragm Number | 1 | 2 | 1 | |||||||
| Working Pressure | 5 to 125 psi | |||||||||
| Diaphragm Material | NBR (Standard), FKM (Oprtional) | Shockwave | ||||||||
| Body Material | Aluminum (diecast) | |||||||||
| Voltage | 24VDC, 24VAC, 110VAC, 220VAC | |||||||||

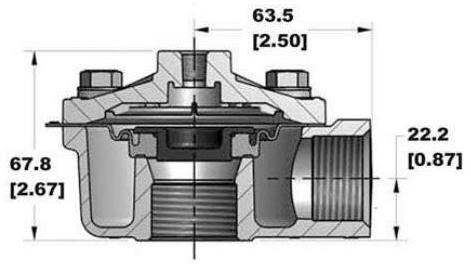

CAC25T4 Dimension:
Our Production:
Related Products:
 |
 |
 |
 |
| Solenoid Coil | Solenoid Armature | Diaphragm | Pulse Controller |
