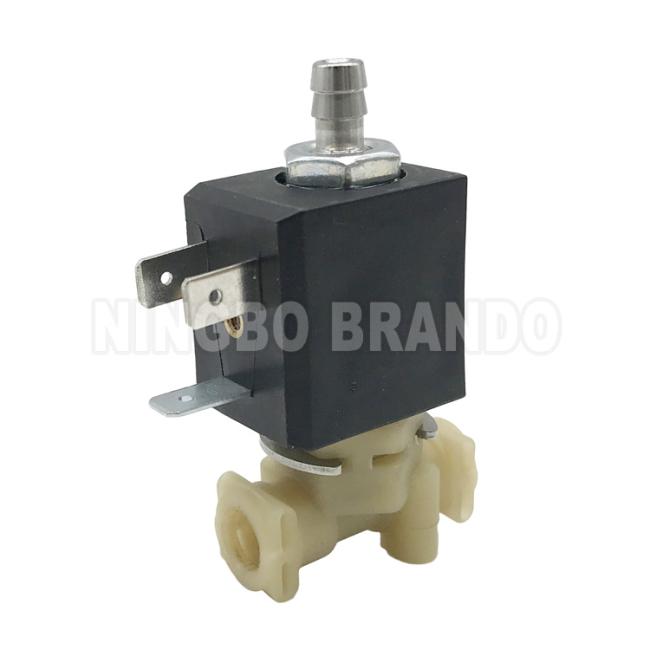

Food Grade Isolation PPSU Solenoid Valve for Coffee Machine 12V 24V 110V 220V
Food Grade Isolation PPSU Solenoid Valve for Coffee Machine 12V 24V 110V 220V
Product Features:
1. Working Medium: Corrosive Fluids, Chemicals, Acid, Alkali, Steam, Coffee, Beverage, etc
2. Medium Temperature: FKM (-30 to +150℃), FFKM (-40 to +180℃)
3. Working Pressure: 0 to 6 bar (pls see below datasheet)
4. Body Material: PPSU
5. Seal Material: FKM, FFKM
6. Port Size: 9mm barb
7. Orifice Size: 2.5mm, 3mm, 4mm, 4.5mm, 4.8mm
8. Function: 2 Way Normally Closed
9. Operation: Direct Acting
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data:
| Model No. | Port size | Orifice Size (mm) | Mini Pressure | Max Pressure | Seal Material | Body Material | |||
| 7.13AAF028BQF | Φ6mm ID | 2.8 | 0.0 bar | 0 bar | 5 bar | EPDM | PPSU | ||
| Model No. | Port size | Orifice Size (mm) | Mini Pressure | Max Pressure | Seal Material | Body Material | |||
| Port 1 to Port 2 | Port 2 to Port 1 | ||||||||
| 7.13CAF025BXX | Male, Female | 2.5 | 0.0 bar | 6 bar | 2.8 bar | FKM FFKM |
PPSU | ||
| 7.13CAF030BXX | 3.0 | 0.0 bar | 5.5 bar | 2 bar | |||||
| 7.13CAF040BXX | 4.0 | 0.0 bar | 3.5 bar | 1.3 bar | |||||
| 7.13CAF045BXX | 4.5 | 0.0 bar | 3 bar | 1 bar | |||||
| 7.13CAF048BXX | 4.8 | 0.0 bar | 2.8 bar | 0.9 bar | |||||

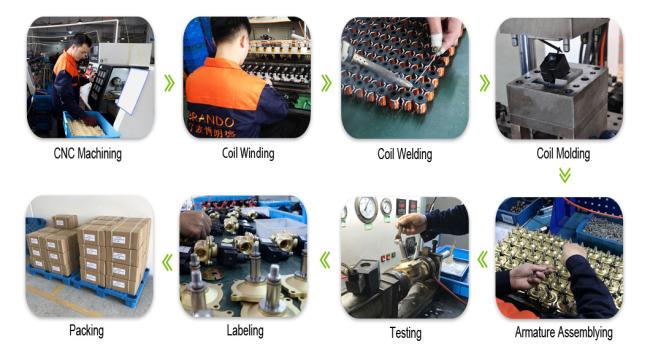

Production Show:
Production Video:
