JOIL Type JIHI100 4'' Pulse Jet Diaphragm Valve 3'' 24VDC 110VAC 220VAC

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Different pulse jet valve structure:

1. Threaded Type
2. Manifold Flat Mount Type
3. Dresser Nut Type
4. Straight Through Type
5. Flanged Type

Technical Data:

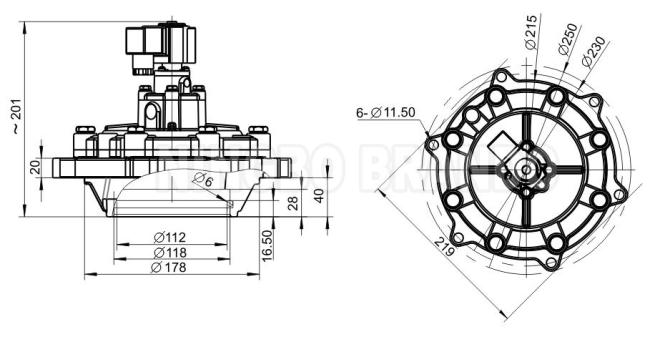

JIHI 100 Dimension:

Our Production:

Related Products:

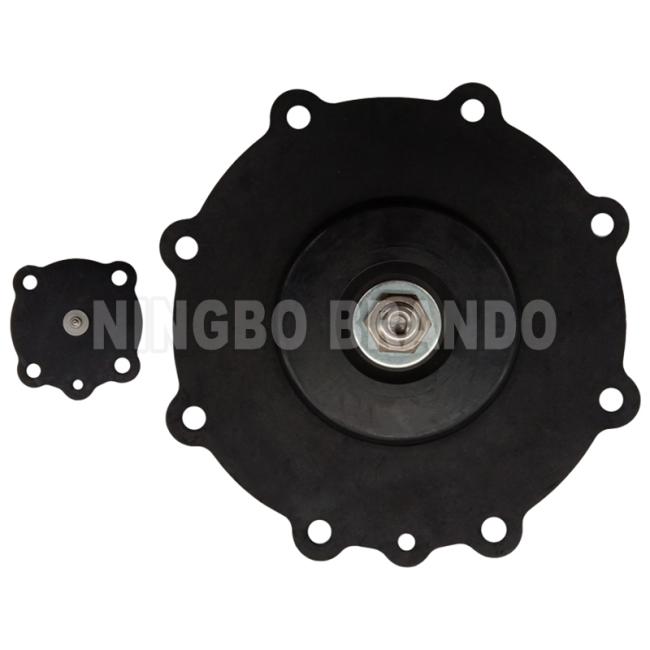

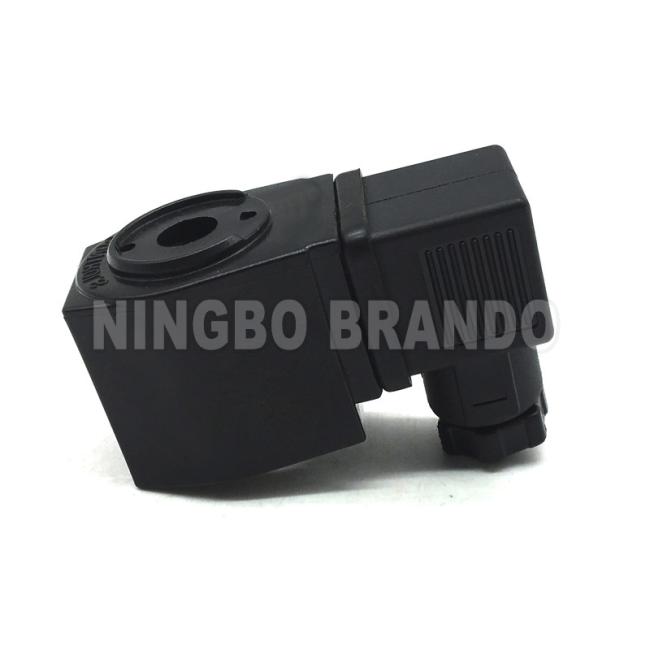

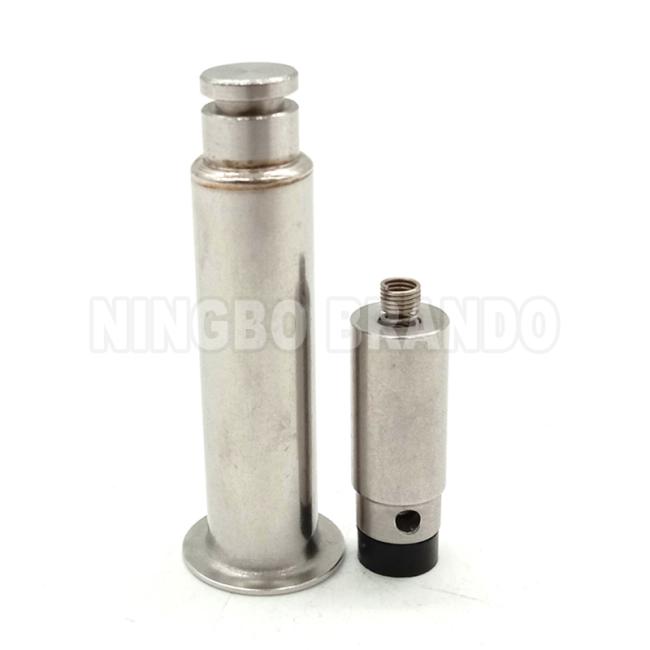

Solenoid Coil	Solenoid Armature	Diaphragm	Pulse Controller
