Goyen Type RCA76MM Manifold Flat Mount Remote Pilot Valve 3''
Goyen Type RCA76MM Manifold Flat Mount Remote Pilot Valve 3''
Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different designs of pulse jet valves:
1. Right Angle Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type
Technical Data:
|
Integral Pilot
Model No
|
CA25MM
|
CA40MM
|
CA50MM
|
CA62MM
|
CA76MM
|
CA89MM
|
CA102MM
|
|
Remote Pilot
Model No
|
RCA25MM
|
RCA40MM
|
RCA50MM
|
RCA62MM
|
RCA76MM
|
RCA89MM
|
RCA102MM
|
|
Pilot Size
|
1/8'', 1/4''
|
||||||
|
Port Size
|
1''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
3 1/2''
|
4''
|
|
Orifice Size
|
25mm
|
40mm
|
50mm
|
62mm
|
76mm
|
89mm
|
102mm
|
|
Body Material
|
Aluminum (diecast)
|
||||||
|
Diaphragm Material
|
NBR (standard) FKM (optional) |
||||||
|
Working Pressure
|
5 to 125 psi
|
||||||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
||||||
RCA76MM Dimension:
Related Products:
 |
 |
 |
 |

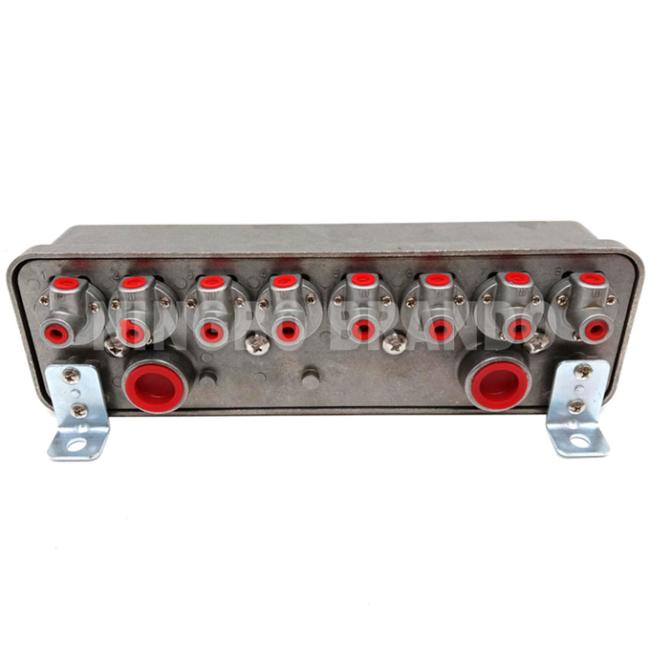

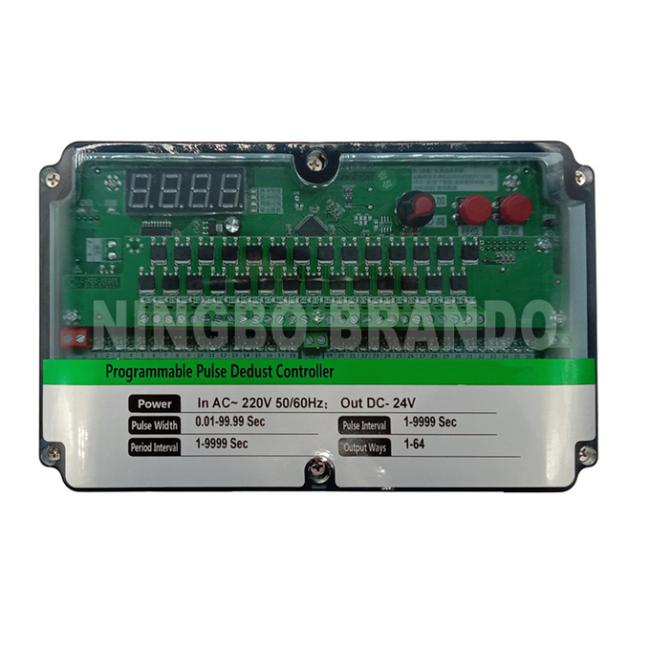

| Fitting | Diaphragm | Remote Pilot Box | Pulse Controller |
Construction:
Body and Dreeser Nuts: Aluminum (diecast)
Ferrule: 305 Stainless Steel
Armature: 430FR Stainless Steel
Diaphragm and Seals: Nitrile or FKM
Spring: 304 Stainless Steel
Screws: 302 or 304 Stainless steel
Outlet Pipe: Schedule 40 wrought steel zinc passivated
Diaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or Vitoncoated mild steel
Maintenance Kits of CA76MM Valve:
| Model | Nitrile | FKM | Incldes |
| CA/RCA76MM | K7600 | K0384 | Diaphragm kits include main and secondary diaphragms and all spring |
| k0380 | O-ring, armature assembly, armature spring, ferrule |
