1/4'' PTFE Body Acid Alkali Anti Corrosion Solenoid Valve 24V 220V
1/4'' PTFE Body Acid Alkali Anti Corrosion Solenoid Valve 24V 220V
Feature of Valve Material:
1. Material of valve body, cap, core and pole: brand new PTFE resin.
2. Sealing material: high tech sealing part, anti-corrosion for strong acid, strong alkali, strong oxidant and organic solvent.
3. The unique patent design piston to replace the membrane sheets.
4. Fluid and matel parts (pluger,spring) have no direct contact, that means the fluid only contact with the plastics parts such as CPVC, PTFE, O-ring, which is anti-corrosive absolutely.
5. Push-in type sealing structure, more reliable sealing properties.
Technical Data of Body Solenoid Valve:
| Model No. | Port size | Orifice | Mini Pressure | Max Pressure | Body Material |
| 6.16BA2P055BM8 | M8x1 | 5.5mm (3~6mm can be customized) |
0 bar | 6 bar | PTFE |
| 6.16BA2P055B01 | 1/8'' | ||||
| 6.16BA2P055B02 | 1/4'' | ||||
| 6.16BA2P080B03 | 3/8'' | 8.0mm | 0 bar | 4 bar | |
| 6.16BA2P10B03 | 3/8'' | 10.0mm |

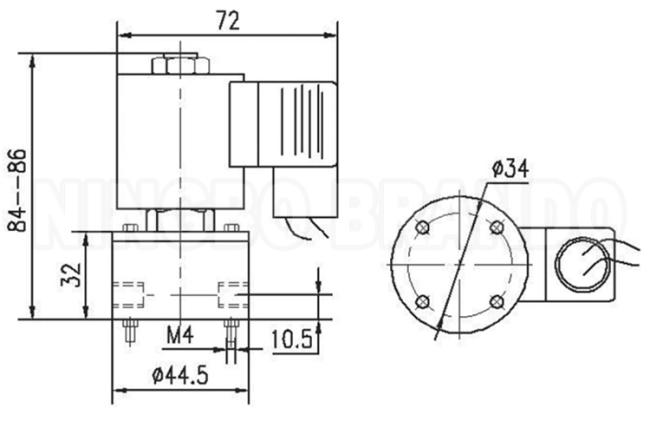

Main Dimension of PTFE Body Solenoid Valve:
Brando Solenoid Valve Factory Production Video:
More PTFE Body Solenoid Valves for you to choose:
 |
 |
 |
