2'' UPVC Anti-Corrosive Solenoid Valve Normally Closed AC220V AC110V DC24V
2'' UPVC Anti-Corrosive Solenoid Valve Normally Closed AC220V AC110V DC24V
This is an anti corrosive UPVC solenoid valve, 2'' female threaded port size, 50mm orifice size, 2 way normally closed, piston pilot operated, 0.1 to 6 bar working pressure, can be EPDM or FKM seal to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.
Product Features:
1. Working Medium: Chemical, Acid, Alkali, Corrosive Liquids
2. Body Material: UPVC
3. Seal Material: EPDM, FKM
4. Port Size: 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2''
5. Orifice Size: 15mm, 20mm, 25mm, 32mm, 40mm, 50mm
6. Operation: Piston Pilot Operated
7. Function: 2 Way Normally Closed
8. Working Pressure: 0.1 to 6 bar
9. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Technical Data:
|
Model No
|
Orifice Size
(mm)
|
Port Size
(inch)
|
Cv
|
Working Pressure
(bar)
|
Body Material
|
Seal Material
|
Function
|
|
FF1U15B04
|
15
|
1/2''
|
4
|
0.1 to 6
|
UPVC
|
EPDM
FKM
|
2 Way NC
|
|
FF1U20B06
|
20
|
3/4''
|
5.5
|
0.1 to 6
|
|||
|
FF1U25B25
|
25
|
1''
|
13
|
0.1 to 6
|
|||
|
FF1U32B32
|
32
|
1 1/4''
|
17
|
0.1 to 6
|
|||
|
FF1U40B40
|
40
|
1 1/2''
|
25
|
0.1 to 6
|
|||
|
FF1U50B50
|
50
|
2''
|
40
|
0.1 to 6
|

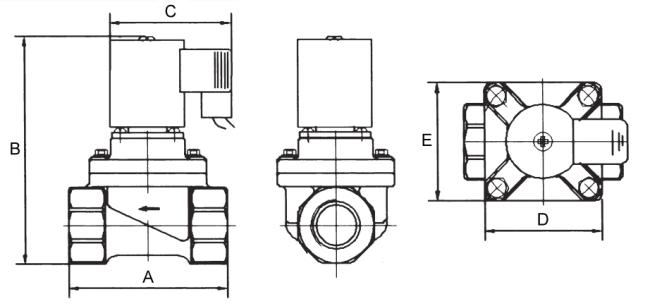

Main Dimension:
|
Model No
|
Port
|
A
|
B
|
C
|
D
|
E
|
|
FF1U15B04
|
1/2''
|
74
|
132
|
92
|
63.5
|
63.5
|
|
FF1U20B06
|
3/4''
|
80
|
137
|
92
|
63.5
|
63.5
|
|
FF1U25B25
|
1''
|
100
|
147
|
92
|
74
|
74
|
|
FF1U32B32
|
1 1/4''
|
120
|
171
|
94
|
94
|
94
|
|
FF1U40B40
|
1 1/2''
|
130
|
180
|
94
|
94
|
94
|
|
FF1U50B50
|
2''
|
172
|
225
|
94
|
155
|
155
|

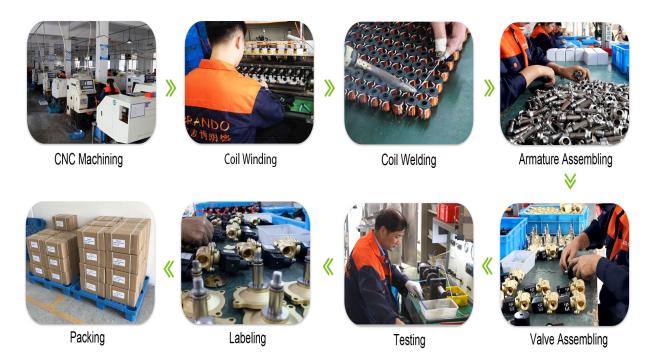

Our Production:
More Anti Corrosive Solenoid Valves:
 |
 |
 |
 |

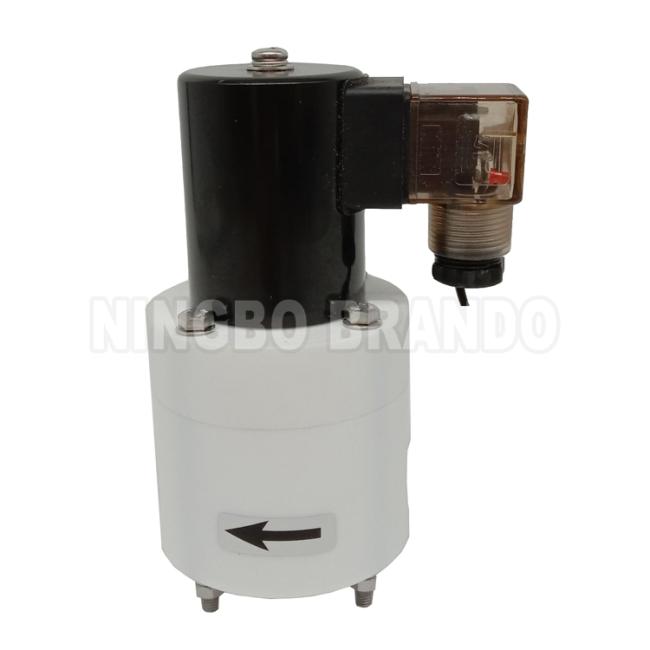

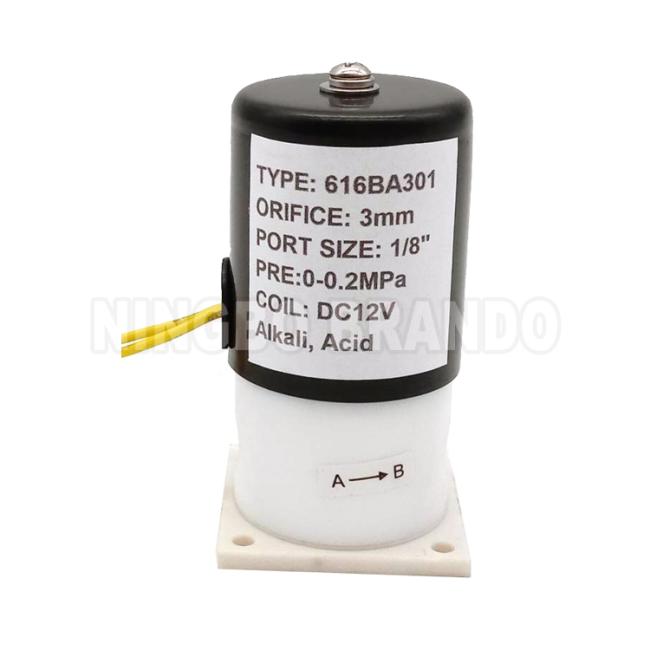

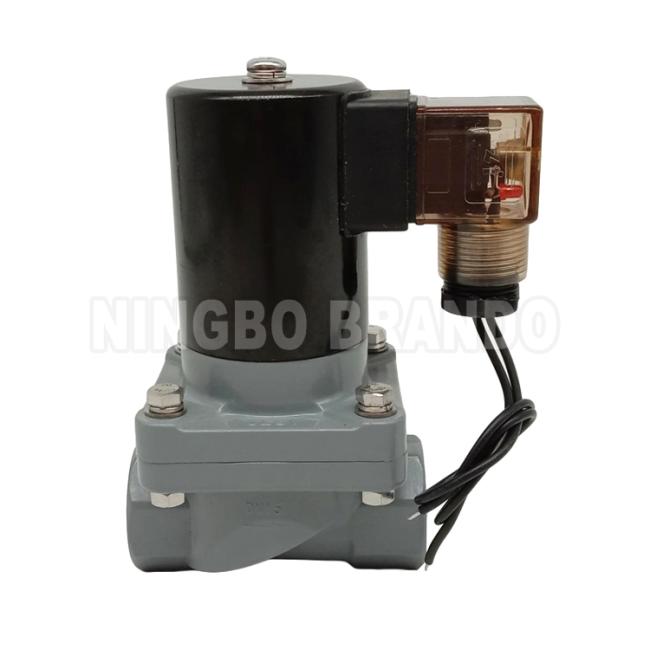

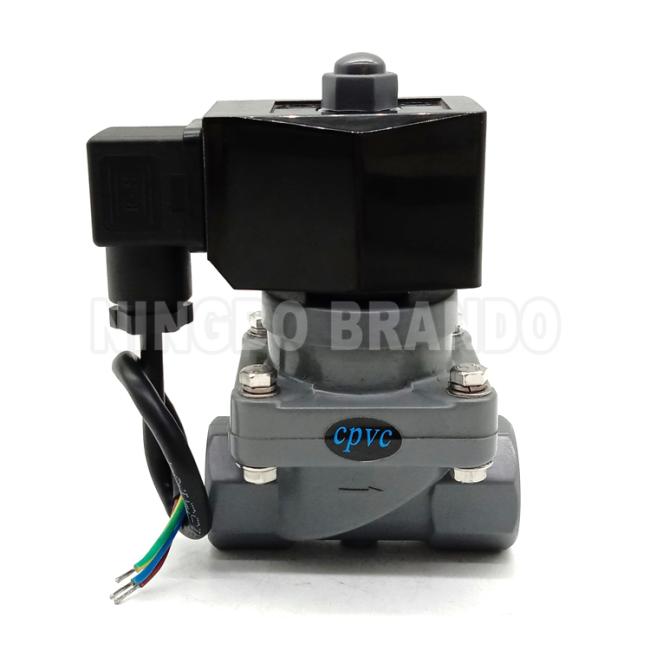

| CPVC Solenoid Valve | CPVC Solenoid Valve | PTFE Solenoid Valve | PTFE Solenoid Valve |
