4M320-08 AC110V 2 Position 5 Way NAMUR Solenoid Valve 220VAC

Price Negotiable

Price: Negotiation

MOQ: 300pcs

Delivery Time: Negotiation

Brand: BRANDO

Product Description

4M320-08 AC110V 2 Position 5 Way NAMUR Solenoid Valve 220VAC

A NAMUR solenoid valve is directly mounted to pneumatic actuator inlet / outlet ports.

The function of a NAMUR solenoid valve is to control media flow: the valve itself is controlled by an electric solenoid, which opens or closes the valve, by controlling the amount of air thru a pilot to the pneumatic actuator. The solenoid and actuator work in tandem to control flow speed, flow amount, and flow direction. Likewise, the valve is operated in either the normally closed, or normally open position.

Solenoid valves are available in several configurations, including 3 way and 4 way. They are commonly applied for operating double acting rack and pinion actuators.

Technical Data of 4M Series Namur Solenoid Valve:

Model	4M110-M5	4M110-06	4M210-06	4M210-08	4M310-08	4M310-10
	4M120-M5	4M120-06	4M220-06	4M220-08	4M320-08	4M320-10
Fluid	Air (to be filtered by 40 μ m filter element)
Acting	Internal Pilot
Port Size	In=Out=M5	In=Out=1/8''	In=Out=1/8''	In=1/4'' Out=1/8''	In=Out=1/4''	In=3/8'' Out=1/4''
Orifice Size	10.2mm² (Cv=0.6)		17.0mm² (Cv=1.0)		28.0mm² (Cv=1.65)
Valve Type	5 Port 2 Position
Operating Pressure	0.15~0.8MPa (21~114psi)
Proof Pressure	1.2MPa (175psi)
Temperature	-20~70 ℃
Body Material	Aluminum Alloy
Max. Frequency	5 cycle / sec				4 cycle / sec
Voltages	12VDC, 24VDC, 24VAC, 110VAC, 220VAC

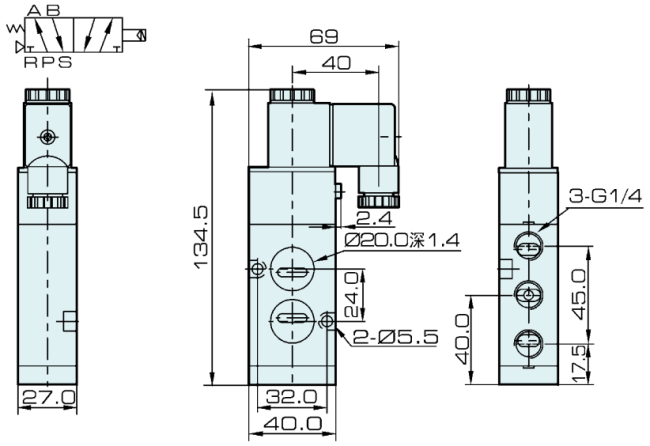

Dimension of 4M310-08 Namur Solenoid Valve:

Production Video of Pneumatic Solenoid Valves:

More Pneumatic Products for you to choose:

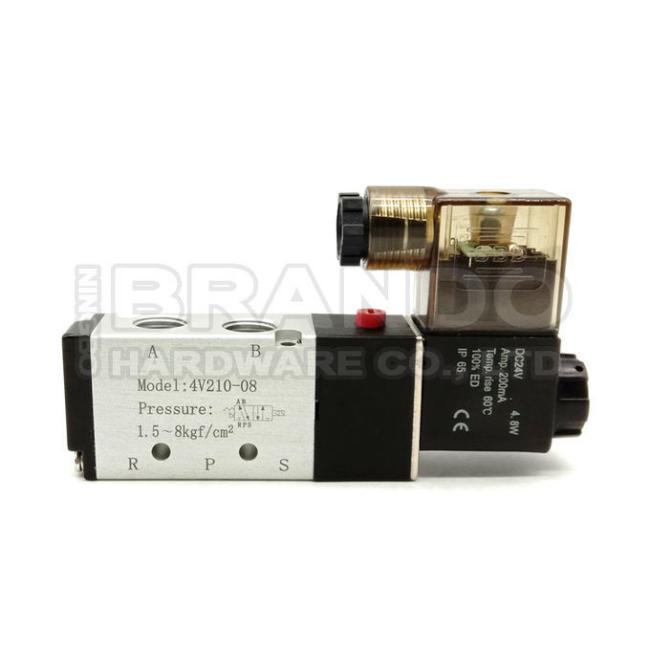

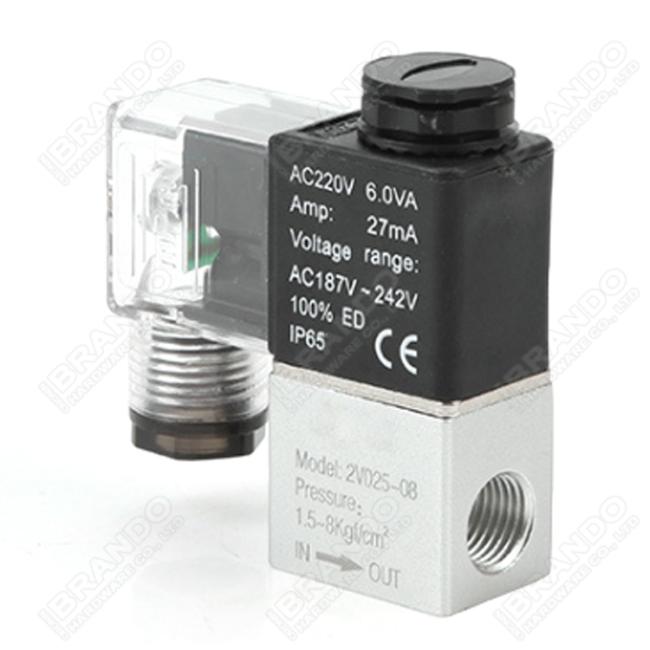

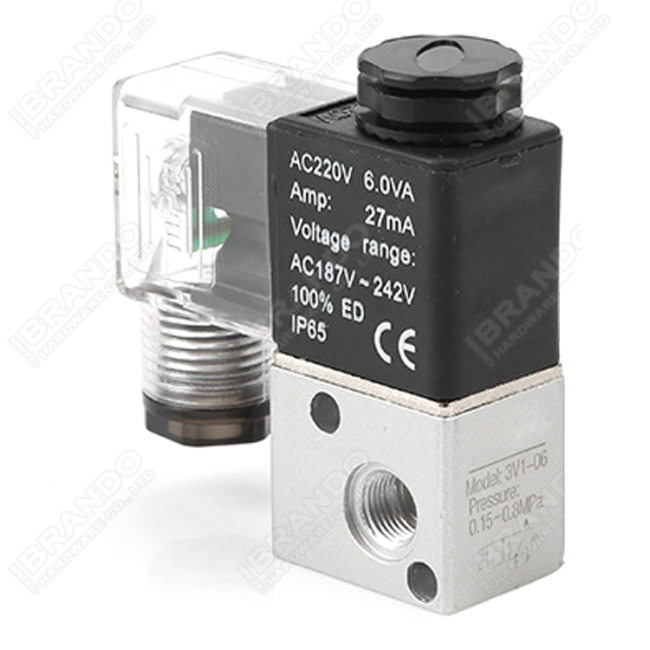

2/2 Way 3/2 Way 5/2 Way, Single Solenoid

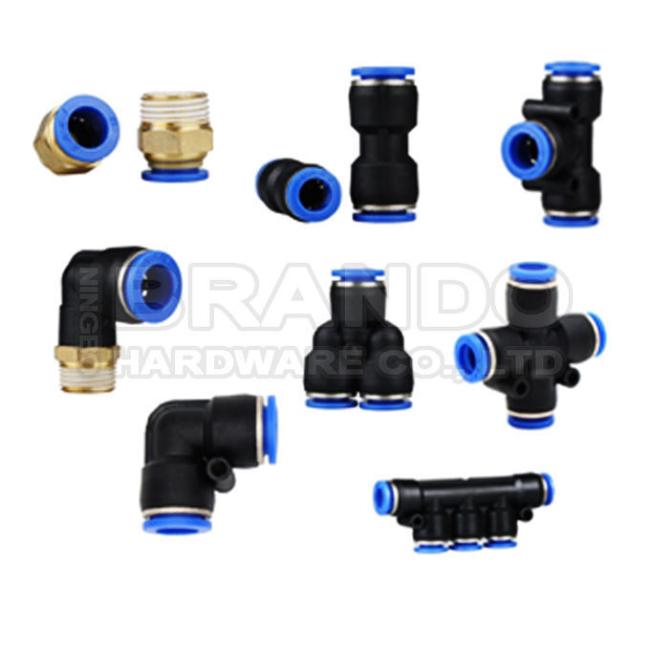

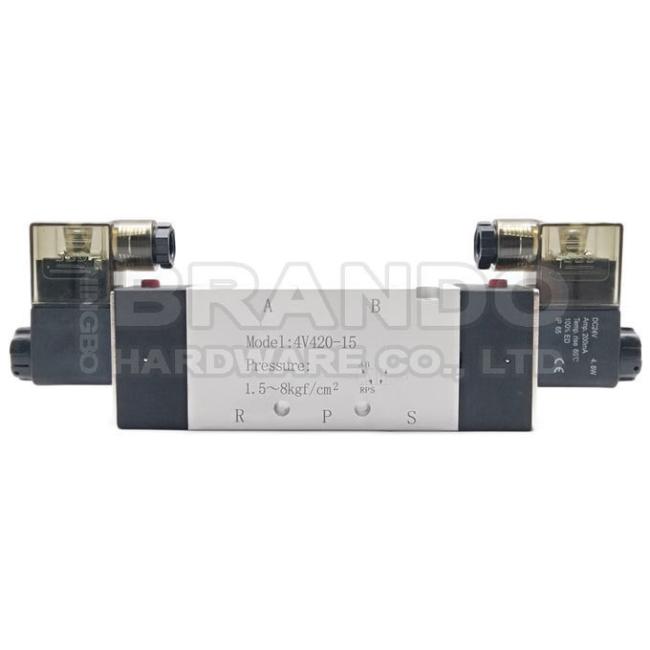

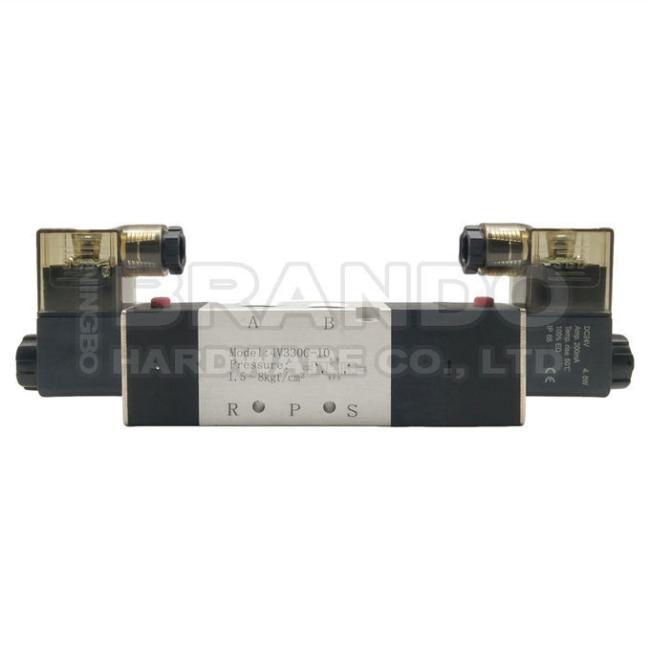

5/2 Way, Double Solenoid 5/3 Way, Double Solenoid Pneumatic Hose Fittings
