Airtac Type 4V310-08 Solenoid Air Valve 5 Way 2 Position 4V300 Series

Price Negotiable

Price: Negotiation

MOQ: 300pcs

Delivery Time: Negotiation

Brand: BRANDO

Product Description

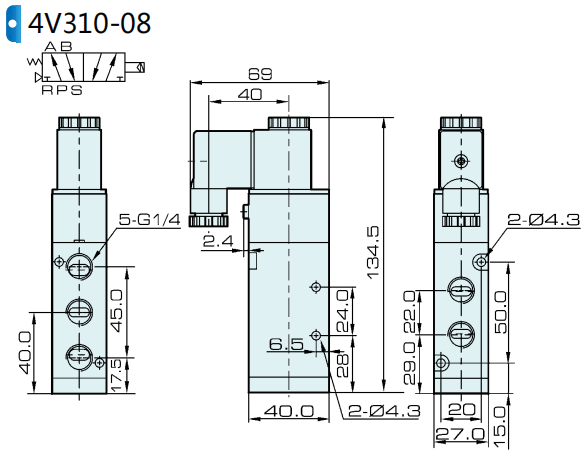

Airtac Type 4V310-08 Solenoid Air Valve 5 Way 2 Position 4V300 Series

Pneumatic solenoid valves generally have a spool design. They consist of an aluminum body with a cylindrical hole. The different ports of the valve connect to the cylinder. A sliding spool in the cylinder has several seals along its length. By sliding the spool back and forth through the cylinder, different ports can be connected or closed off. Pneumatic solenoid valves are appointed with two numbers. The first number shows how many ports the valve has, and the second number is the amount of states. For example, a 2/2-way valve has two ports (in/out) and two states (open/closed). A 5/2-way valve has five ports and two states. Directional valves usually have two, three, or five ports.

Technical Data of 4V300 Series Solenoid Valve:

Model	4V310-08	4V320-08	4V330C-08 4V330E-08 4V330P-08	4V310-10	4V320-10	4V330C-10 4V330E-10 4V330P-10
Fluid	Air (to be filtered by 40 μm filter element)
Acting	internal pilot or external pilot
Port Size	in=out=exhaust=1/4''			in=out=3/8'', exhaust=1/4''
Orifice Size	4V310-10, 4V320-10: 28.0mm² (Cv=1.65) 4V330C-10: 21.3mm² (Cv=1.25)
Vlave Type	5 way 2 position		5 way 3 postion	5 way 2 position		5 way 3 position
Operating Pressure	0.15 to 0.8 MPa (21 to 114 psi)
Proof Pressure	1.2MPa (175psi)
Temperature	-20 to +70℃
Body Material	Aluminum Alloy
Max Frequency	5 cycle/sec		3 cycle/sec	5 cycle/sec		3 cycle/sec
Voltages	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
