China 4TB-20 Four-way Reversing Valve for Heat Pump Air Conditioning Refrigeration for sale

4TB-20 Four-way Reversing Valve for Heat Pump Air Conditioning Refrigeration

Price Negotiable
Price: Negotiation
MOQ: 5pcs
Delivery Time: Negotiation
Brand: BRANDO
Product Description

4TB-20 Four-way Reversing Valve for Heat Pump Air Conditioning Refrigeration


4 way reversing valves are especially applicable for heat pump systems including high-end and high efficient unitary and room air conditioners to realize switching between cooling mode and heating mode by changing the flow path of refrigerant.

Technical Data:

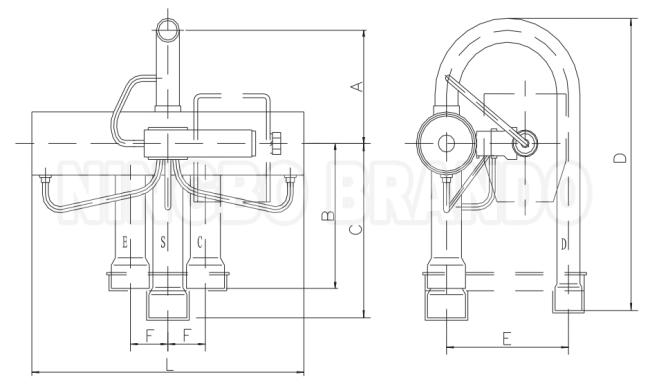

Dimension - logo
Model No
Orifice Size
(mm)
Port Size
(mm)
Operating Pressure Difference (MPa)
Internal Leakage (ml/min)
P=1MPa at 70℃
Power
(HP)
D
E.S.C
Min
Max
4TB-4U
8
8.1
9.6
0.25
2.5
＜1000
0.75 to 1.5
4TB-9U
11
9.6
12.8
0.34
2.25
＜1500
2 to 3
4TB-11
11.5
12.8
16
0.34
2.25
＜2000
2.5 to 4
4TB-11U
11.5
9.6
16
0.34
2.25
＜2000
2.5 to 4
4TB-20
13
12.8
19.2
0.34
2.25
＜4000
4 to 8
4TB-20U
13
12.8
19.2
0.34
2.25
＜4000
4 to 8
4TB-34
20
19.05
22.2
0.34
2.25
＜6000
7.5 to 12
4TB-45
23
22.2
28.5
0.34
2.76
＜6000
5 to 15
25.6
28.5
34.9
0.34
2.76
＜6000
5 to 20

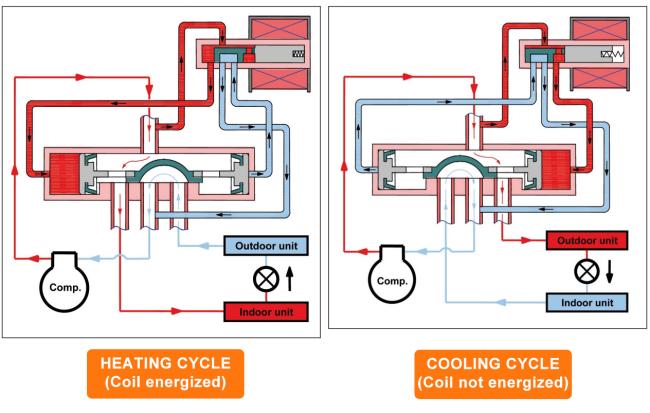

Working Principle:

Four Way Reversing Valve For Heat Pump Refrigeration Air Conditioner 220V 110V 24V 1

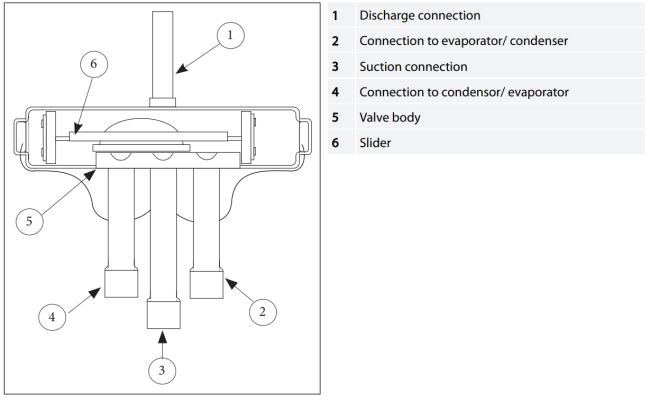

Structure:

Four Way Reversing Valve For Heat Pump Refrigeration Air Conditioner 220V 110V 24V 2

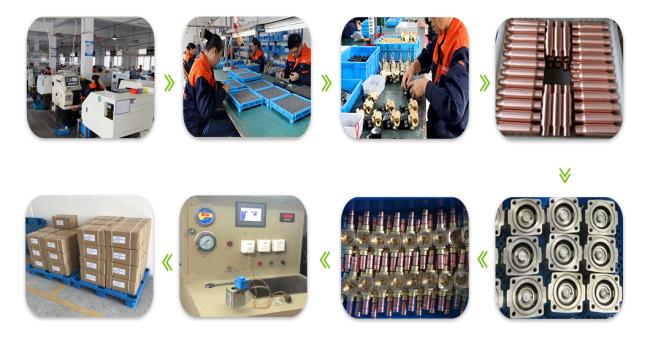

Our Production:
Four Way Reversing Valve For Heat Pump Refrigeration Air Conditioner 220V 110V 24V 3

Related Products

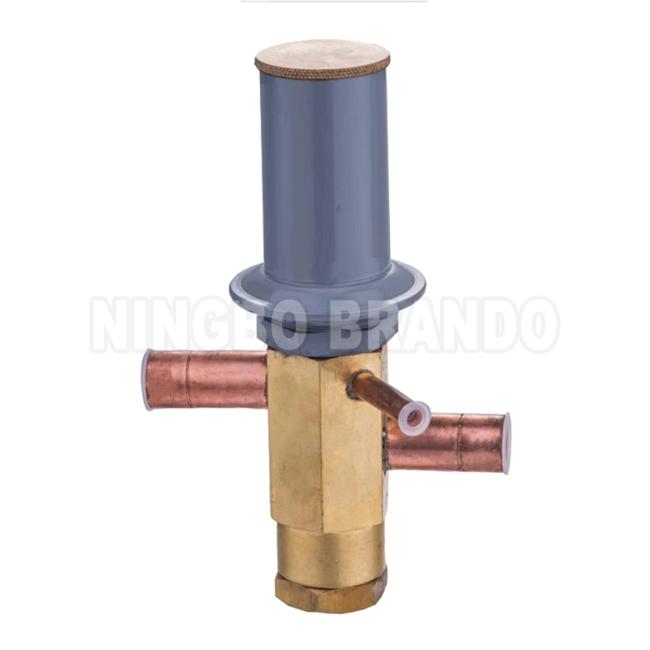

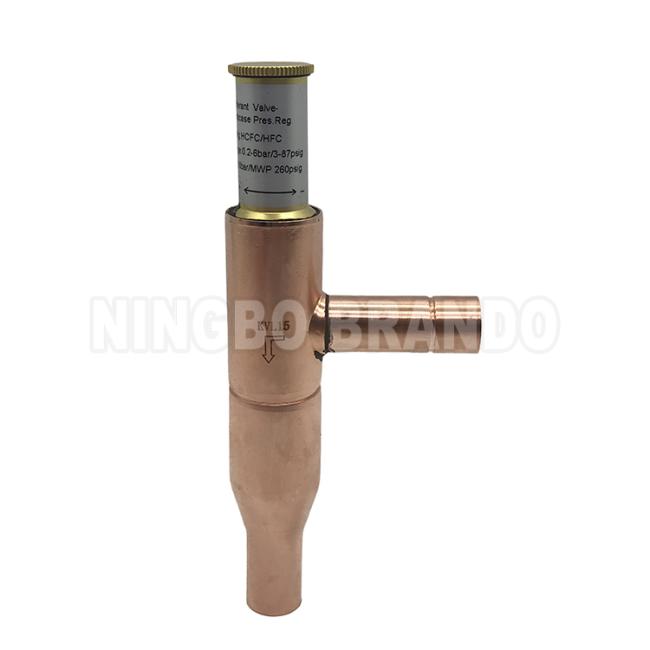

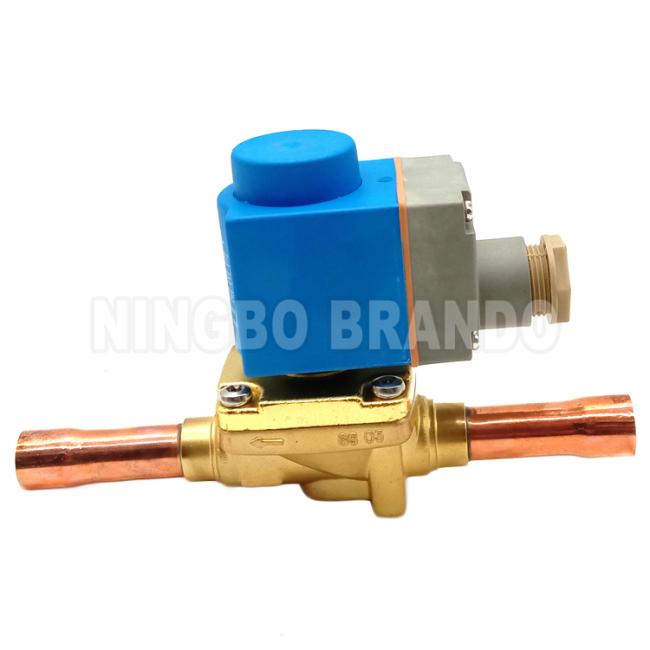

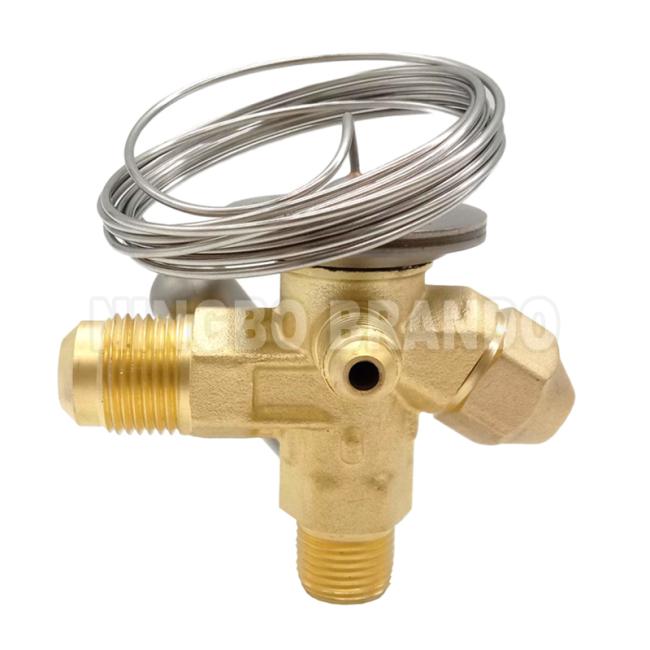

Solenoid Valve Thermal Expansion Valve Hot Gas Bypass Valve KVL 15 (1)
Solenoid Valve Expansion Valve Hot Gas Bypass Valve Pressure Regulator

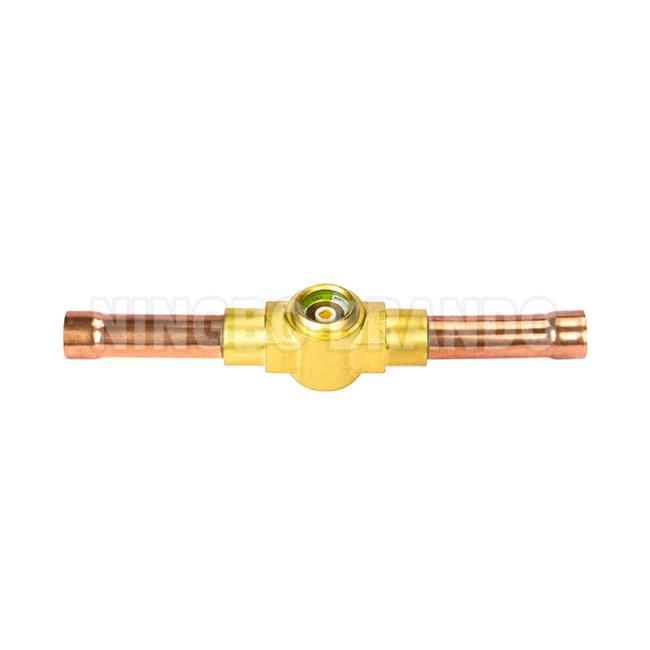

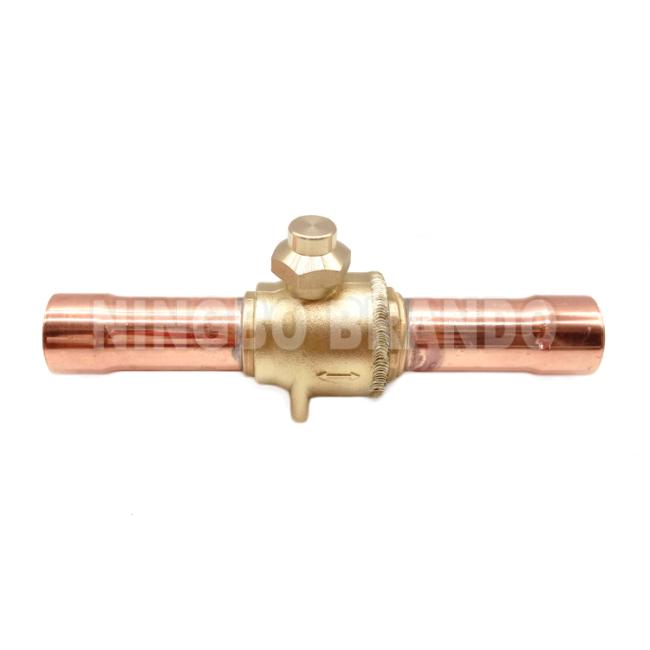

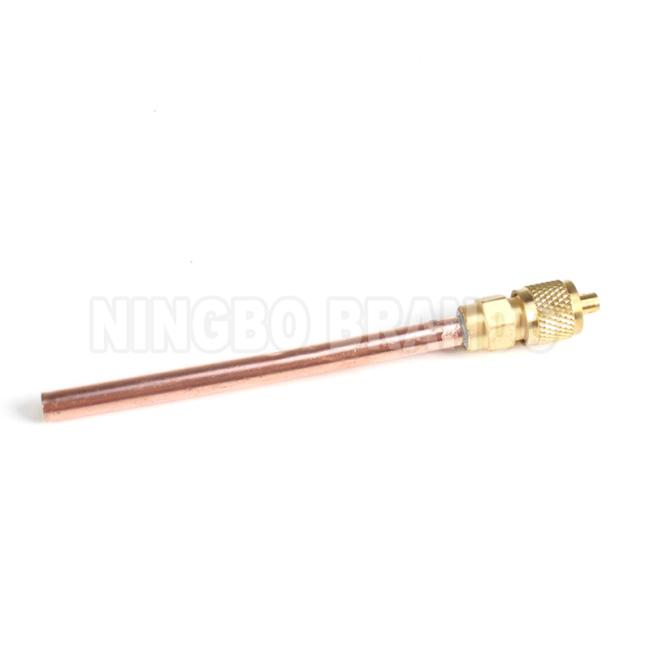

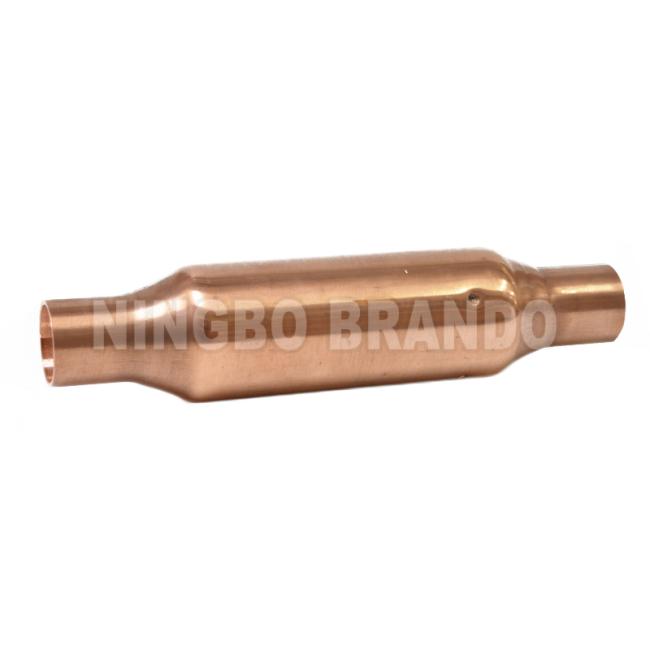

Refrigeration Ball Valve Refrigeration Check valve Refrigeration Sight Glass Refrigeration Access Valve
