Solenoid Valve FDF2AK NO Series Refrigeration Valve Sanhua Type 1/4''
Solenoid Valve FDF2AK NO Series Refrigeration Valve Sanhua Type 1/4''
FDF2AK series solenoid valves are direct operated, normally open solenoid valves, mainly used in refrigerant control of various
devices such as refrigerating and freezing systems, air conditioners and heat pumps.
Features:
1. Compact design
2. Low energy consumption
3. Excellent operation performance
General Specifications:
1. Applicable for all common HCFC, HFC refrigerants such as:
R22, R134a, R404A, R407C, R410A, R507, R407A/F, R448A/R449A, R452A, R450A/R513A1)
2. Medium temperature TS min./max.: -30°C / 120°C
3. Ambient temperature: -30°C / +50°C
4. Relative humidity: 0 to 95% RH
5. Installation position:
1) Liquid, suction and discharge line
2) Coil upwards, coil axis ±15° tolerance versus vertical axis
3) Flow direction corresponds to the arrow
Technical Data:
|
Model No
|
Function
|
Operation
|
Orifice
|
Kv (m³/h)
|
MOP
|
Max.
OPD
|
Min.
OPD
|
Connection
OD
|
|
FDF2AK01
|
2 Way
NO
|
Direct Acting
|
1.8mm
|
0.05
|
45 bar
|
21 bar
|
0 bar
|
1/4''
(Φ6.35mm)
|

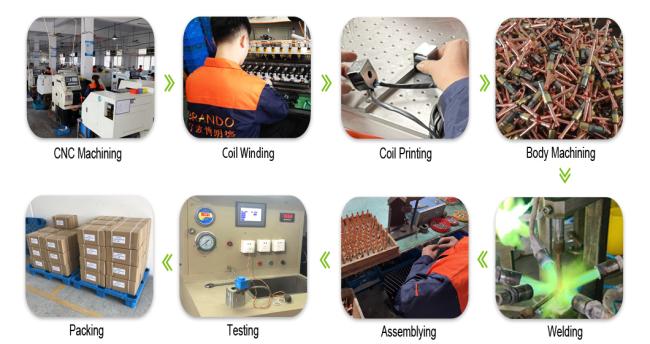

Our Production:
Related Products:
 |
 |
 |
 |

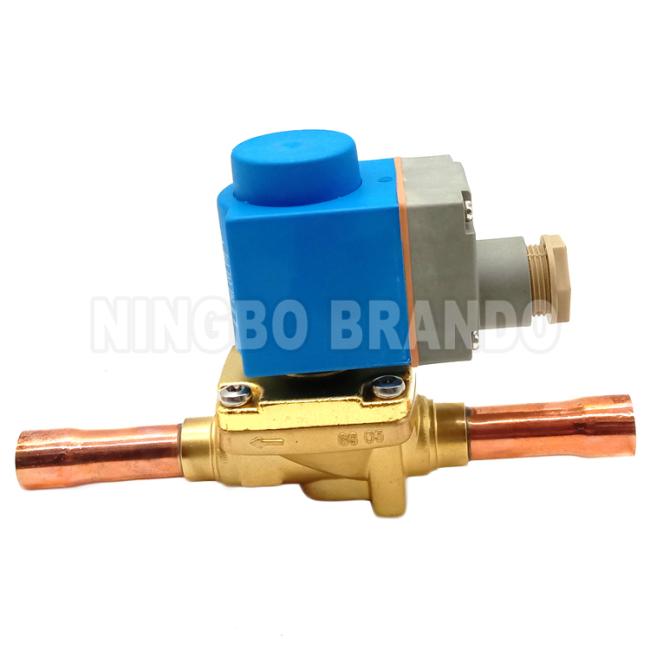

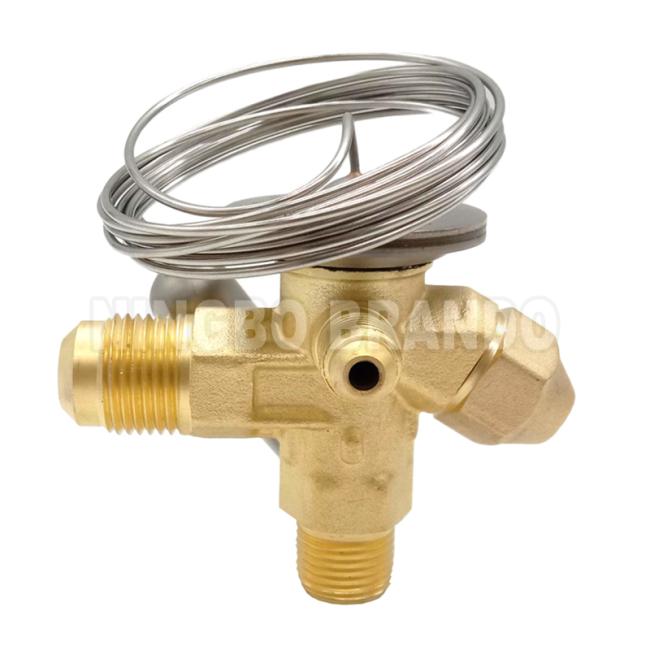

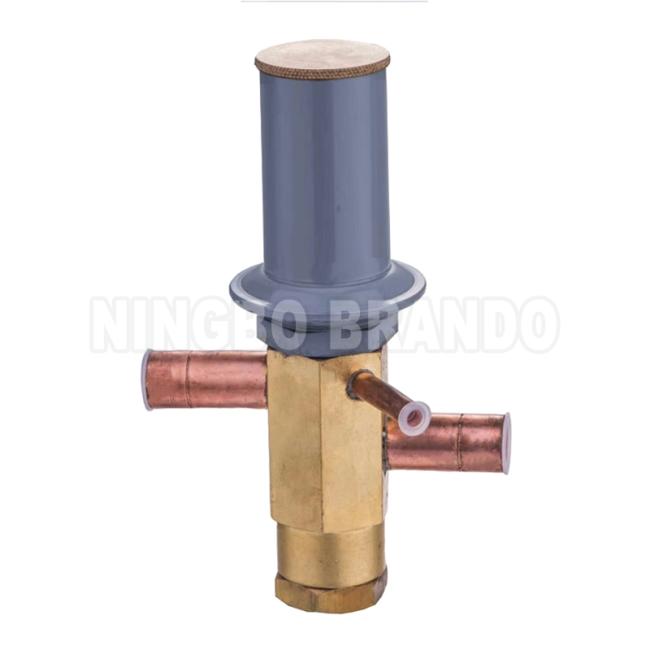

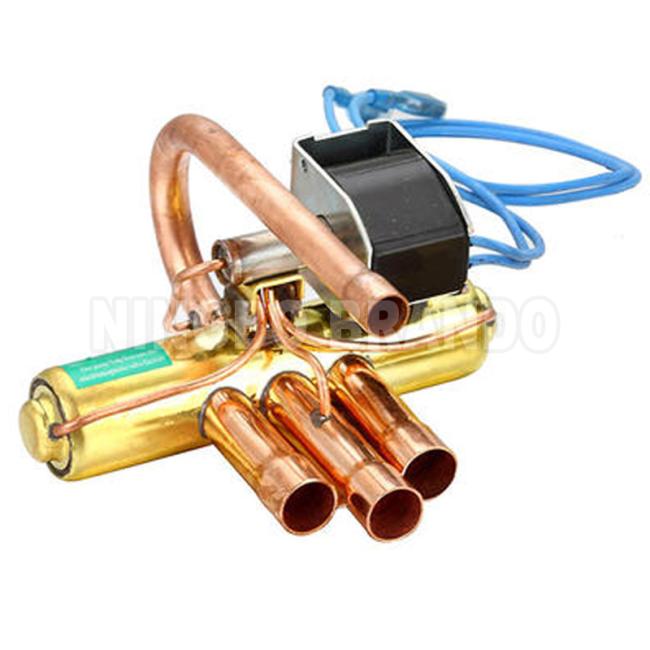

| Solenoid Valve | 4 Way Reversing Valve | Expansion Valve | Hot Gas Bypass Valve |
 |
 |
 |
 |

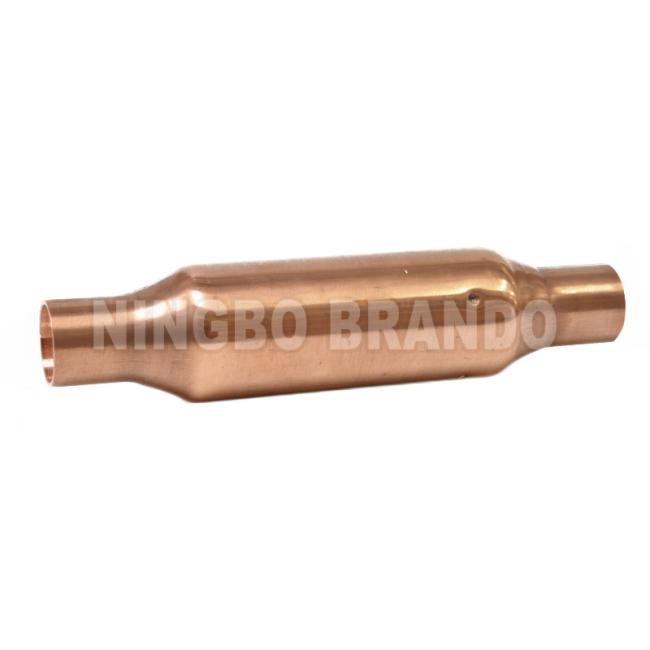

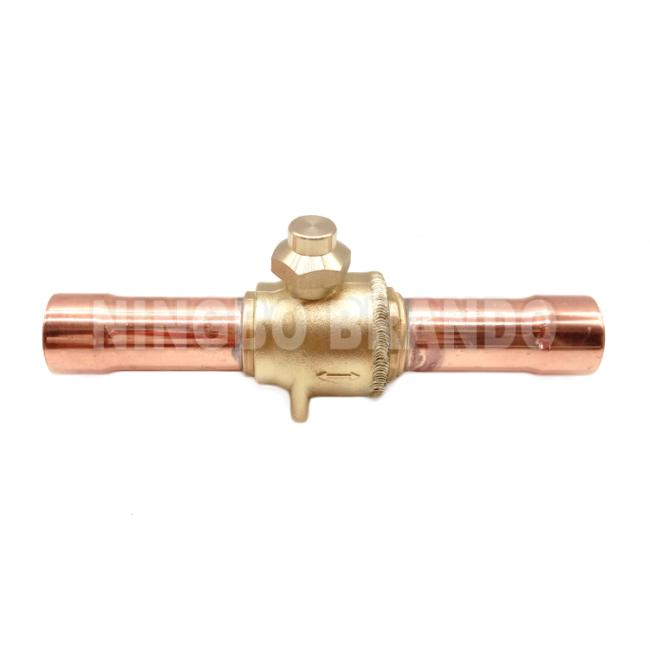

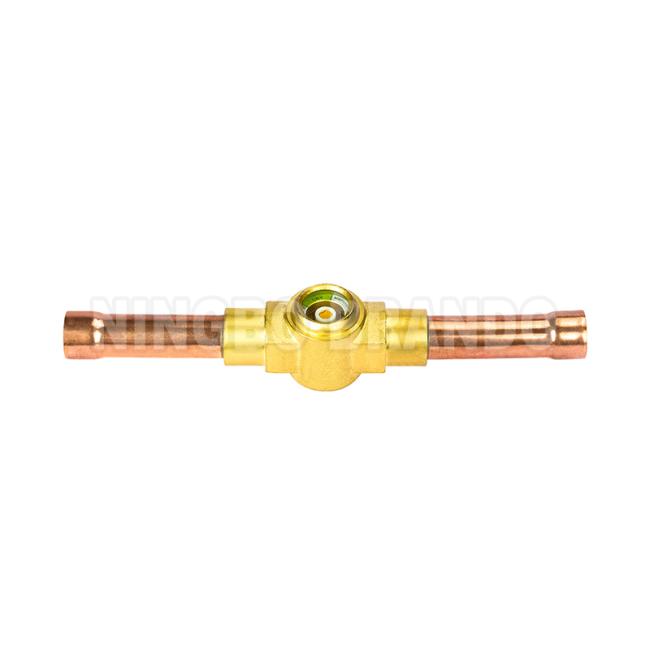

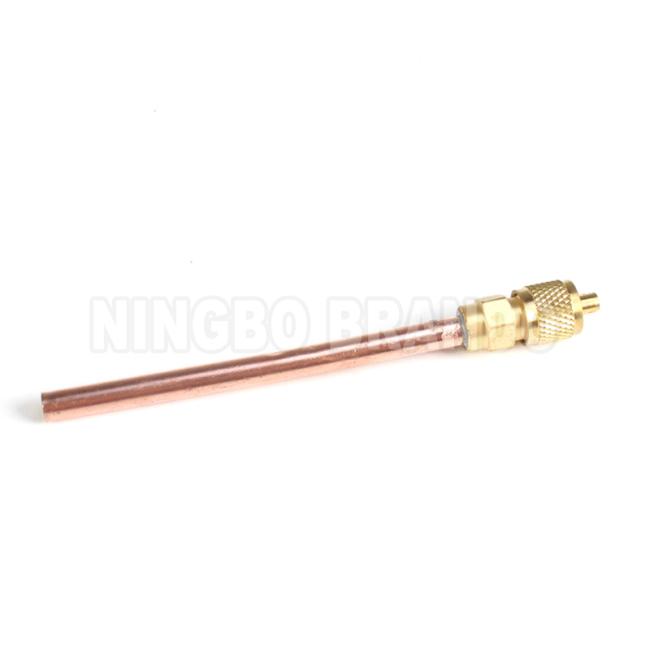

| Ball Valve | Check Valve | Sight Glass | Access Valve |
