EATON Type Hydraulic Solenoid Coil 300AA00081A 300AA00082A 300AA00085A 300AA00086A 300AA00087A 300AA00088A
EATON Type Hydraulic Solenoid Coil 300AA00081A 300AA00082A 300AA00085A 300AA00086A 300AA00087A 300AA00088A
Hydraulic solenoid coils are needed in hydraulic systems when the solenoid coil used to control a hydraulic solenoid valve wears out or stops functioning. A solenoid is an electromagnet that consists of a tightly wrapped metal coil around solid metalcore. They produce a controlled, uniform magnetic field, and the metal coil can be inserted or removed which creates a method of control for various devices, including a hydraulic valve.

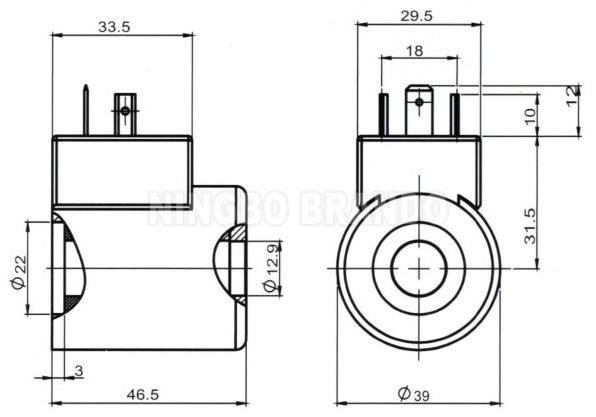

Main Dimension:
Technical Data:
|
BRANDO Model
|
BB12946546
|
|
Voltage
|
12VDC, 24VDC, 115VAC, 230VAC
|
|
Power
|
22W
|
|
Other voltage and power can be customized
|
|
|
Connector
|
DIN43650A
|
|
Insulation Class
|
H
|
|
Protection Class
|
IP65
|
Production Video:
