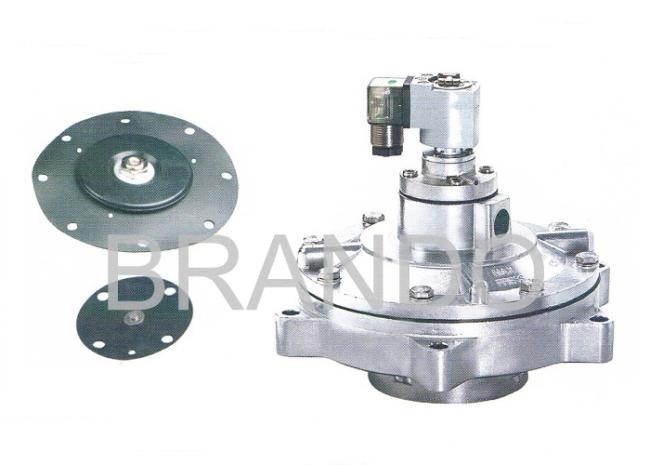

CA76MM 220V AC 50/60HZ Pneumatic Pulse Valve , Dust Collector Pneumatic Diaphragm Valve

G3" Port Size MM Series Pulse Jet Valve Technical Parameters:

MM series double diaphragm valve G3 inch port size suitbale for dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelop filters, ceramic filters and sintered metal fibre filters.

MM Series Pulse Jet Valve Installation:

1, Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.

2, Ensure tank and pipes are free from dirt, rust or other particulate.

3, Ensure supply air is clean and dry.

4, Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.

5, Apply moderate pressure to system and check for installation leaks.

6, Fully pressurise system.

7, Test fire and listen for proper actuation and crisp pulse noise.

The double diaphragm pulse jet valve has options of kinds of voltage, such as AC110V, AC220V, AC24V, and DC24V, also available of explosion-proof type. Our BGZ76 pulse valve can be instead of goyen ca76t.

Our long working life diaphragm pulse jet valve is suitable for:

Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations including bag filters, cartridge filters and envelope filters.

Air Clean System MM Series Diaphragm Pulse Jet Valve Construction:

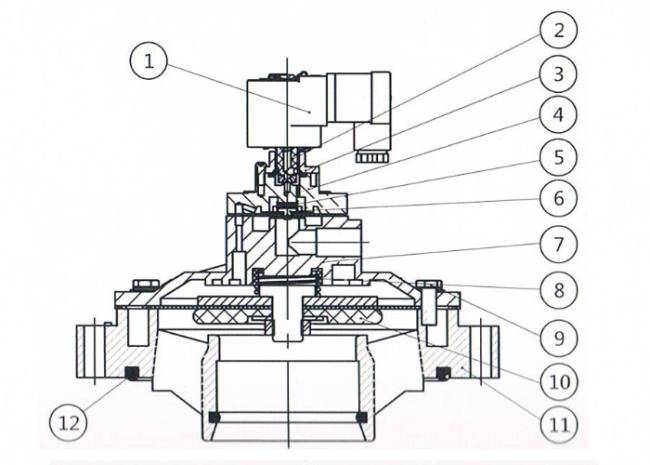

Number Part Name Material
1, Solenoid coil: Copper wire
2, Armature aseembly: 430FR SS
3, Small top cap: Alumininum, ADC
4, Middle cap: Alumininum, ADC
5, Small spring: 304 SS
6, Diaphragm seat: PA-66(standard), Viton or Nitrile coated mild steels, Nitrile, Viton or High Density PE
7, Top cap: Alumininum, ADC
8, Big spring: 304 SS
9, Bolts and Screws: 302 or 304 SS
10, Diaphragm seat: PA-66(standard), Viton or Nitrile coated mild steels, Nitrile, Viton or High Density PE
11, Valve body: Alumininum, ADC


Features of G 3" MM Series Diaphragm Pulse Jet Valve (similar as CA76MM):

1, Class leading performance coupled with extremely rapid response
2, Cleans more filter area per valve than before
3, NO spring failures
4, 1 MILLION CYCLES guaranteed
5, Proprietary engineering thermoplastic elastomer blend for consistent performance throughout the temperature and pressure range
6, Environmentally endurance tested at the extremes

Pulse Jet Valve Maintenance:

Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled.

Diaphragm and pilot inspection should be conducted annually.

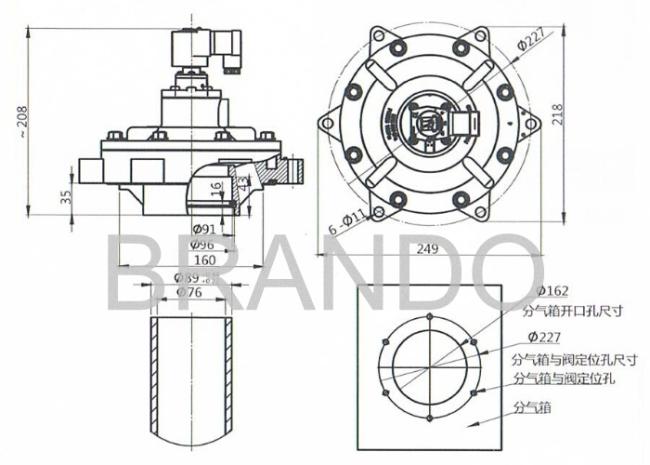

Detailes of G3" Nominal Port Size Diaphragm Pulse Jet Valve and It's Overall Dimensions:

Pulse Valve Characteriestic And Performance

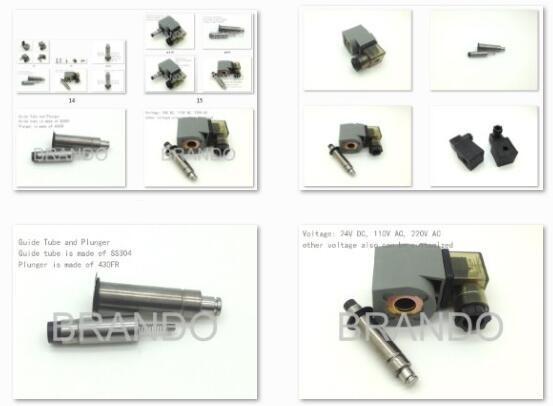

We Alse Sell Solenoid Coil and Armature Assembly and Diaphragm kits, Welcome Your Enquiry:

Welcome your any question, we will response at once.

Pls wirte email to:  brandon.bao@brandopneumatic.com
