Rubber Diaphragm For Water Solenoid Valve 1/2'' 2W160-15 2S160-15
Rubber Diaphragm For Water Solenoid Valve 1/2'' 2W160-15 2S160-15
Diaphragm ( Membrane ) for 3/8'' & 1/2'' solenoid valve 2W160-10, 2S160-10, 2W160-15, 2S160-15. They are 2 way, semi-direct lift valve with a normally closed operating position. This means that there are two ports in which media flows and the valve will open when energized to allow media to pass through. Removing the energy from the valve coil will close it and stop the flow. It works across various media such as water, air, gas, diesel fuel, Freon, weak acids and weak alkali.
Ordering Code of Diaphragm For Water Solenoid Valve:
|
Ordering Code
|
Fitted Valve Code
|
Valve Port Size
|
Material
|
|
2W160
|
2W160-10
|
3/8''
|
NBR
|
|
2S160-10
|
|||
|
2W160-15
|
1/2''
|
||
|
2S160-15
|
|||
|
2W200
|
2W200-20
|
3/4''
|
|
|
2S200-20
|
|||
|
2W250
|
2W250-25
|
1''
|
|
|
2S250-25
|
|||
|
2W350
|
2W350-35
|
1-1/4''
|
|
|
2S350-35
|
|||
|
2W400
|
2W400-40
|
1-1/2''
|
|
|
2S400-40
|
|||
|
2W500
|
2W500-50
|
2''
|
|
|
2S500-50
|
|||
|
Tips: EPDM, FKM all available.
|
|||

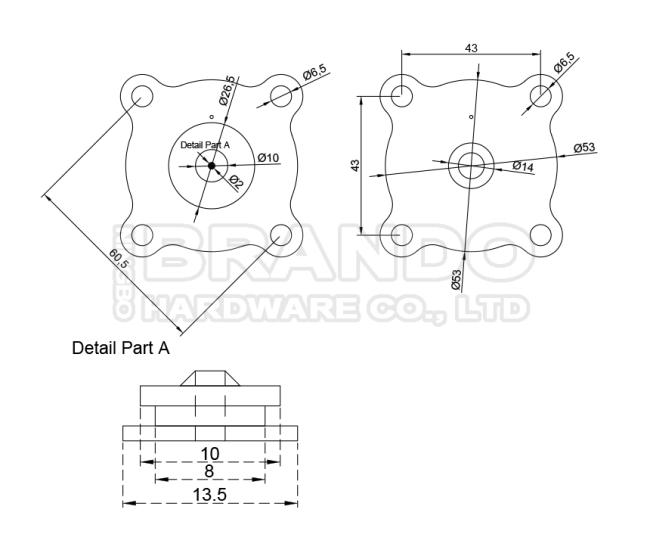

Dimension of 3/8'' & 1/2'' Water Solenoid Valve Diaphragm:
Video of 3/8'' & 1/2'' Water Solenoid Valve Diaphragm:
Pictures of Solenoid Valve Membrane Production:
More Products For Water Solenoid Valve for you to choose:
 |
 |

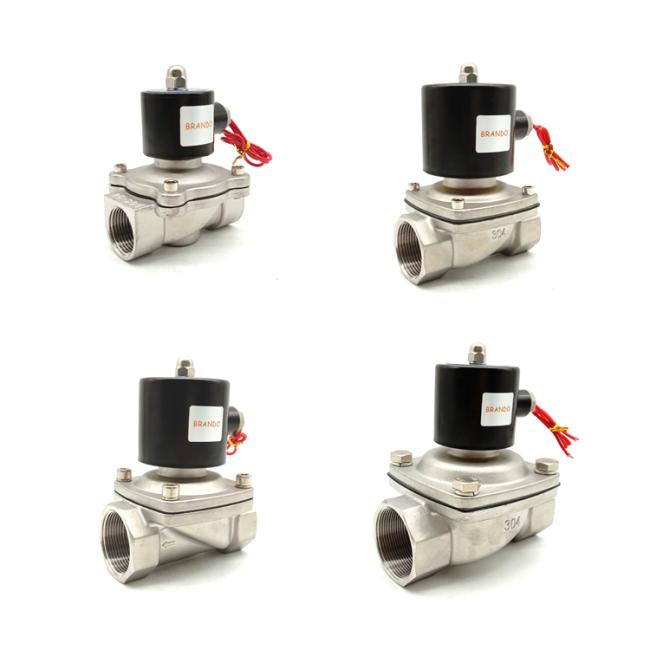

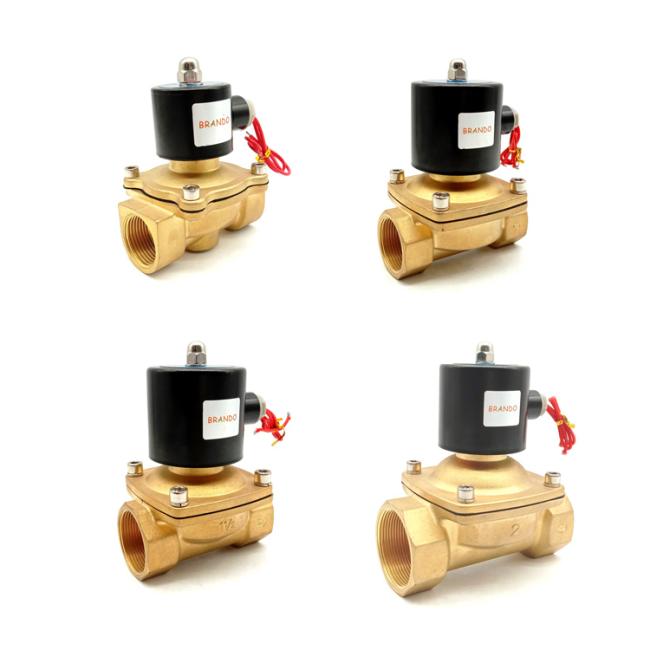

| Brass Water Solenoid Valve | Stainless Steel Water Solenoid Valve |
 |
  |

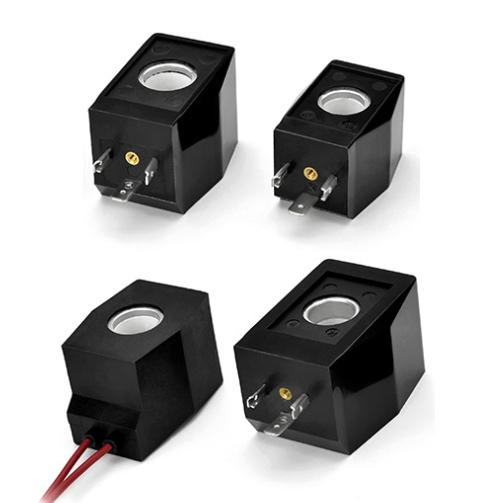

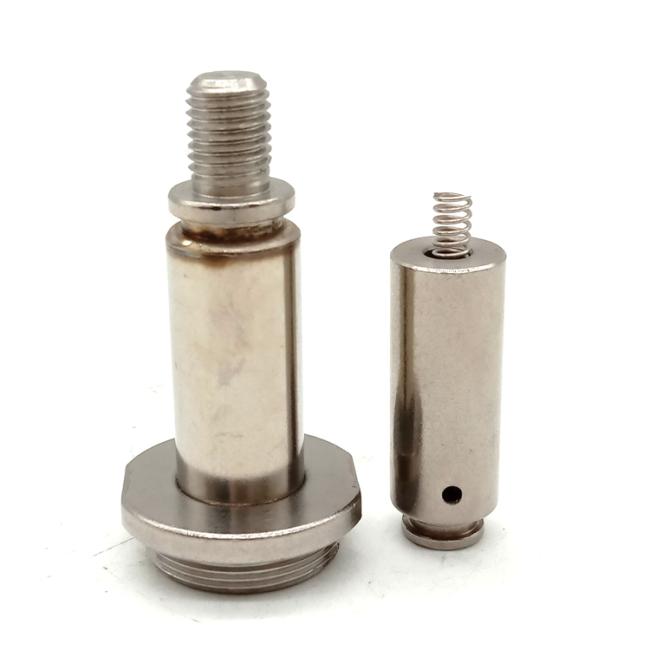

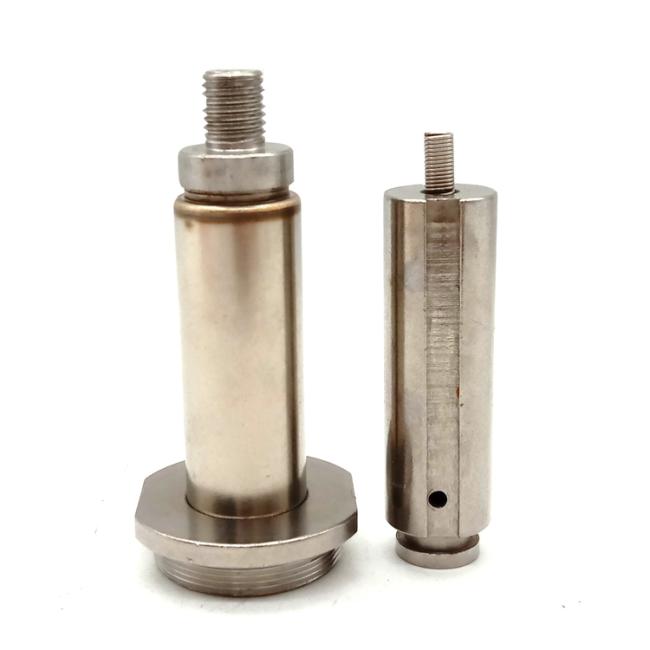

| Solenoid Coil | Solenoid Armature |
