Dresser Nut Pulse Jet Valve 220v Ac Reinforced Nitrile Diaphragm CA25DD
T Series Pulse Jet Valve 220v AC Reinforce Nitrile Diaphragm CA25DD Used For Baghouse Cleaning System
CA25DD Pulse Valve Description:
High performance diaphragm valve CA25DD with dresser nut ports. Available with integral pilot or as remotedly piloted valve. Outlet at 90° to inlet.
CA25DD Pulse Valve Suitable for:
Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.
CA25DD Construction:
| Body and Dresser Nuts | Aluminium (diecast) |
| Ferrule | 304 SS |
| Armature | 430FR SS |
| Seals | Nitrile or Viton (reinforced) |
| Spring | 304 SS |
| Screws | 302 SS |
| Dresser Nut Seals | Nitrile or Vion |
| Diaphragm Seat | PA-6 (standard), Viton coated mild steel or high density PE |
| Coil | Copper |
CA25DD Pulse Jet Valve Operation:
Recommended on time range: 50~500ms
Recommended time between pulses: 1 minute or greater
Maintenance:
Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.

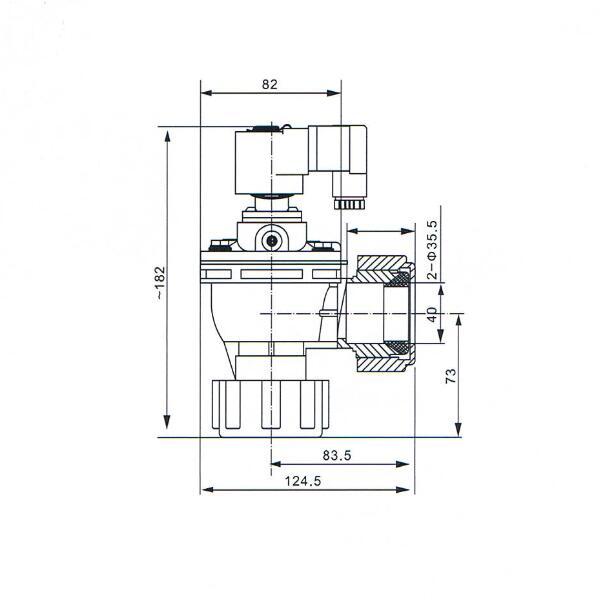

Overall Dimensions of Pulse Valve CA25DD:
