3 Inch 2/2 Way Dust Collector Pneumatic Pulse Valve CA76T 110V AC Normally Close
3 Inch 110V AC 2/2 Way Normally Close Right Angle Aluminium Body Goyen Type CA76T Dust Collector Pneumatic Pulse Valve
Model: CA76T
Place of Origin: Zhejiang,China (Mainland)
Power: Solenoid
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Pilot
Material: Casting
Temperature of Media: Medium Temperature
Media: Gas
Brand Name: GP
Port size: 3"
Thead: G or NPT
Voltage: AC220V, DC24V, AC24V
CA76T Diaphragm:
Effective bonding and Sufficient tensile strength, Reliable sealing, Great anti-corrosion and anti-aging properties, we guarantee at least 1millon times of service life or 3 years.
If you have high temprature requirement, we can choose viton material diaphragm for the valves.
Temperature Range: NBR(-40 ºC---- +82ºC) Viton(-29 ºC--- +232 ºC)

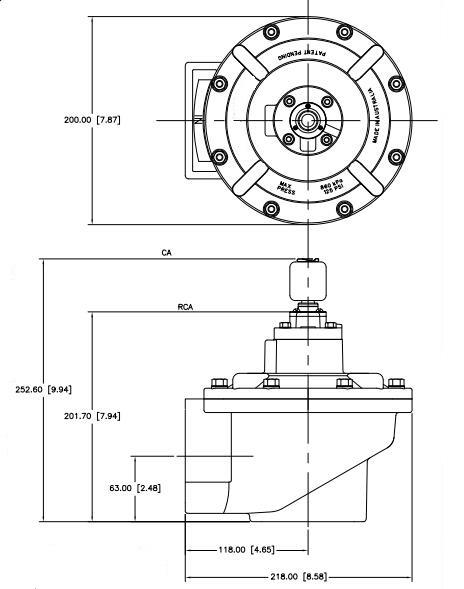

3 Inch Diaphragm Valve CA76T Dimensions:
CA76T Dust collector diaphragm valve SPECIFICATION
| Type | Orifice | Port Size | No Of Diaphragm | KV/CV |
| CA/RCA15T | 15 | 1/2" | 1 | 2.5/2.9 |
| CA/RCA20T | 20 | 3/4" | 1 | 12/14 |
| CA/RCA25T | 25 | 1" | 1 | 20/23 |
| CA/RCA45T | 40 | 1 1/2" | 2 | 44/51 |
| CA/RCA50T | 50 | 2" | 2 | 91/106 |
| CA/RCA62T | 62 | 2 1/2" | 2 | 117/136 |
| CA/RCA76T | 76 | 3" | 2 | 144/167 |
CA76T Dust collector diaphragm valve repair kits
| Model | Nitrile | Viton |
| RCA10T | K1001 | K1002 |
| CA/RCA20T | K2000 | K2007 |
| CA/RCA25T | K2501 | K2503 |
| CA/RCA32T* | K2500 | — |
| CA/RCA35T | K3500 | K3501 |
| CA/RCA40T* | K4000 | — |
| CA/RCA45T | K4502 | K4503 |
| CA/RCA50/62T | K5004 | K5000 |
| CA/RCA76T | K7600 | K7601 |
Why choose us
1: Various style for each products and completely series pneumatic products for you to choose
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
5: Provide free products information.
6. Reliable quality assured and active after-sell service
