4V320-10 BSP 3/8'' Inch 5 Way Automatic Solenoid Valve AC220V Pneumatic Parts

Pneumatic Control Solenoid Valves are an essential part of any pneumatic system. When designing a hydrodynamic loop, it is important to select the right air control valve to adjust the system pressure, flow direction and velocity. If pneumatic valves are too big for your application, you will waste air and money. If it is too small, the actuator will not work properly.

Technical Data of 4V series 5/2 5/3 way pneumatic solenoid valves:

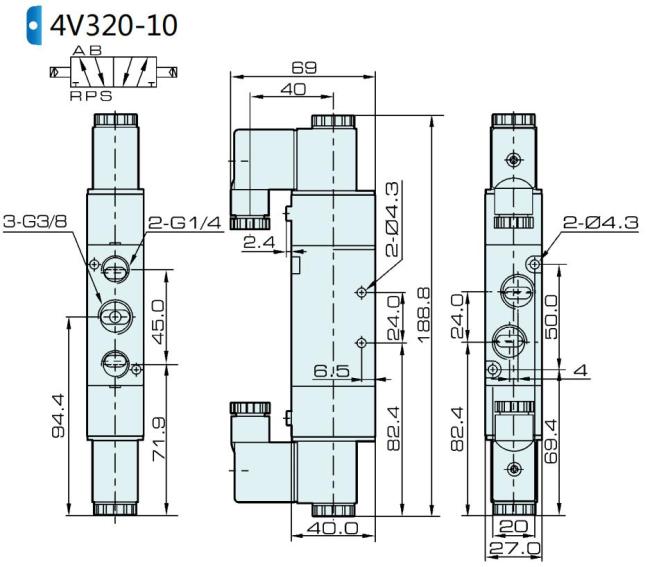

Main dimension of 4V320-10 BSP 3/8'' Inch 5 Way Automatic Solenoid Valves:

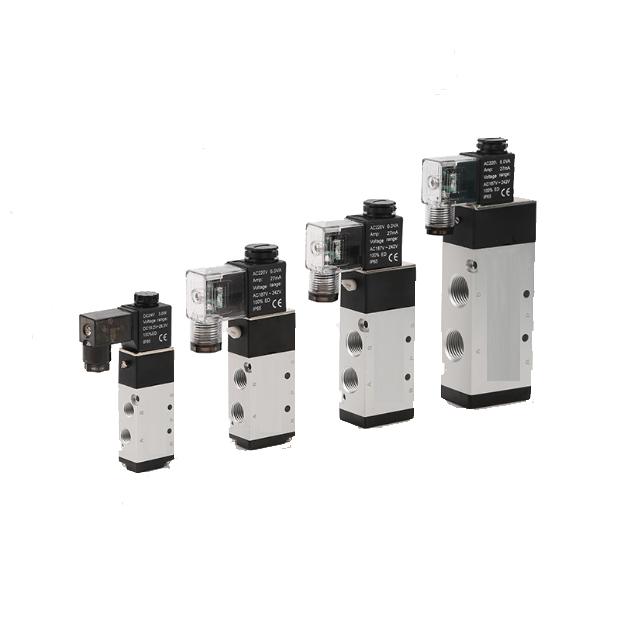

Different size of Pneumatic part electric solenoid air valves (4V300 series)

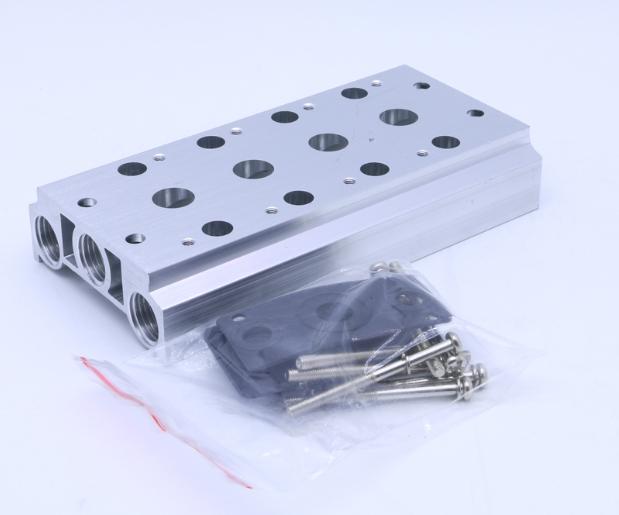

Pneumatic electromagnetic valves with onfluence board:

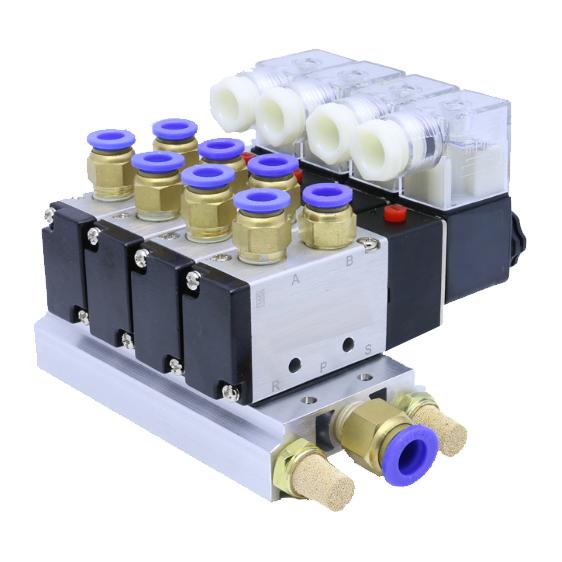

4V320-10 5 way 2 position pneuamtic valves with manifold:

The advantages of 4V320-10 pneumatic solenoid valves:

• Various portable options for easy piping
• Multiple configurations add versatility
• At 125psi, the flow rate ranged from 2.90 to 57scfm
• Lift spool or spool design
• Working pressure ranges from 26 "Hg to 150 psi
• Micro size is ideal for limited space applications
• Color nylon actuator for easy identification
• Long product life
• The coating is resistant to corrosion

Pneumatic solenoid valves can be divided into direct action and pilot two basic types, each type has characteristics and advantages, depending on your requirements.

Pneumatic solenoid valves can be divided into two basic types: direct action and pilot type. Each type has its own characteristics and advantages, depending on your requirements.
Advantages of direct pneumatic solenoid valve:

• It can operate in full pressure range, including low pressure and vacuum.
• The utility model has the advantages of simple structure, reliability and less parts. Low cost.
• They are more tolerant under adverse or unstable media conditions.
• Multi-function, the valve can be customized according to the specific application.

Pilot solenoid valves use direct solenoid valves as pilot operators. Pilot operators are used to move piston lifting valves or larger directional control valves designed with spools. Advantages of pilot pneumatic solenoid valve:

• Mainly used for efficient control of cylinders and air actuators.
• Relative to physical size, high flow rate can be achieved.
• It consumes less current (current intensity) than flow.
• Many configurations are available, especially four-way functions.

Other industry terms for pneumatic solenoid valves include solenoid valves, direct solenoid valves, direct solenoid valves, air-guided solenoid valves, directional control valves for electromagnetic operation, directional control solenoid valves, universal solenoid valves, two-way solenoid valves, three-way solenoid valves and four-way solenoid valves.
