DMF-Y-25 BFEC Submerged Solenoid Pulse Jet Valve For Dust Collector
DMF-Y-25 BFEC Submerged Solenoid Pulse Jet Valve For Dust Collector
Electromagnetic pulse valve, also called diaphragm valve acts as a "switch" for compressed air in the dust clean blowing system for pulse bag filters. It is controlled by the electric signals from the pulse-jet control device. This system cleans the filter bags cluster by cluster with high-pressure blowing to keep the pressure resistance of the baghouse within a pre-set range, and thus ensure the processing capability and the dust-collecting efficiency of the baghouse.
Technical Data of Submgered Pulse Jet Valves:
|
Model Number
|
DMF-Y-25
|
DMF-Y-40S
|
DMF-Y-50S
|
DMF-Y-62S
|
DMF-Y-76S
|
DMF-Y-102S
|
|
Port Size (Inch)
|
1''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
4''
|
|
Diaphragm Number
|
1
|
2
|
||||
|
Diaphragm Material
|
NBR, FKM
|
|||||
|
Body Material
|
Aluminum Alloy
|
|||||
|
Pressure Range
|
0.1 to 0.8 MPa
|
|||||
|
Voltage
|
24VDC, 110VAC, 220VAC
|
|||||

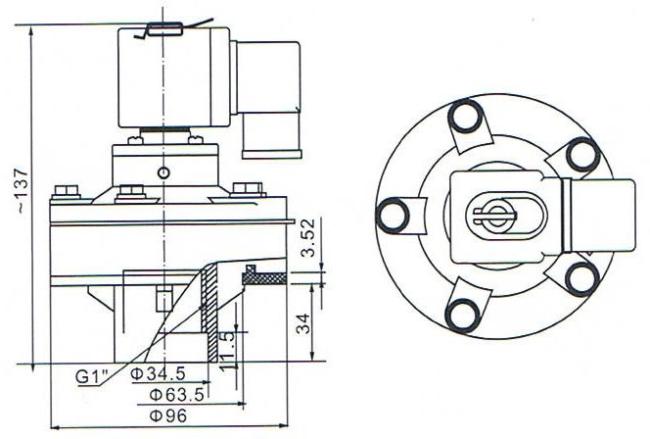

Dimension of DMF-Y-25 Pulse Jet Valve:
Video of DMF-Y-25 Pulse Jet Valve:
More BFEC Pulse Valves for you to choose:
 |
 |
 |
 |
| Right Angle Type | Quick Mount Type | Straight Through Type | Submerged Type |
 |
 |
 |
 |
| Diaphragm | Solenoid Coil | Solenoid Armature | Pulse Controller |
