3/4'' RCA20T Goyen Type Remote Pilot Pulse Jet Valve RCA20T000
3/4'' RCA20T Goyen Type Remote Pilot Pulse Jet Valve RCA20T000
Dust Collector Pulse Valves are designed for use in filtering systems of dust collectors. They are most commonly used to clean cartridge filters, ceramic filters, and fibre filters. The solenoid valves are based on a pilot operated principal (or indirect acting principal) with the purpose of providing a large volume of compressed air as a short pulse when energised. Pulse Valves feature a strong but light-weight diaphragm with a tight shut off and a large orifice to provide the maximum possible flow and fast operating speed. The bodies are made from lightweight aluminium and there are options for seal types, voltages and port sizes.
Technical Data of T Series Pulse Jet Valves:
|
Model Number
|
RCA15T
|
RCA20T
|
RCA25T
|
RCA35T
|
RC45T
|
RCA50T
|
RCA62T
|
RCA76T
|
|
Office Size
(mm)
|
15
|
20
|
25
|
35
|
45
|
50
|
62
|
76
|
|
Port Size
(Inch)
|
1/2''
|
3/4''
|
1''
|
1 1/2''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
|
Diaphragm Number
|
1
|
2
|
||||||
|
Pilot Size
|
1/8'', 1/4''
|
|||||||
|
Working pressure
|
0.35 to 0.85 MPa
|
|||||||
|
Diaphragm Material
|
NBR, FKM, EPDM
|
|||||||
|
Body Material
|
Aluminum Alloy
|
|||||||
|
Valve Structure
|
Right Angle (Outlet is at 90° to Inlet), Threaded Port
|
|||||||
Ordering Code of T Series Pulse Jet Valve:

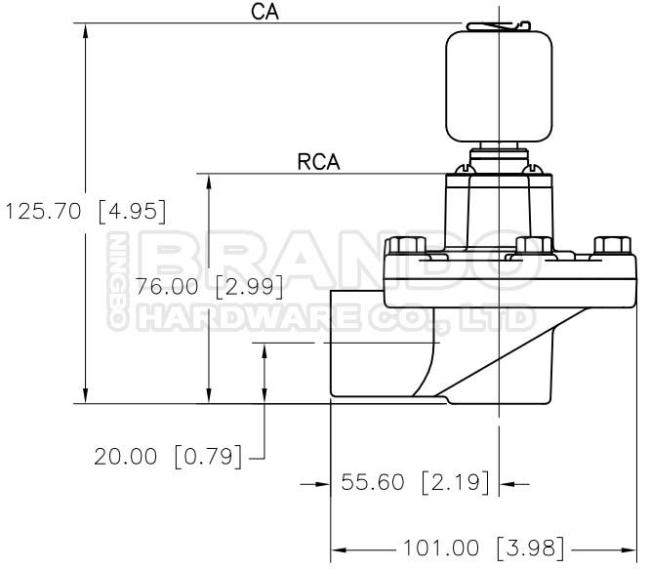

Main Dimension of RCA20T Pulse Jet Valve:
More Goyen Type Pulse Valves for you to choose:
 |
 |
 |
 |
| T Series | DD Series | FS Series | MM Series |
 |
 |
 |
 |
| RCA Series | Solenoid Coil | Solenoid Armature | Diaphragm |
