1'' CA25T Goyen Type T Series Pulse Jet Valve For Dust Collector
1'' CA25T Goyen Type T Series Pulse Jet Valve For Dust Collector
The pulse valve can provide short-term and rapid air release to release the dust particles collected on the filter bag in the dust collection system. It has a variety of specifications and types and is suitable for most dust collector system valves. BRANDO has designed and manufactured a series of dust collector valves to meet any requirement. Our flexibility, dynamism, and technical expertise allow us to meet even the most demanding requirement in a short timespan. Moreover, the valves opening and closing allow you to optimise air and energy consumption.
Technical Data of T Series Pulse Jet Valves:
|
Model No
|
CA15T
|
CA20T
|
CA25T
|
CA35T
|
CA45T
|
CA50T
|
CA62T
|
CA76T
|
|
Office Size
(mm)
|
15
|
20
|
25
|
35
|
45
|
50
|
62
|
76
|
|
Port Size
(Inch)
|
1/2''
|
3/4''
|
1''
|
1 1/2''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
|
Diaphragm Number
|
1
|
2
|
||||||
|
Working pressure
|
0.35 to 0.85 MPa (5 to 125 PSI)
|
|||||||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
|||||||
|
Diaphragm Material
|
NBR, FKM, EPDM
|
|||||||
|
Body Material
|
Aluminum Alloy
|
|||||||
|
Valve Structure
|
Right Angle (Outlet is at 90° to Inlet), Threaded Port
|
|||||||
Ordering Code of T Series Pulse Jet Valve:

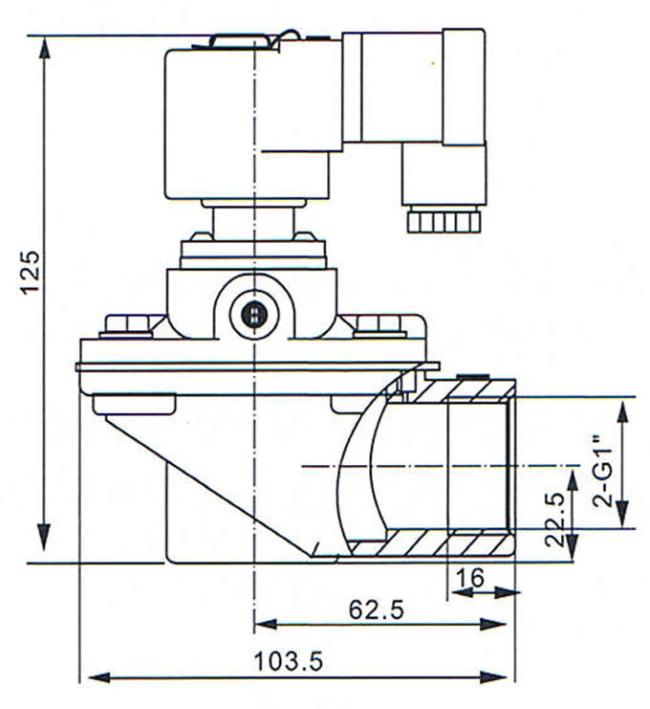

Main Dimension of CA25T Pulse Jet Valve:
Video of CA25T Pulse Jet Valve:
More Goyen Type Pulse Valves for you to choose:
 |
 |
 |
 |
| T Series | DD Series | FS Series | MM Series |
 |
 |
 |
 |
| RCA Series | Solenoid Coil | Solenoid Armature | Diaphragm |
