3V1-M5 Airtac Type 3/2 Way Solenoid Air Valve 220VAC 110VAC 24VDC 12VDC
3V1-M5 Airtac Type 3/2 Way Solenoid Air Valve 220VAC 110VAC 24VDC 12VDC
Product Features of 3V1 Series Solenoid Valves:
1. Direct acting type and normally closed mode, flexible in direction change
2. No need to add oil for lubrication
3. Several valves can be coupled together as a series to save installation space - need coupling screw assembly(s) P30/P31
4. Affiliated manual devices are equipped to facilitate installation and debugging
5. Several standard voltage grades are optional
Technical Data of 3V1 Series Solenoid Valve:
|
Model
|
3V1-M5
|
3V1-06
|
|
Fluid
|
Air (to be filtered by 40 μm filter element)
|
|
|
Port Size
|
M5
|
1/8''
|
|
Acting
|
Direct Acting
|
|
|
Valve Type
|
3 Port 2 Position
|
|
|
Lubrication
|
Not required
|
|
|
Operating Pressure
|
0 to 0.8 MPa (0 to 114 psi)
|
|
|
Proof Pressure
|
1.2 MPa (175 psi)
|
|
|
Temperature
|
-20 to +70℃
|
|
|
Orifice Size
|
1.2mm
|
|
|
Body Material
|
Aluminum Alloy
|
|
|
Voltages
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
|

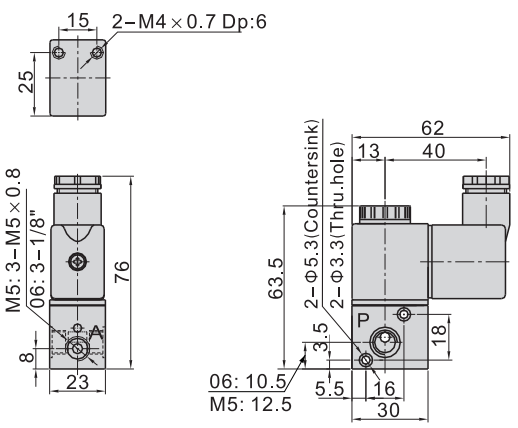

Main Dimension of 3V1 Series Solenoid Valve:
Production Video of Pneumatic Valve:
