BSPT 1/8" 4V130C-06 Airtac Type Pneumatic Solenoid Air Valve 5 Way 3 Position DC12V AC110V

BSPT 1/8'' 4V130C-06 Airtac Type Pneumatic Solenoid Air Valve 5 Way 3 Position DC12V AC110V

The 4V130C-06 is a directional control pneumatic solenoid valve with a five way & three position (P = Pressure, A = Outlet, R = Exhaust for port A), which is same with Airtac brand. Five-way, three-position valves are generally used to fully extend a double acting (air return) cylinder, or in applications with similar operation. The center position can be configured as Closed Center (to passively stop a cylinder in its current position), Exhaust Center (to allow the cylinder to freely move, i.e. be hand-adjusted), or Pressure Center (to actively stop a cylinder in its current position, with pressure on both ends).

YouTube video of 1/8'' 4V130C-06 AirTAC Type Pneumatic Solenoid Valve:

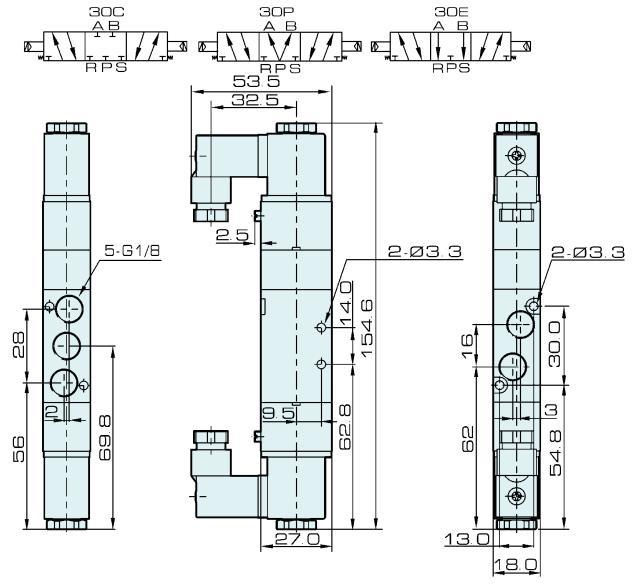

Main dimension of G1/8'' 4V130C-06 Airtac Type 5/3 Way Solenoid Valve:

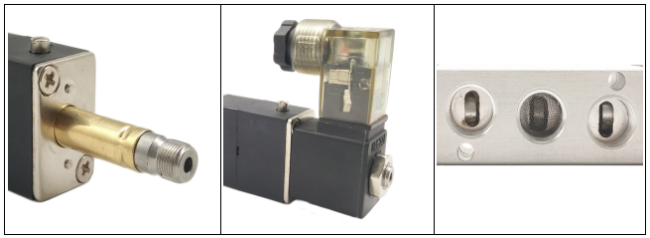

Details enlargement of 4V130C-06 5 Way 3 Position Solenoid Air Valve:

Technical data of 4V Series Aluminum Alloy Pneumatic Solenoid Valves:

Factory Production display of 4V Series Pneumatic Solenoid Valves:

Features:
1. Pilot mode: internal pilot or external pilot.
2. Sliding column structure: good sealing and sensitive response.
3. The three-position solenoid valve has three central functions for you to choose from.

4. The dual-control solenoid valve has a memory function.
5. The inner hole adopts special processing technology, which has low friction and wear, low starting pressure and long service life.
6. It can form an integrated valve group with the base to save installation space.
7. Equipped with attached manual equipment to facilitate installation and commissioning.
8. Several standard voltage levels are optional.
