FEATURES:
1. The pulse diaphragm pulse valves 2 1/2 " SCG353A051 threaded are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to provide reliable and economical operation,Integral compression fittings for fast, easy, secure installation
2. The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
3. Valves can be supplied according to ATEX Directive 94/9/EC for non-electrical equipment by using suffix GD,The components satisfy all relevant EC directives
INSTAllATION:
| 1 | The valves can be mounted in any position without affecting operation |
| 2 | Threaded pipe connection is: G = G (ISO 228/1) or compression fittings |
| 3 | When connecting piping or tubing to the 1/8 " connection in the valve bonnet, the remote ASCO pilot valve should be mounted as close as possible to the main pulse valve. Connection tubing lengths of 3 meter or less have little effect on the pulse response. Installations with over 3 meter of tubing must be tested under actual operating conditions. Tubing with Ø 6 mm O.D. is recommended for all installations |
| 4 | For compression fitting types tightness is achieved by the compressed gasket on the blow tube |
| 5 | Other pipe threads are available on request |
| 6 | Installation/maintenance instructions are included with each valve |
| 7 | Spare parts kit and replacement coils are available |
ASCO Type Series Model Specification:
| Model NO. | SCG353A043 | SCG353A044 | SCG353A047 | SCG353A050 | SCG353A051 |
| Port Size | G3/4'' | G1'' | G1-1/2'' | G2'' | G2-1/2'' |
| Normal Size | φ20mm | φ25mm | φ40mm | φ50mm | φ62mm |
| Working Pressure | 0.3 to 0.8MPa | ||||
| Environment Temperature | -5 to +55℃ | ||||
| Relative Humidity | ≤85% | ||||
| Operating Medium | Dry clean compressed air | ||||
| Service Life | Over one million times | ||||
| Voltages | AC24V, AC110V, AC220V, DC24V | ||||

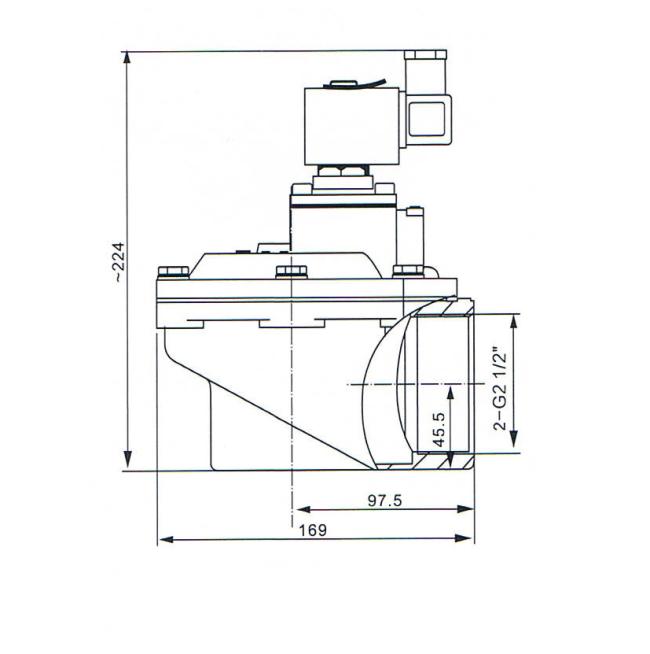

Overall Dimensions of ASCO Pulse valve
ASCO Type Electromagnetic Pulse Valve Detail:

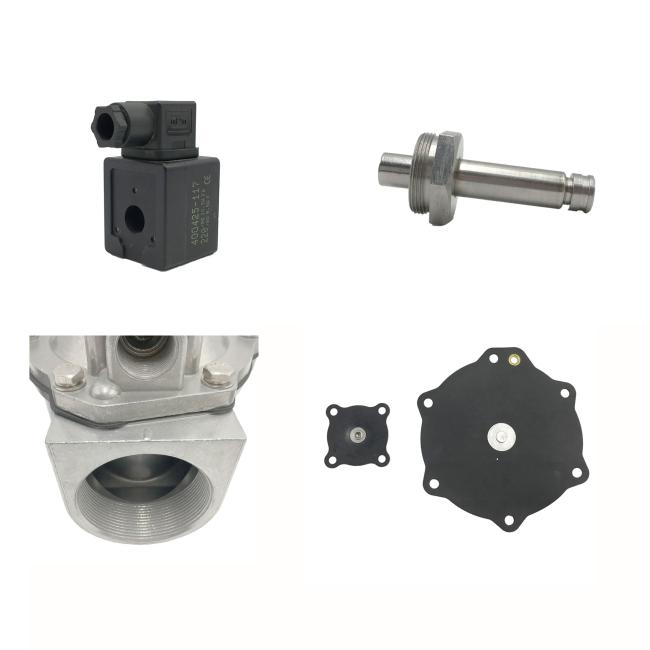

Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)
Pulse Valve Internal Structure and Main Parts:
| Part Name | Material |
| Solenoid coil | high quanlity enamelled wire |
| Armature assembly | SS304, 430FR |
| Small common cap | ADC aluminum |
| Diaphragm | NBR (nitrile, buna-n) |
| Top end cap | ADC aluminum |
| Big spring | SS304 |
| Screws | SS302 |
| Seal | NBR, Viton, all can be customized |
| Main body | ADC aluminum |
Advantages of ASCO pulse valve:
1, mainly designed for dust collecting application, with characteristic of high flow value, long working life and fast switch response, to ensure the steady function of dust removing system
2, the diaphragms with high quality and proffessional design for pulse valve working life
