Goyen Type 1'' Outlet 1-1/2'' Inlet Flanged Valve for Reverse Pulse Jet Systems In Dust Collectors

CA/RCA-FS Series right angle with inlet port flange connection solenoid pulse jet valve, Outlet connect with blow tube directly.Outlet at 90° to inlet.
The inlet diameter of the FS valve is larger than the outlet, and a venturi injection structure is formed in the valve body, so it has the characteristics of low resistance, fast response and high Cv value.

Specification of CA25FS Solenoid Pulse Valve:

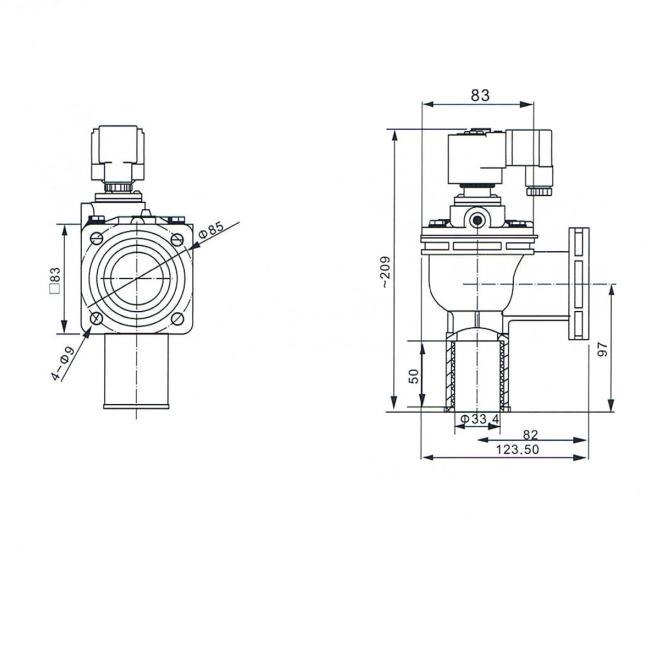

Overall Dimension of CA25FS Dust Collector Valve:

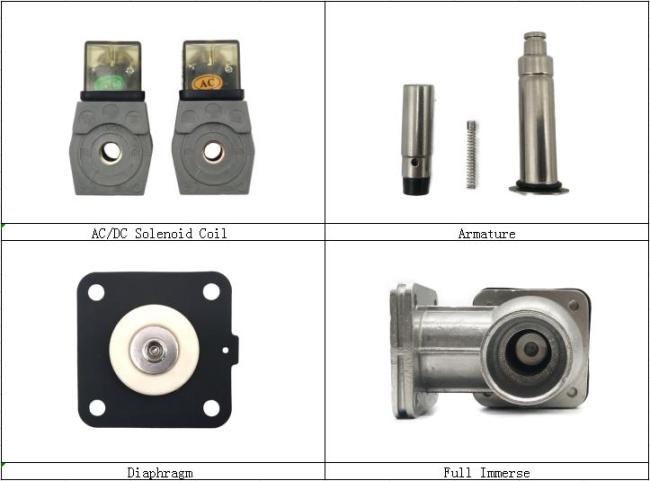

Deatails of CA25FS Diaphragm Electromagentic Pulse Valve:

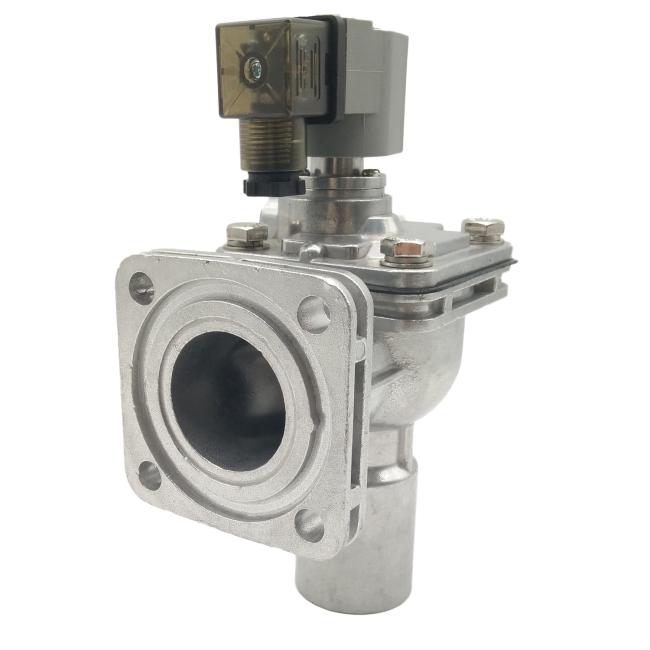

Connecting surface of CA25FS Solenoid Pulse Valve:

Benefits of Goten Type Flanged Valve :

-For noxious substance control and environmental dust management
Cost savings
-Increased pulse efficiency, reduced energy consumption
-Durable materials and wide temperature range enhance lifespan
-Longer filter life, lower dust collector OPEX
Compliance
-With environmental and health & safety regulations
Ease of installation
-No welding required with 90° connections directly onto square tanks
-Camlock adapter available for attachment to round tanks

How do pulse clean system work?

A reverse pulse (often called a pulse jet or reverse jet) filter cleaning system is a simple action that has significant results.
A simple explanation of a reverse pulse filter cleaning system is as follows:
in normal dust collector operation, air flows from the outside of the filter media to the center of the filter.
The dust is filtered out and left on the outside surface of the filter.
To clean off this dust, a blast of compressed air is shot down the center of the filter and works outward taking the dust off of the surface of the filter.
In a downflow dust collector, the dust is captured by that downward airflow and eventually deposited in the collection bin.

Maintenance:

Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled.
Diaphragm and pilot inspection should be conducted annually.
