Goyen Type G1 Inch Dust Collector Solenoid Valve With Dresser Nut cA/RCA25DD
Goyen Type G1 Inch Dust Collector Solenoid Valve With Dresser Nut CA/RCA25DD
Goyen DD series is a kind of diaphragm valve with dresser nut. Usually used in baghouse (as known as a baghouse filter, bag filter, or fabric filter) is an air pollution control device and dust collector that removes particulates or gas released from commercial processes out of the air. Diecast aluminum body, seals and diaphragm material can be customized. In addition to saving compressed air, high-speed operation helps provide shock waves to remove dust from the filter bag.High flow, long life and fast diaphragm action enable reliable and economical operation.
Specification:
| Model No. | CA25DD |
| Port Size | G1'' |
| Nominal Size | 25mm |
| Number of Diaphragm | 1 |
| Pressure | 0.3~0.8Mpa |
| Temperature | -5~+55℃ |
| Connection Type | Right angle with dresser nut |
| Body Material | Aluminum ADC12 (diecast) |
| Seal Material | NBR(common, all available) |
| Voltage | AC220V, AC110V, AC24V, DC24V |
Overall Dimension of right angle diaphragm valve with dresser nut:

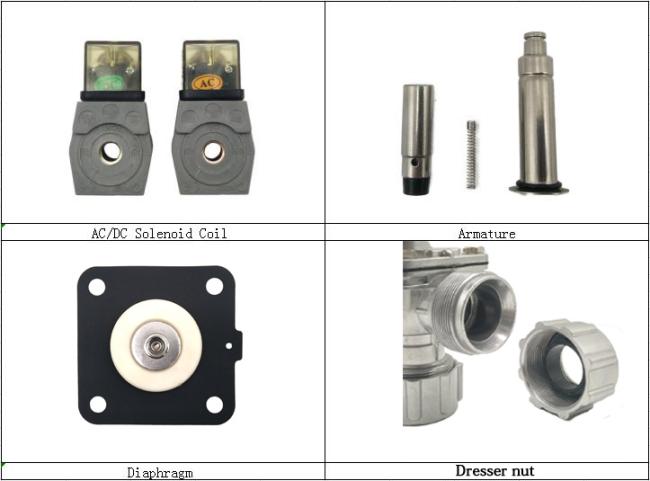

Details about Goyen Type DD series Solenoid Valve:
Main Type of Goyen Solenoid Pulse Valve:
1.T series pulse jet valve
High performance diaphragm valve with threaded ports. Available with integral pilot or as remotely piloyed valve. Outlet at 90 degree to inlet.
2.DD series pulse jet valve
High performance diaphrgam valve with dresser nut ports. Available with integral pilot or as remotely piloted valve. Outlet at 90 degree to inlet.
3.FS series pulse jet valve
Very high performance diaphragm valve with flanged inlet port and slide seal outlet port for easy valve installation and removal. Available with integral pilot or as remotely piloted valve. Outlet at 90 degree to inlet.
4.MM series pulse valve
Very high performance diaphragm valve designed to be mounted directly into thecompressed air manifold.
How to choose pulse valve:
1. According of Port size ,choose the match pulse valve .
2. According of power supply , Choose AC or DC solenoid pulse valve.
3. According of the working environment, choose corrosion resistance according to safety requirements.Waterproof solenoid valve should be selected in the environment with high relative humidity and water drops and rain.
4. According to the fulid temperature, choose the seals and diaphragm materials.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Maintenance:
1. Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies.
2. Pressure and power should not be reapplied until the valve has been fully assembled.
3. Diaphragm and pilot inspection should be conducted annually.
| Model | Nitrile | Viton | Low Temperature -60°C (–76°F) MIN. | Includes |
| CA/RCA25DD | K2501 | K2503 | K2504 | Diaphragm kits include main and secondary diaphragms(where required) and all springs |
