K5004 M1638A Goyen Type Buna Diaphragm Valve Repair Kit For 2" CA/RCA50T 2 1/2" CA/RCA62T Diaphragm Valve
K5004 M1638A Goyen Type Buna Diaphragm Valve Repair Kit
This is K5004 M1638A buna diaphragm kit, used in Goyen 2'' CA50T & RCA50T, 2 1/2'' CA62T & RCA62T diaphragm valves. Because the diaphragm of pulse valve is a flexible mechanism which needs to open and close frequently to control the air flow, it requires good flexibility and as high sealing as possible.
Working Principle: When different pressure (or force) acts on both sides of the diaphragm of the pulse valve, the diaphragm moves to the lower side of the pressure, resulting in the displacement of the center of the diaphragm.
Applications: The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
YouTube video of K5004 M1638A Goyen Type Buna Diaphragm Kit:

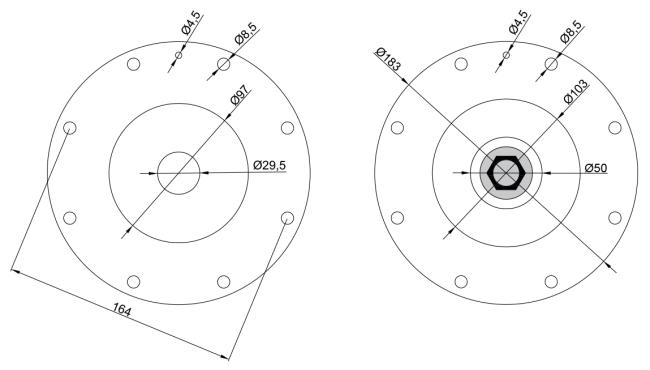

Main dimension of Goyen Type K5004 M1638A Diaphragm Repair Kits:

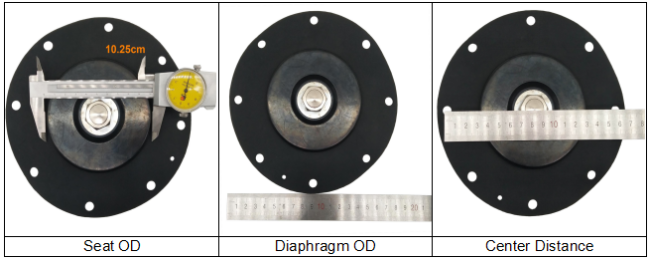

Details display of CA/RCA50 CA/RCA62 Diaphragm Valve Repair Kit:
Available Models of Goyen Type Buna/Buna Diaphragm Repair Kits:
| Valve Model | Series | Note | Pipe Size | Repair Kit |
| CA/RCA20 | DD, T | * | 3/4'' | K2002 (M764) |
| CA/RCA25 | DD, FS, MM, T | * | 1'' | K2502 (M736) |
| CA/RCA32 | – | * | 1 1/2'' | K2522 (M736) |
| CA/RCA35 | T | * | 1 1/2'' | K3502 (M1591) |
| CA/RCA40 | DD, MM | * | 1 1/2'' | K3502 (M1591) |
| CA/RCA45 | DD, FS, T | *** | 1 1/2'' | K4504 (M2187) |
| CA/RCA50 | T |
*** 1B |
2'' | K5004 (M1638A) |
| CA/RCA50 | T |
*** 3B |
2'' | K5004 (M1638A) |
| CA/RCA62 | T |
*** 1B |
2 1/2'' | K5004 (M1638A) |
| CA/RCA62 | T |
*** 3B |
2 1/2'' | K5005 (M1639A) |
| CA/RCA76 | MM, T |
*** 3B |
3'' | K7600 |
| CA/RCA76 | MM, T |
*** LP |
3'' | K7604 |
| CA/RCA76 | MM, T |
*** 1B LP |
3'' | K7610 |
| CA/RCA102 | MM | *** | 4'' | K10203 |
| CA/RCA8 | MM | *** | 8'' | K8000 |
* Single Valve
** Older version with Single Valve
*** Double Valve
1B 1 Bleed Hole
3B 3 Bleed Holes
LP Low Pressure
Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.
Factory Production Pictures of Solenoid Valve Diaphragm Kits:
The diaphragm consists of one or more layers coated on both sides. Diaphragms of different materials can be manufactured according to the requirements of use. The working temperature and pressure range of the diaphragm itself depends on the type of rubber, fabric and structure. The diaphragm can work at -10~80℃, 0.4~0.8 MPa, and the fluororubber and silicone rubber diaphragm can work at -80~232℃.
