AirTAC Type 4V310-08 5/2 Way 1/4" Single Coil Pneumatic Solenoid Valve With Aluminum Alloy Body AC220V DC24V
AirTAC Type 4V310-08 5/2 Way 1/4'' Single Coil Pneumatic Solenoid Valve With Aluminum Alloy Body AC220V DC24V
A 5/2 way directional valve from the name itself has 5 ports equally spaced and 2 flow positions. It can be used to isolate and simultaneously bypass a passage way for the fluid which for example should retract or extend a double-acting cylinder. There are variety of ways to have this valve actuated.
The pilot-operated 5/2-way solenoid valve pushes the valve stem in the valve by the intake pressure from the pilot hole to realize the gas (liquid) reversing function. Pilot-operated 5/2-way solenoid valves are general purpose for both air and liquid due to different structure and sealing form.
Youtube Video of 4V310-08 Pneumatic Directional Valve :
Ordering code:
| Model | 4V | 2(3) Position 5 Way |
| Code | 3 | 300 Series |
| Valve Type | 10 |
10:Single solenoid 5/2 way 20:Double solenoid 5/2 way 30C:Double solenoid 5/3 way closed center 30E:Double solenoid 5/3 way exhaust center 30P:Double solenoid 5/3 way pressure center |
| Port Size | 08 |
M5:M5x0.8 06:1/8'' 08:1/4'' |
| Voltage | - |
A: AC220V B: DC24V C: AC110V E: AC24V F: DC12V |
| Electrical Entry | - |
Blank:Terminal I:Grommet |
| Thread Type | - |
Blank:PT G:G T:NPT |
Specification:
|
Model
|
4V310-08
4V320-08
|
4V330C-08
4V330E-08
4V330P-08
|
4V310-10
4V320-10
|
4V330C-10
4V330E-10
4V330P-10
|
|
Fluid
|
Air(to be filtered by 40 μ m filter element)
|
|||
|
Acting
|
Internal pilot or external pilot
|
|||
|
Port Size
|
In=Out=Exhaust=1/4''
|
In=Out=3/8'' Exhaust=1/4''
|
||
|
Orifice Size
|
25.00 mm2 (Cv=1.40)
|
18.00 mm2 (Cv=1.00)
|
30.00 mm2 (Cv=1.68)
|
18.00 mm2 (Cv=1.00)
|
|
Valve Type
|
5 port 2 position
|
5 port 3 position
|
5 port 2 position
|
5 port 3 position
|
|
Operating Pressure
|
0.15~0.8MPa(21~114psi)
|
|||
|
Proof Pressure
|
1.5MPa(215psi)
|
|||
|
Temperature ℃
|
-20~70
|
|||
|
Material of Body
|
Aluminum alloy
|
|||
|
Max. frequency
|
4 cycle/sec
|
4 cycle/sec
|
4 cycle/sec
|
4 cycle/sec
|

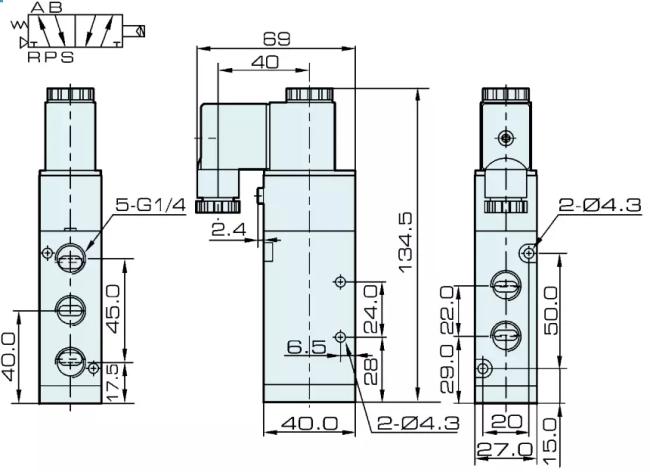

Overall Dimension:

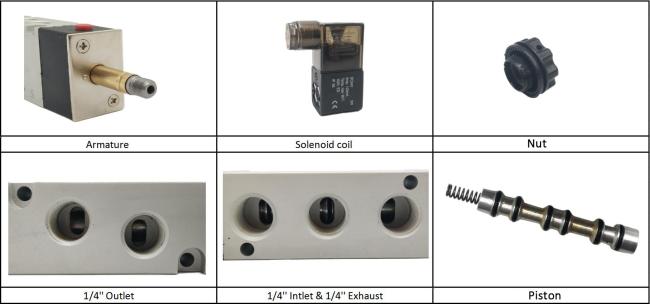

Details :
Product Features:
1. High-strength aluminum alloy botton cover 2. One-time machining of valve lever by CNC, high precision
3. Valve body was machining by CNC, clean and beautifull
4. spacial processing of inner hole, small friction resistance and low starting pressure
5. High-precision pilot accessories, excitation time of only 0.05 seconds
6. imported seals, the life up to 10 millions of times
7. Aluminum alloy piston is not easy to damage
8. Embedded copper nut not easy to loose
9. with a manual device for installaton and testing
10. Copper coil has avariety of voltage available for selection
