1/2" Water ABS Plastic Solenoid Valve 2 Way Normally Closed 12V 24V DC 220V AC

Price Negotiable

MOQ: 1 pc

Delivery Time: 4-8 days

Brand: Brando

Product Description

1/2'' Water ABS Plastic Solenoid Valve 2 Way Normally Closed 12V 24V DC 220V AC

These plastic solenoid valves are an affortable but amazingly robust and dependable choice for a variety of water, air, and other general purpose liquid applications. Media being controlled must be compatible with ABS plastic, NBR rubber, and Stainless Steel. These plastic solenoid valves are semi-direct acting, making them suitable for many low differential pressure applications where traditional, pilot operated, solenoid valves may not perform reliably.

Product Features:

1. Port Size: 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2''; Thread Port (G, NPT).

2. Orifice Size: 15mm, 20mm, 25mm, 32mm, 40mm, 50mm.

3. Function: 2 Way, Normally Closed.

4. Body Material: ABS

5. Seal Material: NBR

6. Working Medium: Water, Liquid, Gas, Air

7. Fluid Temperatrue: -5 to +80℃

8. Voltages: 110VAC, 220VAC, 12VDC, 24VDC, other voltages can be customized.

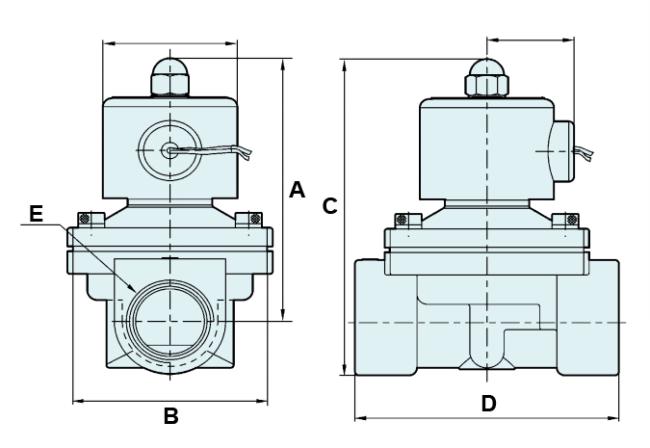

Main Dimension of Plastic Solenoid Valve:

2W Series	B	C	D	E
2W160-15	61	115	69	G1/2''
2W200-20	61	120	80	G3/4''
2W250-25	80	130	99	G1''
2W350-35	80	136	117	G1-1/4''
2W400-40	104	174	120	G1-1/2''
2W500-50	105	185	150	G2''

Technical Data of Plastic Solenoid Valve:

2W Series	2W025-08	2W040-10	2W160-15	2W200-20	2W250-25	2W350-35	2W400-40	2W500-50
Orifice Size	2.5	4	15	20	25	35	40	50
Port Size	1/4''	3/8''	1/2''	3/4''	1''	1-1/4''	1-1/2''	2''
Medium	Water, Air, Liquid, Gas
Action	Direct Acting		Semi-Direct
Function	2 Way, Normally Closed
Fluid Viscosity	20 CST below
Pressure Range	0 to 1.0 Mpa
Temp. Range	-5 to +80℃
