AirTAC Type 5/2 Way 1/8'' Double Coil Pneumatic Solenoid Valve 24VDC 220VAC 4V120-06 With Flying Leads

AirTAC Type 5/2 Way 1/8'' Double Coil Pneumatic Solenoid Valve 24VDC 220VAC 4V120-06 With Flying Leads

Two-position three-way solenoid valves are usually used with single-acting pneumatic actuators. Two positions are controllable at two positions: on-off, three-way ventilation is provided by three channels. In general, one channel is connected to the air source, and the other two are connected. One channel is connected to the air inlet of the actuator, and one is connected to the exhaust port of the actuator. The specific working principle can refer to the working principle diagram of the single-acting pneumatic actuator.

4V Series Solenoid Valve Features:
1. Pilot-oriented mode: optional for internal or external;
2. Structure in sliding column mode: good tightness and sensitive reaction;
3. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life;
4. It is available to form integrated valve group with the base to save installation space;
5. Affiliated manual devices are equipped to facilitate installation and debugging;
6. Several standard voltage grades are optional;

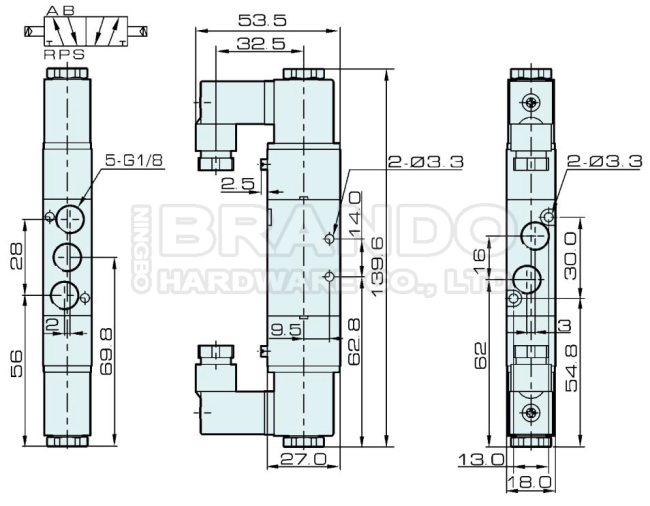

Dimension of 4V120-06 Pneumatic Solenoid Valve:

Specifications of 4V Series Internal Pilot Operated Pneumatic Valve:

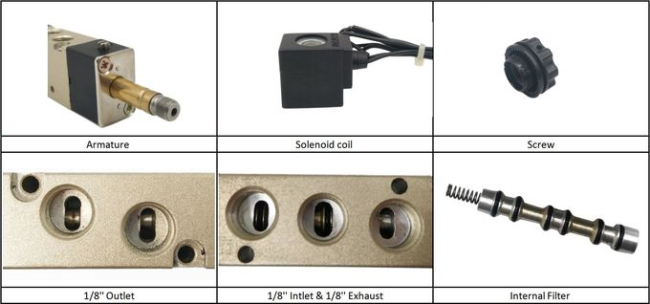

Details:

Installation Instructions:
1. Before installing, be sure the valve hasn’t been damaged via transportation.
2. It’s suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
