AirTAC Type 5/3 Way BSPT 1/8'' Pneumatic Solenoid Valve 24VDC 220VAC 4V130C-06

AirTAC Type 5/3 Way BSPT 1/8'' Pneumatic Solenoid Valve 24VDC 220VAC 4V130C-06

The 4V130C-06 is a directional control pneumatic solenoid valve with a five way & three position (P = Pressure, A = Outlet, R = Exhaust for port A), which is same with Airtac brand. Five-way, three-position valves are generally used to fully extend a double acting (air return) cylinder, or in applications with similar operation. The center position can be configured as Closed Center (to passively stop a cylinder in its current position), Exhaust Center (to allow the cylinder to freely move, i.e. be hand-adjusted), or Pressure Center (to actively stop a cylinder in its current position, with pressure on both ends).

4V Series Solenoid Valve Features:
1. Pilot-oriented mode: optional for internal or external;
2. Structure in sliding column mode: good tightness and sensitive reaction;
3. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life;
4. It is available to form integrated valve group with the base to save installation space;
5. Affiliated manual devices are equipped to facilitate installation and debugging;
6. Several standard voltage grades are optional;

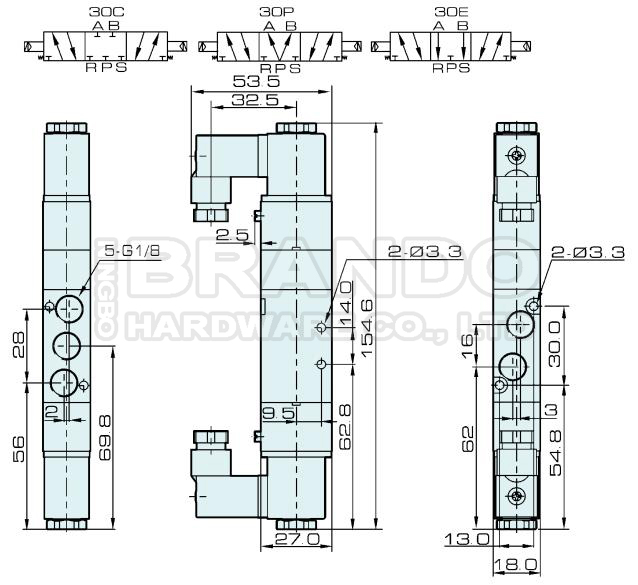

Dimension of 4V130C-06 Pneumatic Solenoid Valve:

Specifications of 4V Series Internal Pilot Operated Pneumatic Valve:

Installation Instructions:
1. Before installing, be sure the valve hasn’t been damaged via transportation.
2. It’s suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
