1/4'' 8mm Female Elbow Push To Quick Connect Pneumatic Hose Fittings

Brando' comprehensive portfolio of plastic push-to-connect fittings for industrial low pressure fluids transfert, which is the most intuitive and efficiency way of connecting tubes to a fitting in order to create a fluid distribution network. Thanks to its quick installation, versatility and exceptional lifespan, the plastic push-in fitting contributes to improving machine efficiency and cost reduction. All of our plastic push to connect fittings are available with a wide selection of configurations and plastic materials suitable for a wide of fluids among other things compressed air, gas, water, food liquids and beverages or chemicals, that serve across many of today's major industrial markets.

1. It Can Rotate 360°
Simple And Dexterous,Convenient installation.The Tube Can Rotate 360° Even After Installation.Not Easy To Leak, Good Sealing Performance, Long Service Life.

2. High Pressure And Not Easy To Trip
The Product Has Undergone Multiple Stress Tests And Can Withstand Up To 145psi Without Tripping.not Easy To Leak, Good Sealing Performance, Long Service Life.

3. High Quality High Strength Plastics
High Strength Plastic Material,not Easy To Deformation, Not Easy To Rust, Fine Surface Treatment, No Burr, Durable.the Release Ring Adopts The Oval Design, Which Is More Convenient For Disassembly.

Dimension & Order Code of Pneumatic Hose Fittings:

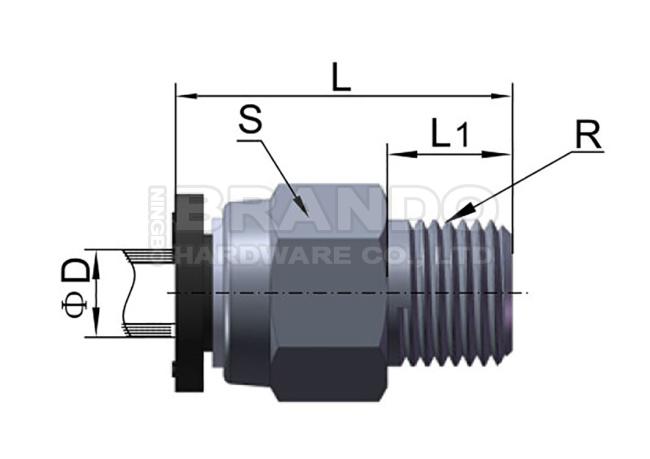

Straight Male Fitting:

Picture	Dimension	Part No.	R	D	L1	L	S	Inner Hex
		PC4	M5X0.8	4	6	22	10	3
			M6X1	4	6	22	10	3
			R1/8"	4	8	21	12	3
			R1/4"	4	9	18	13	3
			R3/8"	4	10	20	17	3
			R1/2"	4	11	22	21	3
		PC6	M5X0.8	6	6	23	12	4
			M6X1	6	6	23	12	4
			R1/8"	6	8	22	12	4
			R1/4"	6	9	22	13	4
			R3/8"	6	10	21	17	4
			R1/2"	6	11	23	21	4
		PC8	R1/8"	8	8	27	14	4
			R1/4"	8	9	24	14	6
			R3/8"	8	10	22	17	6
			R1/2"	8	11	23	21	6
		PC10	R1/8"	10	8	29	27	4
			R1/4"	10	9	30	17	6
			R3/8"	10	10	28	17	8
			R1/2"	10	11	24	21	8
		PC12	R1/8"	12	8	31	19	4
			R1/2"	12	9	32	19	6
			R3/8"	12	10	29	19	10
			R1/2"	12	11	31	21	10

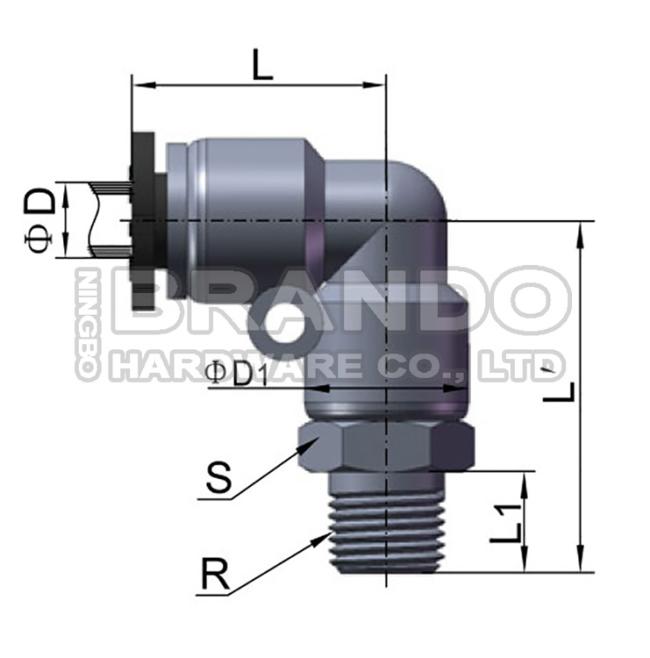

Elbow Push Male Fitting:

Picture	Dimension	Part No.	R	D	D1	L1	L	L'	S
		PL4	M5X0.8	4	11	6	19	25	10
			M6X1	4	11	6	19	25	10
			R1/8"	4	11	8	19	27	12
			R1/4"	4	11	9	19	28	13
			R3/8"	4	11	10	19	30	17
			R1/2"	4	11	11	19	31	21
		PL6	M5X0.8	6	13	6	20	26	12
			M6X1	6	13	6	20	26	12
			R1/8"	6	13	8	20	28	12
			R1/4"	6	13	9	20	29	13
			R3/8"	6	13	10	20	31	17
			R1/2"	6	13	11	20	32	21
		PL8	R1/8"	8	14	8	23	31	14
			R1/4"	8	14	9	23	32	14
			R3/8"	8	14	10	23	33	17
			R1/2"	8	14	11	23	35	21
		PL10	R1/8"	10	18	8	27	35	27
			R1/4"	10	18	9	27	36	17
			R3/8"	10	18	10	27	37	17
			R1/2"	10	18	11	27	39	21
		PL12	R1/8"	12	21	8	30	37	19
			R1/2"	12	21	9	30	38	19
			R3/8"	12	21	10	30	39	19
			R1/2"	12	21	11	30	41	21

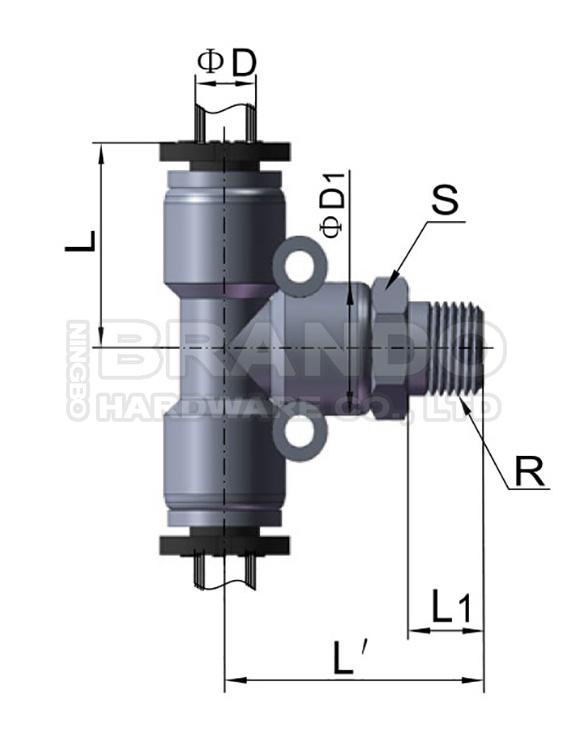

Branch Tee Male Fitting:

Picture	Dimension	Part No.	R	D	D1	L1	L	L'	S
		PT4	M5X0.8	4	11	6	19	25	10
			M6X1	4	11	6	19	25	10
			R1/8"	4	11	8	19	27	12
			R1/4"	4	11	9	19	28	13
			R3/8"	4	11	10	19	30	17
			R1/2"	4	11	11	19	31	21
		PT6	M5X0.8	6	13	6	20	26	12
			M6X1	6	13	6	20	26	12
			R1/8"	6	13	8	20	28	12
			R1/4"	6	13	9	20	29	13
			R3/8"	6	13	10	20	31	17
			R1/2"	6	13	11	20	32	21
		PT8	R1/8"	8	14	8	23	31	14
			R1/4"	8	14	9	23	32	14
			R3/8"	8	14	10	23	33	17
			R1/2"	8	14	11	23	35	21
		PT10	R1/8"	10	18	8	27	35	27
			R1/4"	10	18	9	27	36	17
			R3/8"	10	18	10	27	37	17
			R1/2"	10	18	11	27	39	21
		PT12	R1/8"	12	21	8	30	37	19
			R1/2"	12	21	9	30	38	19
			R3/8"	12	21	10	30	39	19
			R1/2"	12	21	11	30	41	21

List of All Plastic Pneumatic Hose Fittings:

Directions for use!

1. Do Not Exceed 145psi Pressure
2. Do Not Use the Product Outside the Temperature Range
3. Do Not Use in Places with Too Much Dust or Particles
4. Do Not Use Any Medium Other Than Air. the Product is Limited to Air or Vacuum Environment.
5. After Completing the Connection, Please Gently Pull the Tube with 6. Your Hand to Make Sure That It is Completely Connected Without Falling Off.
7. Please Ensure That the Cross Section of the Trachea is Perpendicular to the Trachea
8. Do Not Work Under Additional Load (bending, Twisting, Pulling, Etc.) Except Air Pressure.
9. when Inserting the Tube, Please Insert the Tube into the Bottom Before Use
