Brando's push to connect pneumatic hose fittings (or push-in pneumatic hose fittings) are a quick and convenient method of connecting components in a pneumatic system. Designed for use with polyurethane, polyethylene, and nylon tubing, our composite push-in fittings are available in a variety of sizes to accommodate tubing ranging from 1/8 OD to 1/2 OD. Numerous configurations are available to meet your connection requirements.

Advantages:
* Perfect air tightness thanks to the lip seal
* Safe coupling on any type of tube
* Perfect coupling even in the presence of pipes with diagonal cuts
* Made with virgin material

Dimension & Order Code of Pneumatic Hose Fittings:

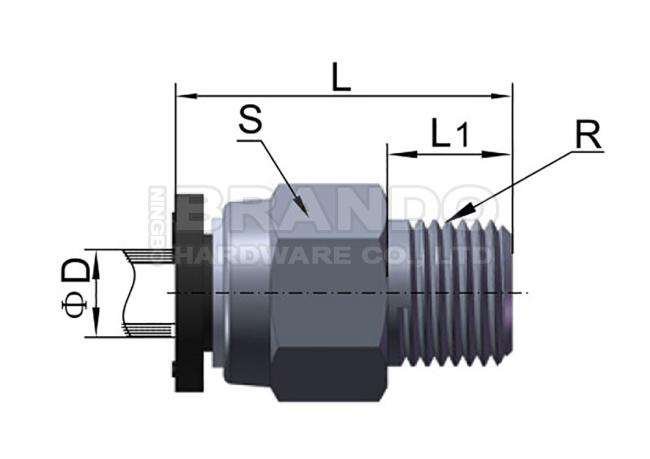

Straight Male Fitting:

Picture	Dimension	Part No.	R	D	L1	L	S	Inner Hex
		PC4	M5X0.8	4	6	22	10	3
			M6X1	4	6	22	10	3
			R1/8"	4	8	21	12	3
			R1/4"	4	9	18	13	3
			R3/8"	4	10	20	17	3
			R1/2"	4	11	22	21	3
		PC6	M5X0.8	6	6	23	12	4
			M6X1	6	6	23	12	4
			R1/8"	6	8	22	12	4
			R1/4"	6	9	22	13	4
			R3/8"	6	10	21	17	4
			R1/2"	6	11	23	21	4
		PC8	R1/8"	8	8	27	14	4
			R1/4"	8	9	24	14	6
			R3/8"	8	10	22	17	6
			R1/2"	8	11	23	21	6
		PC10	R1/8"	10	8	29	27	4
			R1/4"	10	9	30	17	6
			R3/8"	10	10	28	17	8
			R1/2"	10	11	24	21	8
		PC12	R1/8"	12	8	31	19	4
			R1/2"	12	9	32	19	6
			R3/8"	12	10	29	19	10
			R1/2"	12	11	31	21	10

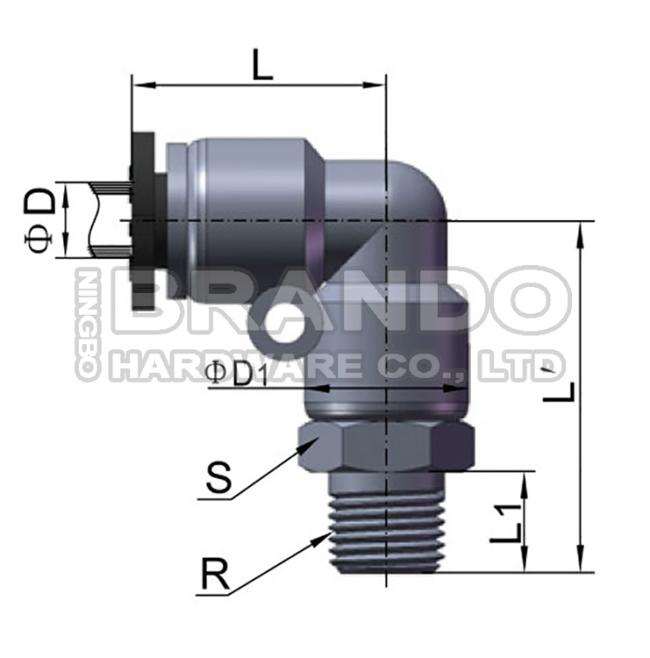

Elbow Push Male Fitting:

Picture	Dimension	Part No.	R	D	D1	L1	L	L'	S
		PL4	M5X0.8	4	11	6	19	25	10
			M6X1	4	11	6	19	25	10
			R1/8"	4	11	8	19	27	12
			R1/4"	4	11	9	19	28	13
			R3/8"	4	11	10	19	30	17
			R1/2"	4	11	11	19	31	21
		PL6	M5X0.8	6	13	6	20	26	12
			M6X1	6	13	6	20	26	12
			R1/8"	6	13	8	20	28	12
			R1/4"	6	13	9	20	29	13
			R3/8"	6	13	10	20	31	17
			R1/2"	6	13	11	20	32	21
		PL8	R1/8"	8	14	8	23	31	14
			R1/4"	8	14	9	23	32	14
			R3/8"	8	14	10	23	33	17
			R1/2"	8	14	11	23	35	21
		PL10	R1/8"	10	18	8	27	35	27
			R1/4"	10	18	9	27	36	17
			R3/8"	10	18	10	27	37	17
			R1/2"	10	18	11	27	39	21
		PL12	R1/8"	12	21	8	30	37	19
			R1/2"	12	21	9	30	38	19
			R3/8"	12	21	10	30	39	19
			R1/2"	12	21	11	30	41	21

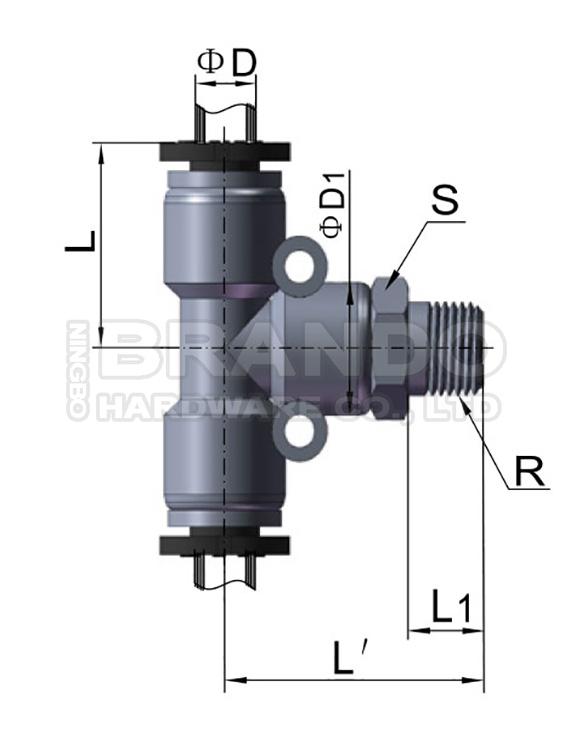

Branch Tee Male Fitting:

Picture	Dimension	Part No.	R	D	D1	L1	L	L'	S
		PT4	M5X0.8	4	11	6	19	25	10
			M6X1	4	11	6	19	25	10
			R1/8"	4	11	8	19	27	12
			R1/4"	4	11	9	19	28	13
			R3/8"	4	11	10	19	30	17
			R1/2"	4	11	11	19	31	21
		PT6	M5X0.8	6	13	6	20	26	12
			M6X1	6	13	6	20	26	12
			R1/8"	6	13	8	20	28	12
			R1/4"	6	13	9	20	29	13
			R3/8"	6	13	10	20	31	17
			R1/2"	6	13	11	20	32	21
		PT8	R1/8"	8	14	8	23	31	14
			R1/4"	8	14	9	23	32	14
			R3/8"	8	14	10	23	33	17
			R1/2"	8	14	11	23	35	21
		PT10	R1/8"	10	18	8	27	35	27
			R1/4"	10	18	9	27	36	17
			R3/8"	10	18	10	27	37	17
			R1/2"	10	18	11	27	39	21
		PT12	R1/8"	12	21	8	30	37	19
			R1/2"	12	21	9	30	38	19
			R3/8"	12	21	10	30	39	19
			R1/2"	12	21	11	30	41	21

List of All Plastic Pneumatic Hose Fittings:

Choosing the Right Fittings for Your Pneumatic System:

Fittings help control the force and directional flow of compressed gas or air used in pneumatic systems. One of the first considerations in choosing a connector is the type of vessel that you will be connecting to such as the flexibility of the hose or tube, as well as the inner diameter (ID) and outer diameter (OD) of the vessel to ensure an adequate seal and secure connection. Fitting material choice for your pneumatic connector is also important, including gas compatibility or resistance to heat or corrosion.

Other considerations in choosing the right pneumatic system connector include:
1. Type of connection and the function it performs
2. Operational pressure of the pneumatic system
3. Operating temperature range
4. P.S.I. requirements for your application
5. Amount of vibration produced by the pneumatic system
6. Thread type of the receiving fitting
