SCG353A044 1'' Inch Integral Pilot Threaded Body Pulse Jet Valve

When the dust is removed correctly from the dust collector, the system removes dust from its assigned environment and has a normal bag life. When the dust is not removed efficiently, the dust collector does not always continue to remove dust effectively from its assigned environment, and the bag life can be significantly shortened. Dust collection system designs specify the compressed air inlet pressure to the manifold and pulse valves necessary for effective dust removal. Based on this pressure, the pulse valve sends a given volume or weight of air to the bag at a predetermined velocity to strike and clear the dust. The actual amount and weight of the air is dependent upon the pulse nozzle being fed compressed air at a pre-determined minimum and steady pressure.

The reverse flow filter dust collector utilizes cartridge elements that are cleaned by “back flushing” with compressed air. This momentary airflow reversal is induced by a short burst of compressed air similar to pulse-jet bag dust collectors. The compressed air is released from the storage receiver by a fast-acting, high-flow diaphragm valve. This pulse of air dislodges the accumulated dust from the element. The dust then dumps into the hopper or collector drawers.

Technical Data of ASCO Pulse Jet Valve:

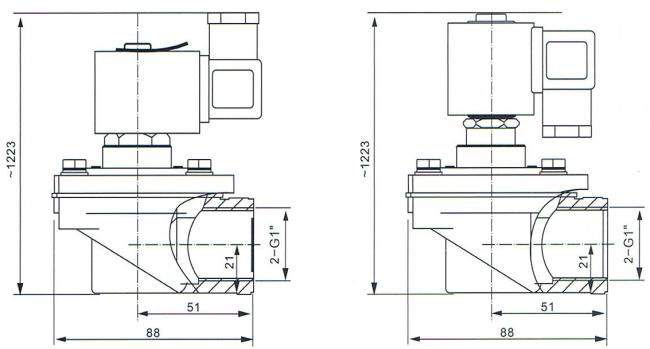

Main Dimension:

353 Series Pulse Jet Valve For Dust Collector System:

Focus on your demands, Offer you best solution:
